Omron CQM1 Operation Manual page 249

Specifications

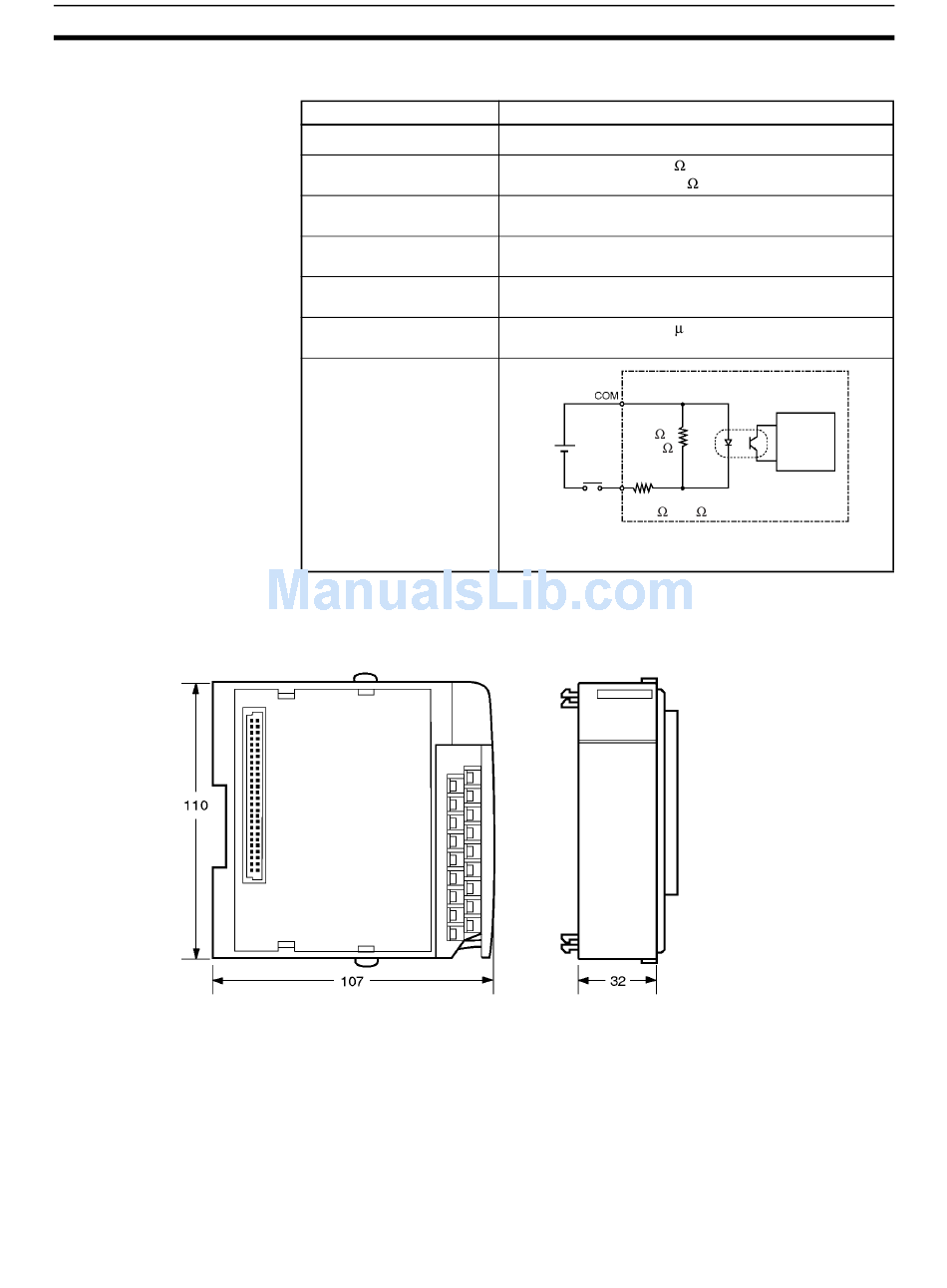

External Control Input Specifications
Note The ON/OFF response time is the time required for the Unit's CPU to detect input turned ON or OFF.
Dimensions
230
Item
Input voltage
Input impedance
Input current
ON voltage
OFF voltage
ON/OFF response time
(see note)
Circuit configuration
Specification
+10%
24 VDC /
–15%
TIMING/GATE: 2 k
Other control output: 2.2 k
TIMING/GATE: 9.2 mA TYP.
Other control output: 10 mA TYP. (24 VDC)
TIMING/GATE: 16.3 VDC min.
Other control output: 17.1 VDC min.
TIMING/GATE: 3.8 VDC max.
Other control output: 3.6 VDC max.
TIMING/GATE: 50 s TYP.
Other control output: 4 ms TYP.
820
24 VDC
(1.2 k )
2.2 (2 k )
Figures in parentheses are values for
TIMING input and GATE input.
Appendix A
Internal
circuitry
(Unit: mm)
