Commands and Responses

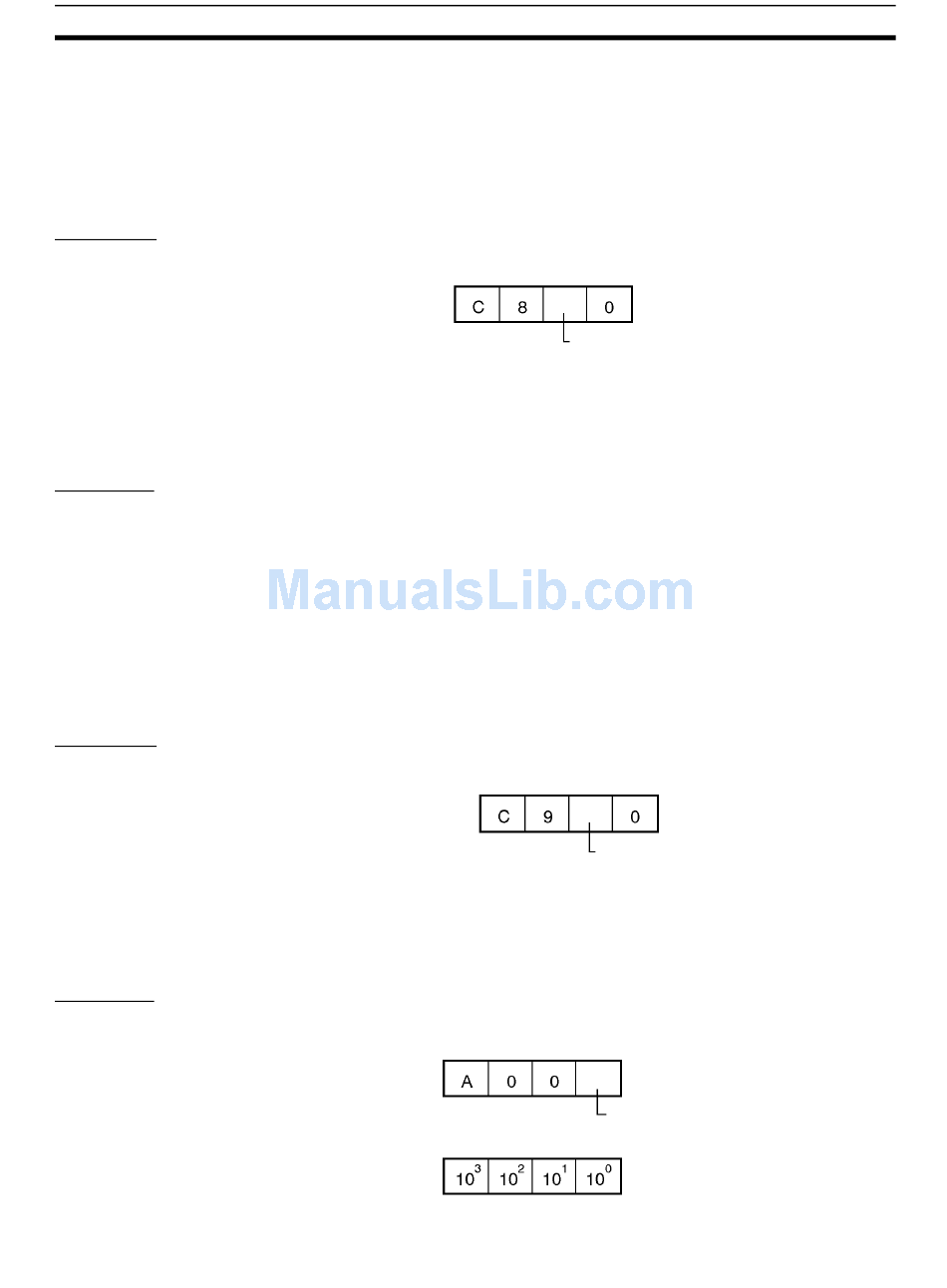

7-3-9

Set Value Teach

Command
Command Code
Parameter
Response

7-3-10 Set Value Read

Command
Command Code
Parameter
Response
This command can be used only when the timing hold in operation mode A is
set to normal.
This command is used to execute set value teaching. When set value teach-
ing is executed, the present input value can be used as the HH, H, L or LL set
value.
Parameters are not used with this command.
If the wrong command code is set to the output word, the following error code
will be set to the input word.
E000: This error code will be set to the input word if a nonexisting command
code is used.
E002: Teaching command execution error
E003: This error code will be set to the input word if the mode designation for
this command is not correct.
This command is used to read a set value.
Parameters are not used with this command.
If the output word is set to the correct command code, the sign of the set value
and the set value will be set to the input word alternately in the following for-
mat.
Teaching set value
0: LL
1: L
2: H
3: HH
Set value
0: LL
1: L
2: H
3: HH
Sign
0: Positive
F: Negative
Value
Range: 0 to 9999
Section 7-3
