Omron CQM1 Operation Manual page 177

Operation without CQM1-TU001 Remote Console
Teaching with a Sensing
Object
1,2,3...
158
3. Press the teaching button. The teaching indicator (orange) will be lit.
4. Set the mode selector to RUN to complete the sensitivity setting on the
E2C-MA11.
The ON point will be automatically set at the maximum value of the stable
sensing distance. If teaching is unsuccessful, the stability operation indica-
tor will flash. In this case make sure that the optical fiber cable of the sen-
sor is connected securely and that there is no sensing object, and then
repeat from step 3.

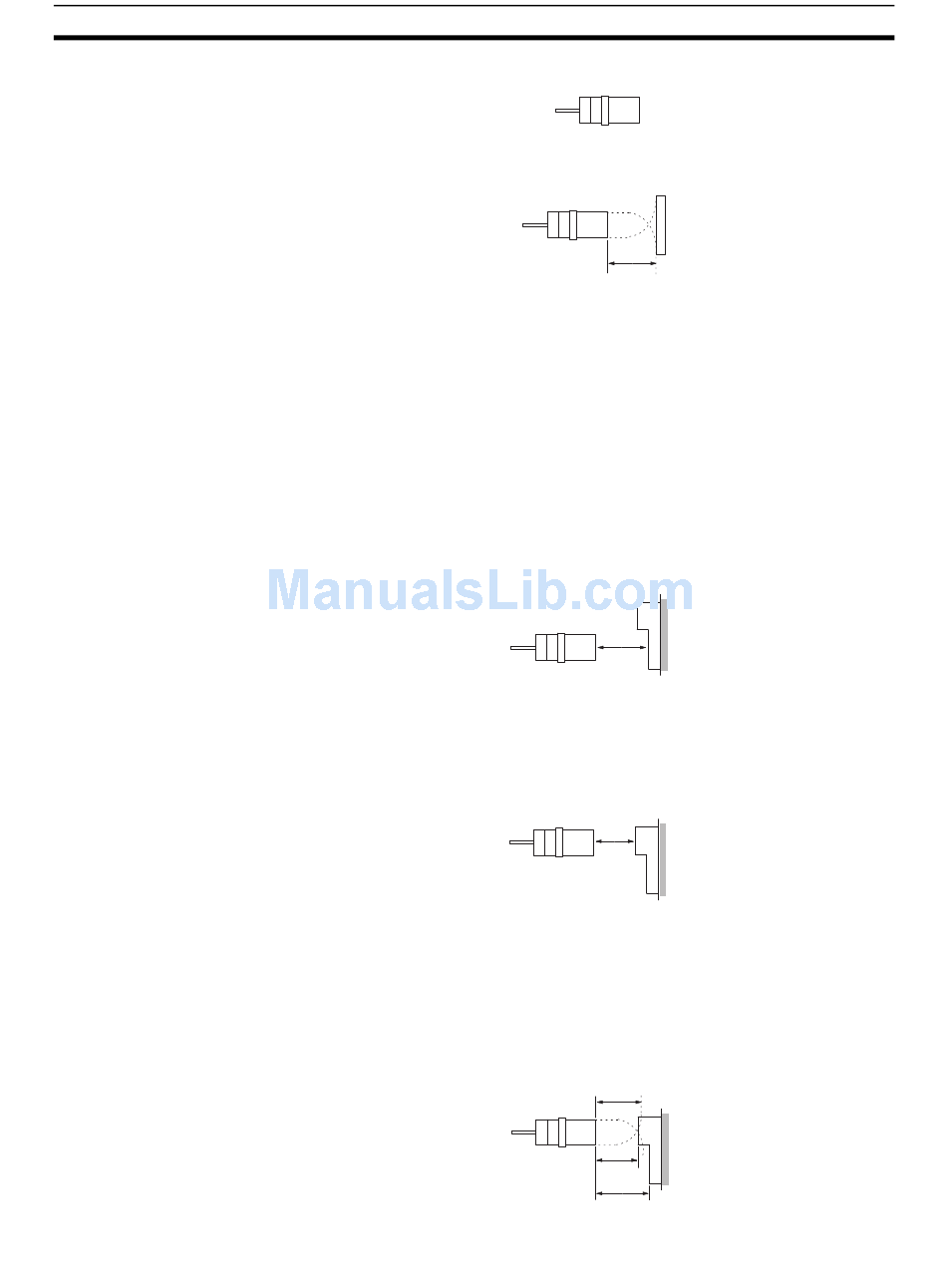

Teaching with a sensing object is recommended for sensing level differences
or double-sheet detection.
1. Place the sensor head in the sensing range of the sensor.
2. Set the mode selector to SET.
3. Place the object at the sensing position at which the desired output will be
OFF and press the teaching button.
The teaching indicator will turn orange.
4. Move the object to the position where you want to turn ON the output and
press the teaching button. If teaching is successful, the teaching indicator
will turn from orange to green.
5. Set the mode selector to RUN to complete the sensitivity setting on the
E3X-MA11. The ON point will be set midway between the points set in
steps 3. and 4. If teaching is unsuccessful, the teaching indicator (orange)
will flash, in which case check that the sensor cable is connected, change
the position of the object and the sensing distance that have been set, and
repeat from step 3.
l
ON point
l1
Desired output at l 1 : OFF
l2
Desired output at l 2 : ON
ON point
l2
l1
Section 4-1
