Optical Fiber Photoelectric Module - Omron CQM1 Operation Manual

Nomenclature
2-1-3

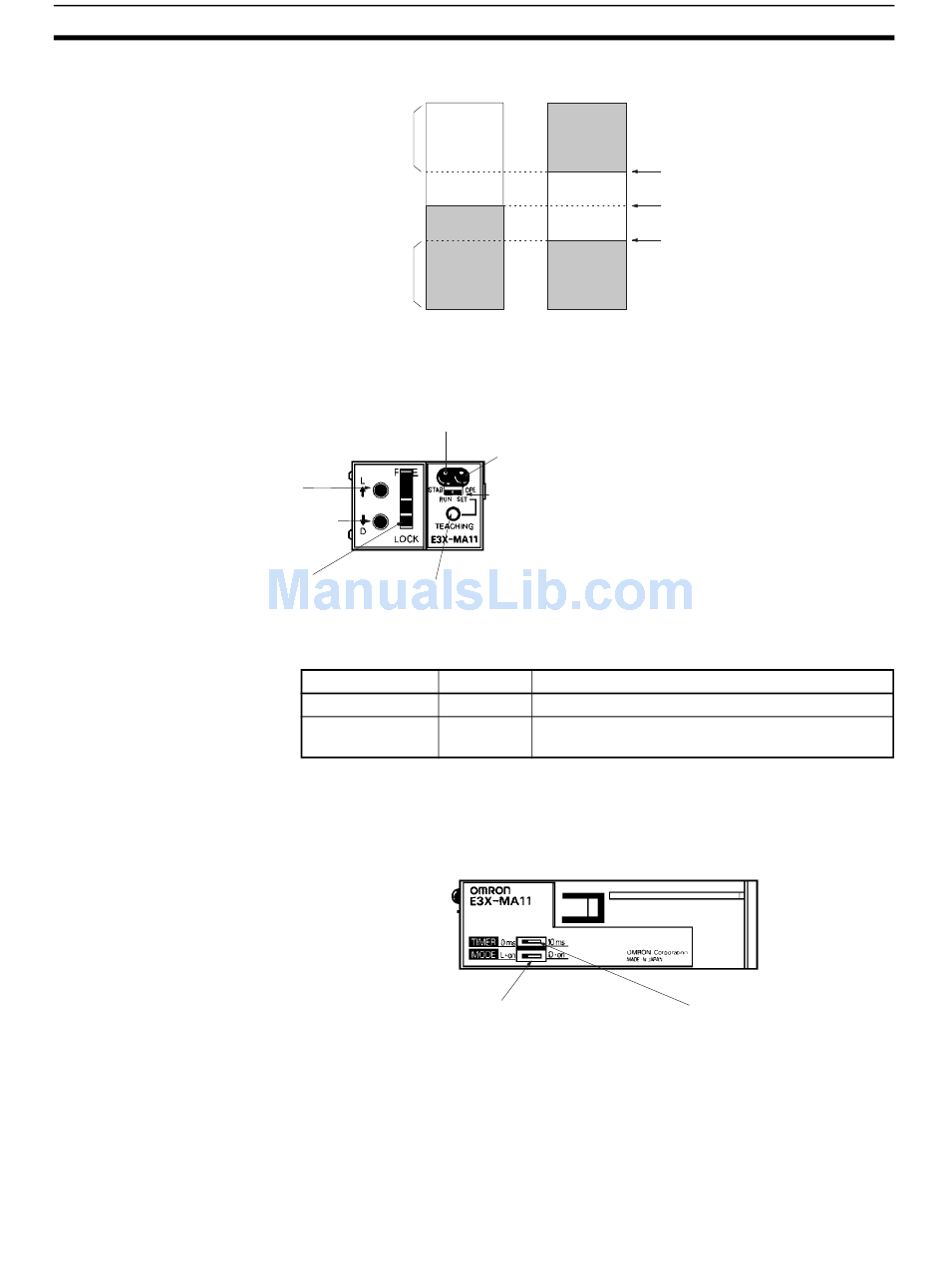

Optical Fiber Photoelectric Module

E3X-MA11
Front View
Fiber insertion mouth (light emitting terminal)
(Refer to 3-4-1 E3X-MA11 Optical Fiber
Photoelectric Module for details.)
Fiber insertion mouth (light reception terminal)
(Refer to 3-4-1 E3X-MA11 Optical Fiber
Photoelectric Module for details.)
Indicators
140
Stable non-
sensing zone
Stable sens-
ing zone
Stability operation indicator (green)
Fiber lock lever
Teaching button
FREE: Fiber is released.
LOCK: Fiber is locked.
Name
OPE
STAB
Note When the mode selector is set to SET, the operation indicator and stability
operation indicator are used to monitor teaching. Refer to 2-2 Switch Settings
for details.
Side View
Operation indica- Stability operation
tor (orange) indicator
OFF ON
OFF
ON ON
Operation
(orange)
Mode selector (SET for teaching and RUN for normal operation.)
(Refer to 2-2 Switch Settings for details.)
Color
Orange Lit when the control output is ON.
Green Lit during stable light ON or dark ON, which can be
selected with the operation mode selector.
Operation mode selector
L • on: Light ON
D • on: Dark ON
(Refer to 2-2 Switch
Settings for details.)
Section 2-1
x
Setting distance
Setting distance
x
Setting distance
indicator
Function
Timer selector
0 ms: No timer
10 ms: OFF-delay timer
(Refer to 2-2 Switch
Settings for details.)
approx. 1.07
approx. 0.93
