Operation Mode A Read - Omron CQM1 Operation Manual

Commands and Responses

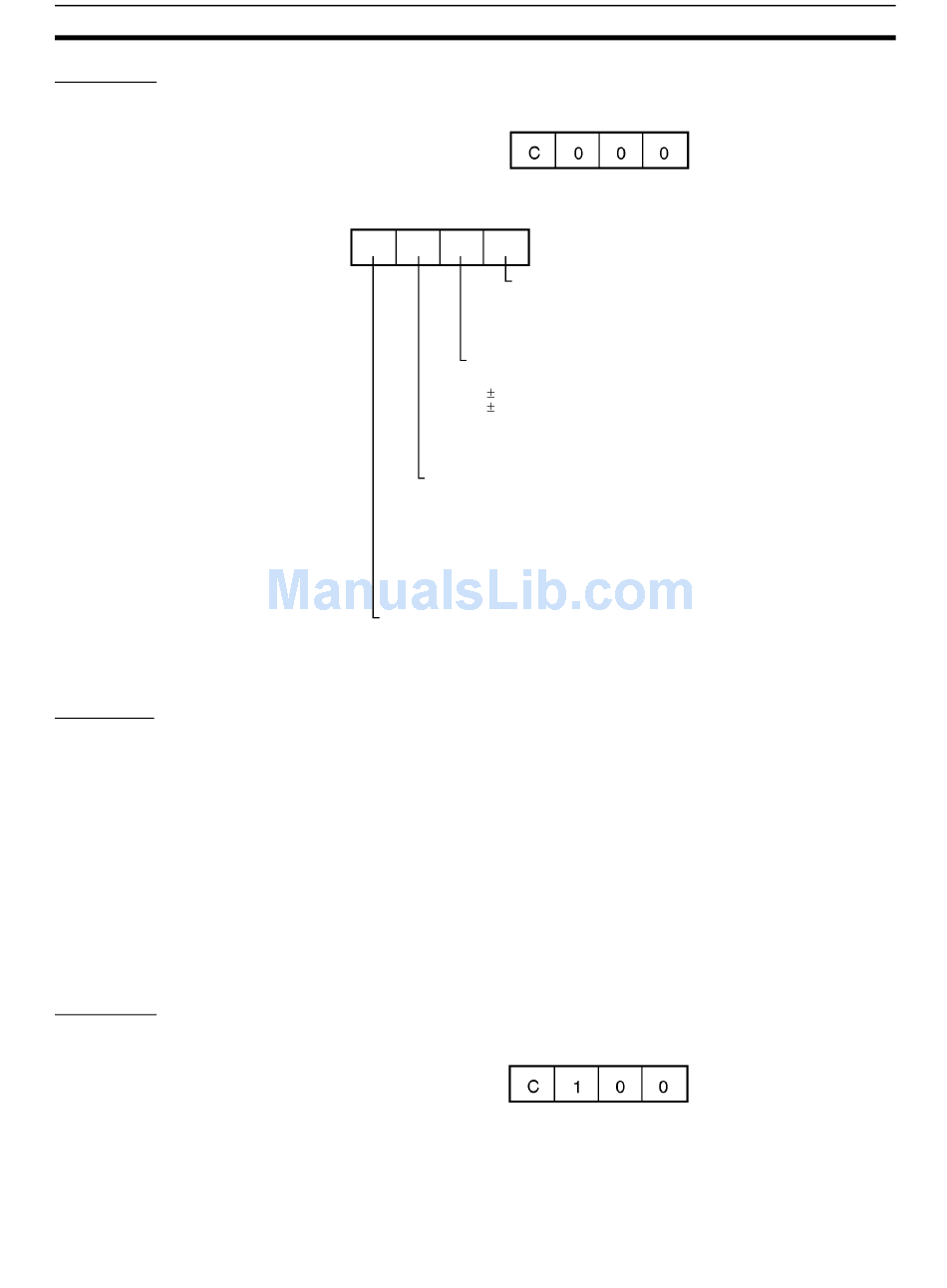

Command
Command Code
Parameter
Response
7-3-2

Operation Mode A Read

Command
Command Code
Parameter
Input type
0: Unchanged
1: 9.999 V (factory-set)
2: 5 V
3: 1 to 5 V
4: 4 to 20 mA
Timing hold
0: Unchanged
1: Normal (factory-set)
2: Sampling hold
3: Maximum hold
4: Minimum hold
5: Peak-to-peak hold
Data input
0: Unchanged
1: Measurement mode (factory-set)
2: Comparison mode
If the correct command code or parameter is set to the output word, the same
command code or parameter will be set to the input word.
If the wrong command code or parameter is set to the output word, one of the
following error codes will be set to the input word.
E000: This error code will be set to the input word if a nonexisting command
code is used.
E001: This error code will be set to the input word if the parameter is not
within the range covered by the Unit.
This command is used to read the data that has been input in operation mode
A.
Parameters are not used with this command.
Monitor output
0: Unchanged
1: Scaled conversion data monitor mode (factory-set)
2: Set data D/A output monitor mode
Section 7-3
219
