E3C-Ma11 Photoelectric Module; E2C-Ma11 Proximity Sensor Module - Omron CQM1 Operation Manual

Connection of a Variety of Sensors
3-4-2

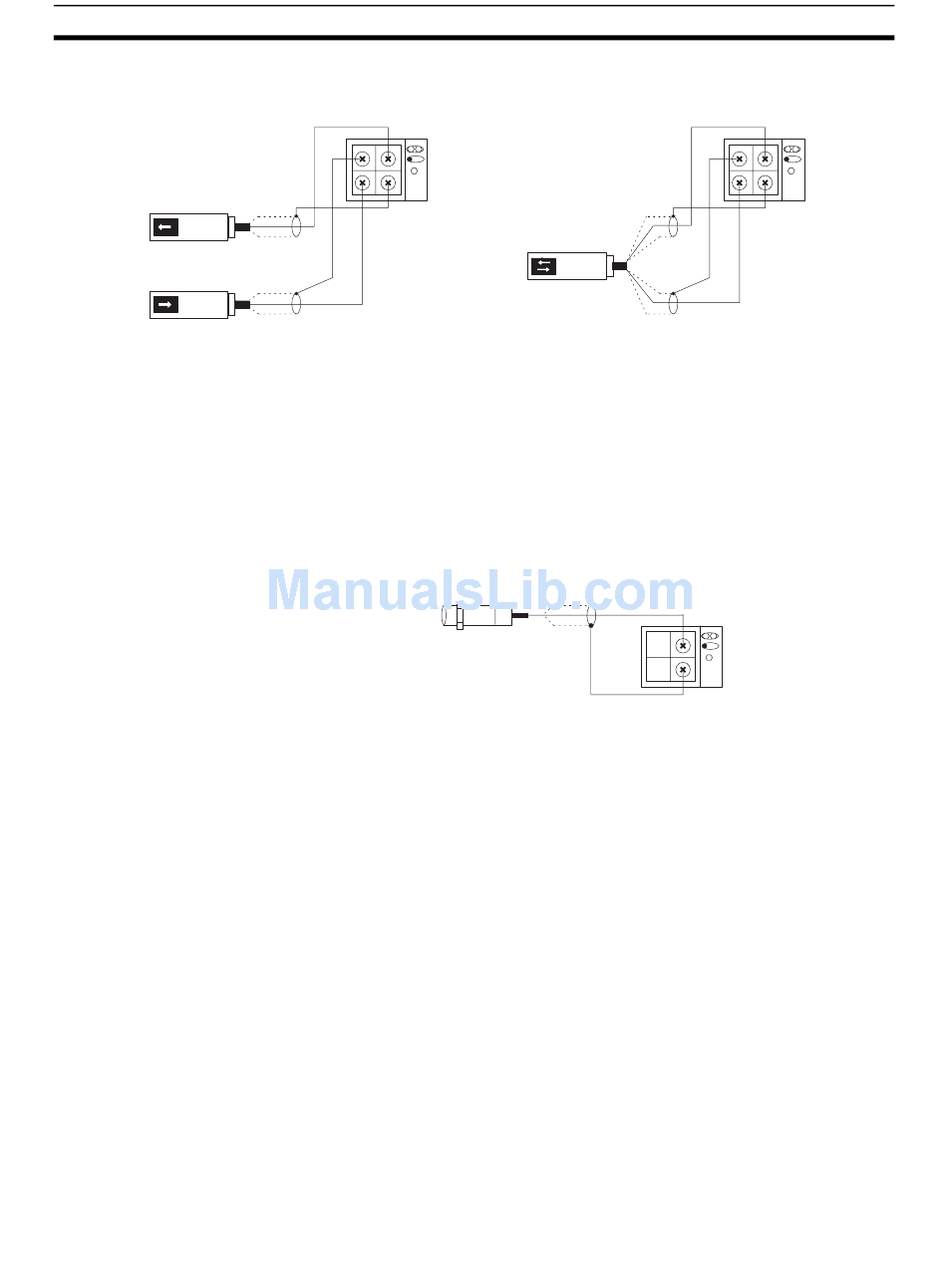

E3C-MA11 Photoelectric Module

Connection
Thru-beam model
3-4-3

E2C-MA11 Proximity Sensor Module

Connection
152
3
1
Red
Shield
4
2
Shield
White
Note 1. Strip the vinyl insulation off all the connection cords 12 mm from the ends
for the receiver and projector terminals and expose each conductor 6 mm
from the end of the conductor. Due to the small terminals, be careful not to
short the wires when wiring.
2. The length of the cable connected to the terminals of the E3C-MA11 must
be 10 m maximum without any extension terminals.
Reflective model
Proximity sensor
Shield
Section 3-4
3
1
Red
Shield
4
2
White
Shield
3
4
E2C-MA11 Prox-
imity Module
