Nomenclature
2-1-4

Photoelectric Module

E3C-MA11

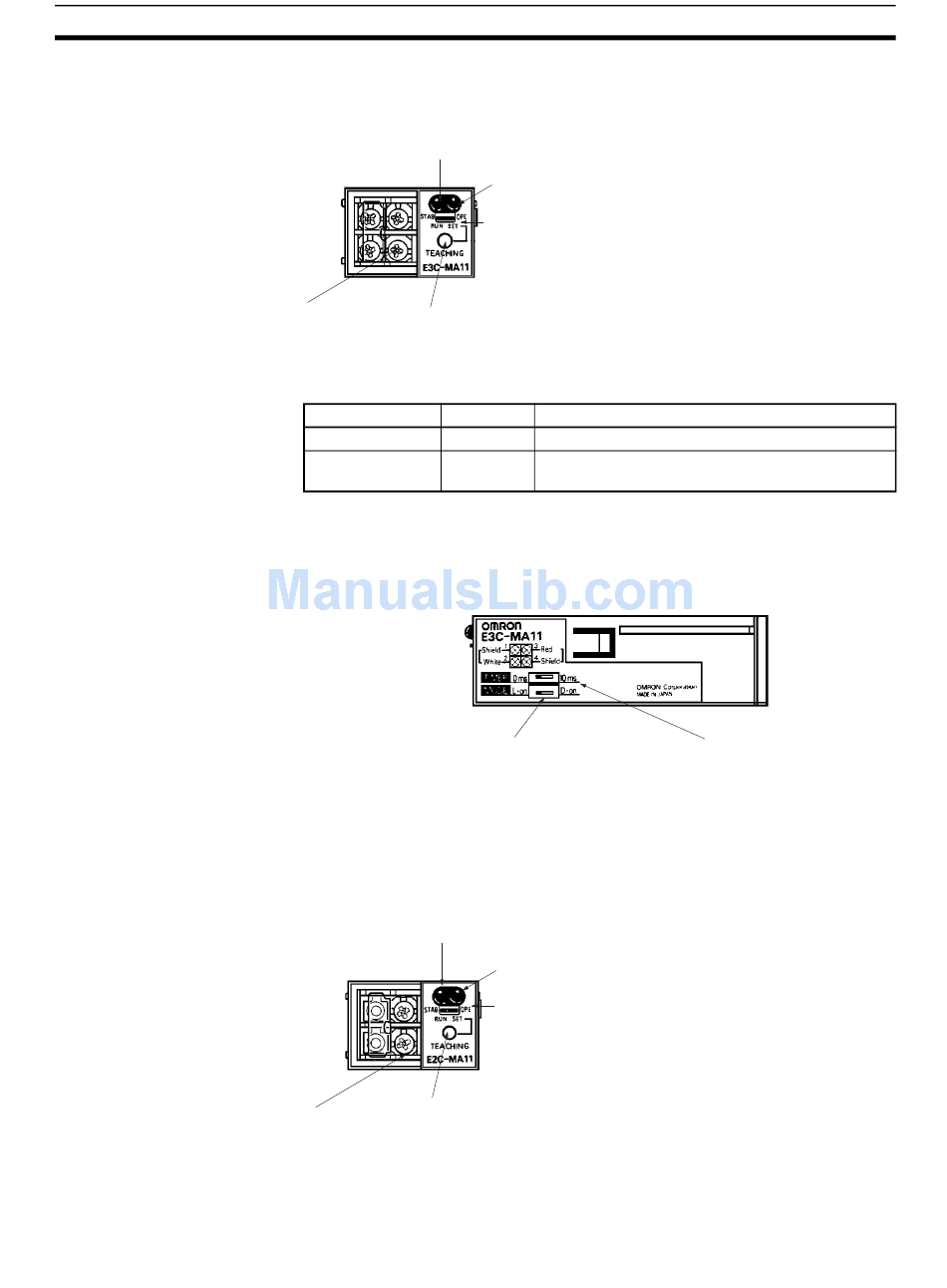

Front View
Sensor code connection terminals
(Refer to 3-4-2 E3C-MA11 Photoelectric Module for
details.)
Indicators
2-1-5

Proximity Sensor Module

E2C-MA11
Front View
Sensor code connection terminals
(Refer to 3-4-3 E2C-MA11 Proximity Sensor Module for
details.)
Stability operation indicator (green)
Teaching button
Name
OPE
STAB
Note When the mode selector is set to SET, the operation indicator and stability
operation indicator are used to monitor teaching. Refer to 2-2 Switch Settings
for details.
Side View
Stability operation indicator (green)
Teaching button
Operation indicator
(orange)
Mode selector (SET for teaching and RUN for normal operation.)
(Refer to 2-2 Switch Settings for details.)
Color
Orange Lit when the control output is ON.
Green Lit during stable light ON or dark ON, which can be
selected with the operation mode selector.
Operation mode selector
L • on:
Light ON
D • on:
Dark ON
(Refer to 2-2 Switch
Settings for details.)
Operation indicator
(orange)
Mode selector (SET for teaching and RUN for normal operation)
(Refer to 2-2-2 E2C-MA11 Proximity Sensor Module for
details.)
Section 2-1
Function
Timer selector
0 ms: No timer
10 ms: OFF-delay timer
(Refer to 2-2 Switch
Settings for details.)
