Output a test pattern
Configure the output test pattern as follows:
1. Click the OUTPUT tab (see figure 50,
6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6

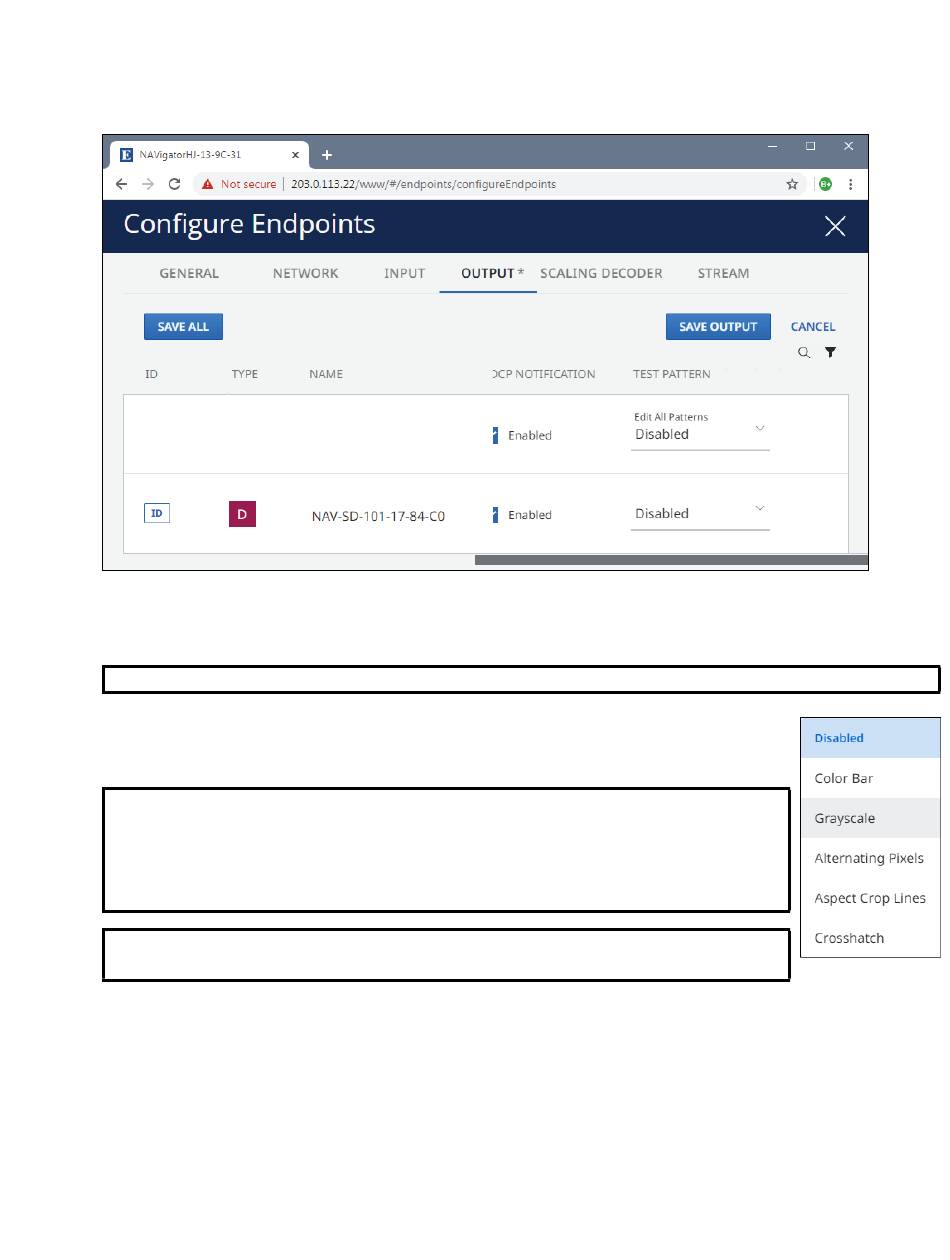

Figure 50. Configure Test Pattern
2. If necessary, click and drag the horizontal scroll bar (
list.
NOTE: The Name field is locked in position and does not move.
3. Click the Test Pattern drop-down list for all outputs (
endpoints ( ) to select among the available test patterns (shown at right) or no test
4
pattern (Disabled).
NOTE: Test patterns are for debug and setup purposes. They let you validate a video
signal path in the system and setup the displays connected to the outputs.
• Most encoders can output color bar and grayscale test patterns.
• Most decoders can output color bar, grayscale, alternating pixels, aspect crop
lines, and crosshatch test patterns.
TIP:
After you make a change in step 3, an asterisk (
indicate that there are unsaved changes.
4. Click SAVE OUTPUT (
5. Click X ( ) to close the Configuration Endpoints page or select a different tab to change other settings.
