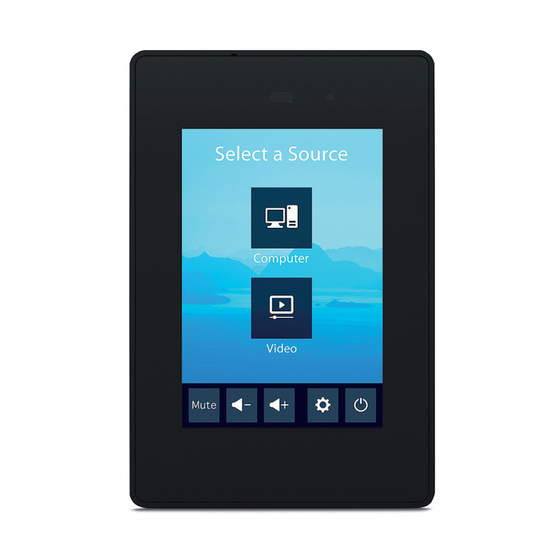

Extron electronics TouchLink TLP Pro 300M User Manual
Touchpanel control systems
Hide thumbs
Also See for TouchLink TLP Pro 300M:
- User manual (31 pages) ,
- User manual (40 pages) ,
- User manual (53 pages)
Subscribe to Our Youtube Channel
Related Manuals for Extron electronics TouchLink TLP Pro 300M
Summary of Contents for Extron electronics TouchLink TLP Pro 300M

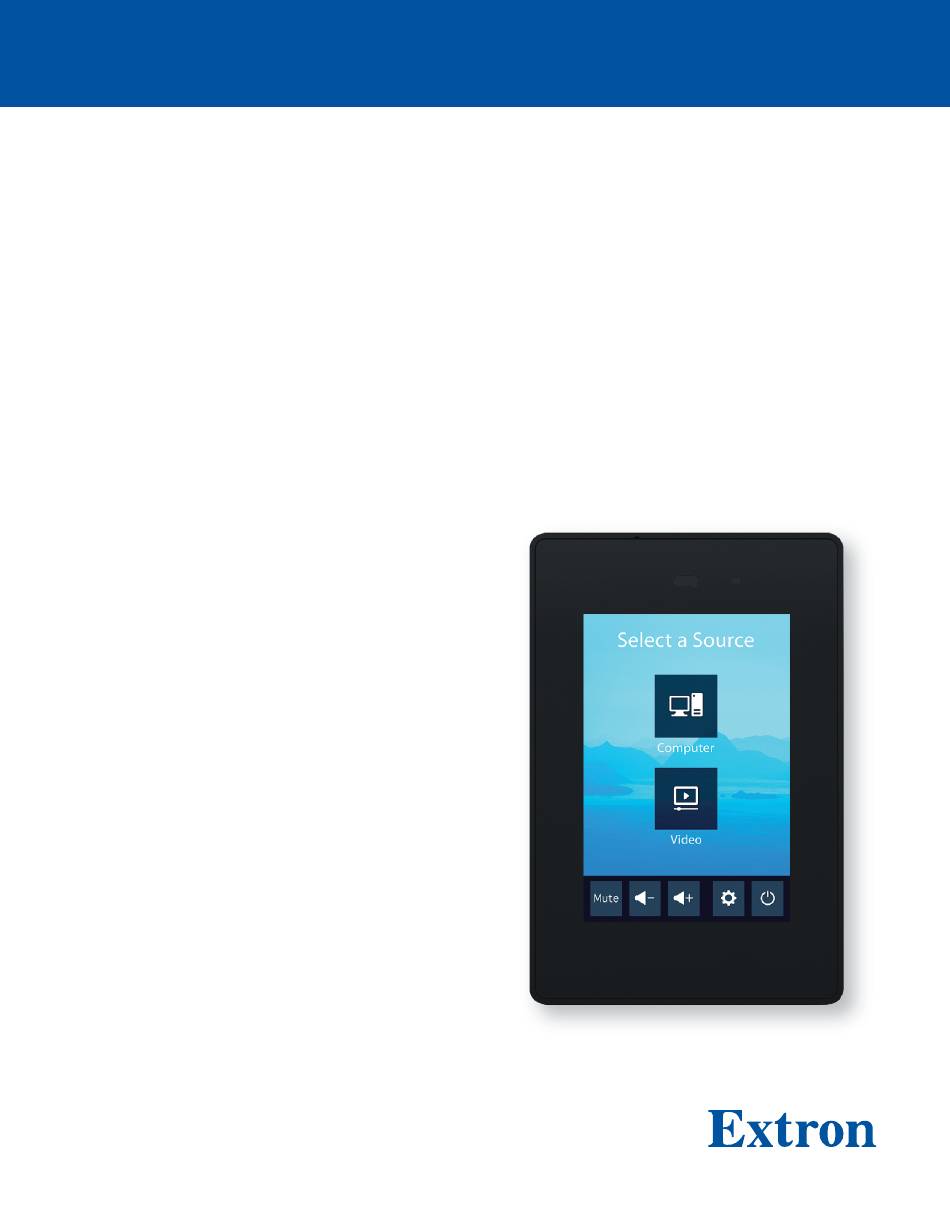

- Page 1 User Guide TouchLink ® TLP Pro 300M TouchLink Pro Touchpanel Control Systems 68-3146-01 Rev. A 04 20...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad This symbol, , when used on the product, is intended to WARNING avvertire l’utente della presenza di tensione non isolata pericolosa alert the user of the presence of uninsulated dangerous voltage within the all’interno del contenitore del prodotto che può...
- Page 3 The following registered trademarks( ), registered service marks( ), and trademarks( ) are the property of RGB Systems, Inc. or ® Extron Electronics (see the current list of trademarks on the Terms of Use page at www.extron.com): Registered Trademarks ® Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, FlexOS, Glitch Free, Global Configurator, Global Scripter, GlobalViewer, Hideaway, HyperLane, IP Intercom, IP Link, Key Minder, LinkLicense, LockIt, MediaLink, MediaPort, NAV,...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
- Page 5 Conventions Used in this Guide Notifications In this user guide, the following are used: Potential risk of severe injury or death. WARNING: AVERTISSEMENT : Risque potentiel de blessure grave ou de mort. CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure.
-
Page 7: Table Of Contents
Contents Introduction Configuration Software ............1 ........19 About the TLP Pro 300M ........1 Downloading and Installing Software ....19 Features ............. 1 Downloading software from Application Diagram ........... 2 the product page ......... 20 Requirements ............. 2 Downloading software from Software ............ - Page 8 TLP Pro 300M • Contents viii...
-
Page 9: Introduction
Introduction This guide describes the function, installation, and operation of the TLP Pro 300M TouchLink Pro touchpanel. Unless otherwise stated, the terms “TLP Pro” and “touchpanel” refer to the TLP Pro 300M. This section contains the following information: • About the TLP Pro 300M •... -
Page 10: Application Diagram
Fully customizable using Extron control system software — using GUI Designer, Global Configurator Plus and Professional, and Toolbelt. mounts in a one-gang junction box, on a wall, or in a Multiple mounting options — lectern . Application Diagram Figure 1. TLP Pro 300M Application Diagram Requirements Software... -
Page 11: Installation Overview
Installation Overview Before starting, download and install the latest versions of the following software: GUI Designer — for designing layouts for Extron TouchLink Pro touchpanels and … third party touch interfaces. Global Configurator Plus and Professional — for setting up and configuring the …... - Page 12 Set up the Touchpanels for Network Communication: Connect the PC that you will use for setup, the control processor, and the touchpanel … to the same Ethernet subnetwork. ATTENTION: • Do not power on the touchpanels or control processors until you have read Attention on page 8.
-
Page 13: Panel Features
Panel Features This section describes: • TLP Pro 300M Front Panel Features • TLP Pro 300M Rear Panel Features TLP Pro 300M Front Panel Features B B B C C C A A A Figure 2. TLP Pro 300M Front Panel LCD touchscreen —... -
Page 14: Tlp Pro 300M Rear Panel Features
TLP Pro 300M Rear Panel Features A A A E E E B B B C C C F F F D D D G G G H H H Figure 3. TLP Pro 300M Rear Panel Features Status light — The lights can blink or remain lit steadily and they can light red or green. The lights can be configured (using Global Configurator) or programmed (using Global Scripter) to provide feedback information about the system using these variables. -
Page 15: Connecting A Power Injector
Connecting a Power Injector Figure 4 shows the Extron XTP PI 100. Your power injector may look different. Connect a straight-through Ethernet cable from the power injector to a switch or router (figure 4, ). This cable carries network information from the switch or router to the power supply. - Page 16 ATTENTION: • The TLP Pro 300M is intended for connection to a Power over Ethernet circuit for intra-building use only and are considered to be part of a Network Environment 0 per IEC TR62101. • Le TLP Pro 300M est conçu pour une connexion à un circuit PoE pour une utilisation intérieure seulement et est considéré...
-
Page 17: Setup Menu
Setup Menu When the TLP Pro 300M is powered on, the currently loaded project is displayed. To access the setup menu, press the Menu button (see figure , on page 6). There are six available screens: • Status • Network •... -
Page 18: Status
Status Status EXIT This screen opens by default. To access the Status screen from any other part of the Setup menu, press the Menu icon in the top left Device Information corner and then press the Status button. Model TLP Pro 300M Figure 6 shows the entire Status Part Number screen. -
Page 19: Network
Network The image below shows the entire Network screen. Because of size of the touchscreen, you can only see part of the screen at any time. Scroll up or down within the screen to navigate. NOTE: The Cancel and Save buttons float so that they always appear at the bottom of the screen, even when only the top part of the screen is displayed. - Page 20 If DHCP is on, press the arrow next to the Host Name button to edit the host name. The Host Name dialog box opens: Hostname TLP-Pro-300M-AB-CD-EF q w e r t y u i o p a s d f g h j k l Ç...
- Page 21 If DHCP is disabled, set the unit IP address, subnet mask, gateway address, and DNS server address. Press the arrow (>) next to the address that you are editing. The Address Dialog Box opens: IP Address 192.168.254.251 SUBMIT Figure 9. Address Dialog Box Enter the 3-digit value for an octet NOTES:...
-
Page 22: Display
Display Display EXIT Resolution 320x480 Sleep Timer Auto Brightness Wake On Motion Figure 10. Display Screen The Display screen allows you to set the Sleep Timer, Auto Brightness, and Wake on Motion. • Resolution (320x480) is read-only. • Sleep Timer — determines how long the panel will be inactive before it enters sleep mode. -
Page 23: Audio
Audio Audio EXIT Master Click Sound Figure 11. Audio Screen On the Audio screen, use the fader controls to adjust the Master, Click, and Sound volume settings. • Master volume sets the maximum volume for all the other sound volume settings. For example, if the Master volume is set to 80 (80 percent of maximum), even when the Sound volume is set to 100, it is equivalent to only 80 percent of maximum. -
Page 24: Project Information
Project Information Project Info EXIT System Project Name GCPro Project.gcpro Version 1.0.2.0 Creation Date 11/12/19 10:23:04 AM Revision Date 01/18/20 12:30:00 PM GUI Project Name Project1.gdl Version 2.03.4.002 Creation Date 11/12/19 10:35:27 AM Revision Date 01/18/20 12:41:51 PM Resolution 320x480 Figure 13. -
Page 25: Advanced
Advanced Advanced EXIT System Info Primary Controller Address 192.168.254.250 System ID 6661 Storage Storage Used 1 MB Storage Size 4313 MB Menu PIN Edit Figure 14. Advanced Screen The first two sections, System Info and Project Usage, provide read-only informaton. System Info Primary Controller Address —... - Page 26 Set the PIN switch to on to enable PIN use. The Enter New PIN numeric keypad opens: Enter New PIN SUBMIT Figure 15. Numeric Keypad for Setting PIN Enter the PIN. The PIN is a 4-digit number. Each digit can have any value from 0-9. As the digits are entered, four dots appear below the title.
-
Page 27: Configuration Software
Configuration Software This section of the user guide provides information about: • Downloading and Installing Software • Using the Software • TLP Pro 300M Web Page • Updating Firmware Downloading and Installing Software Toolbelt, GUI Designer, Global Configurator Plus and Professional, and Global Scripter can be downloaded from www.extron.com. -
Page 28: Downloading Software From The Product Page
The Download Center Software page opens: Figure 17. Selecting Software to Download The software may be shown in the panels at the top of the page. Figure 17 ( ) shows Global Configurator Plus and Professional. You may need to use the left (<) or right (>) arrows ( ) to find the software. -
Page 29: Downloading Software From The Alphabet Menu
Downloading software from the alphabet menu Clicking on the initial letter of the software product (see figure , on the previous page) generates a list of software products with that initial letter. Scroll down to the product you wish to download. Figure 19 shows the panel for Toolbelt. Figure 19. -
Page 30: Tlp Pro 300M Web Page
TLP Pro 300M Web Page To access the touchpanel default Web pages, enter the IP address of the unit into the Web browser of a PC connected to the same subnet. The sign-in screen opens: Figure 20. TLP Pro 300M Sign-in Screen Enter the Username (admin or user) and Password. -
Page 31: Updating Firmware
Updating Firmware Using the You can use this page to upload firmware to the unit (see Touchpanel Web Page on the next page). Click License Information to view details about third-party packages and associated licensing (and see the Pro Series Control Product Network Ports and Licenses Guide, which is available at www.extron.com). -
Page 32: Updating Firmware Using The Touchpanel Web Page
The Download Firmware page opens: Figure 23. Selecting Firmware to Download. Click the letter T from the list of letters ( Scroll down the page until you find the firmware for the TLP Pro 300M. NOTE: Your product will appear in this list only if a new version of the firmware has been released since the product was first introduced. -
Page 33: Mounting
Mounting The following instructions are provided for experienced installers to mount the TLP Pro 300M touchpanel. The touchpanel can be wall-mounted, either using a standard 1-gang, UL-listed electrical box (must be purchased separately), or directly into drywall or furniture. Suitable mounting accessories can be found at www.extron.com. -
Page 34: Mounting With A Ul-Listed Electrical Box
Mounting With a UL-listed Electrical Box The UL-listed electrical junction box must be purchased separately. Wall Electrical Junction Metal Mounting Plate I C A TLP Pro 300M #6-32 x ¾" pan-head screws Figure 25. Mounting the TLP Pro 300M to a UL-listed Electrical Box Cut a hole for the junction box at the required location. -
Page 35: Mounting To Drywall Or Furniture
Mounting to Drywall or Furniture Figure 26 shows how to mount the TLP Pro 300M in drywall. Follow the same procedure to mount into furniture. Toothed Clamping Plate Wall 2 2 2 Metal Mounting 1 1 1 Plate I C A TLP Pro 300M #6-32 x 1½"... -
Page 36: Reference Material
Reference Material This section contains information about: • Network Port Requirements • Reset Modes • Licensed Third-Party Software Used in the Touchpanels Network Port Requirements and Licensed Third-party Software Used by the Touchpanels For information about network port requirements and licensed third-party software for all the touchpanels described in this guide, please refer to the Pro Series Control Product Network Ports and Licenses Guide, which is available at www.extron.com. -
Page 37: Reset All Ip Settings
Result The unit reverts to factory-installed firmware. Event scripting does not start if the unit is powered on in this mode. All user files and settings, adjustments, and IP settings are maintained. NOTE: To return the unit to the firmware version that was running prior to the reset, cycle power to the unit. -
Page 38: Enable Or Disable The Dhcp Client
Enable or Disable the DHCP Client This mode toggles between DHCP enabled and DHCP disabled. This can also be carried out from the Network screen of the Setup Menu (see page 9). Activation To enable or disable the DHCP client for the LAN port: Press the Reset button five times (consecutively). -
Page 39: Ieee 802.1X Certificates
IEEE 802.1X Certificates IEEE 802.1X is a standard that enables port-based network access control via an authentication server. The protocol requires that all devices must be authenticated before gaining privileges to access the secure part of the network. The Extron implementation of 802.1X supports PEAP - MSCHAPV2 and EAP - TLS methods of authentication. - Page 40 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
