Workstation PRESETS page

The Presets page (see figure 19) allows you to save the workstation with different combination of allowed inputs
and USB ties and with one input assigned keyboard and mouse control.
page 81 for a detailed description of using the KVM Configuration page and this page and to create KVM
workstations and presets.
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2
2 2 2 2 2 2

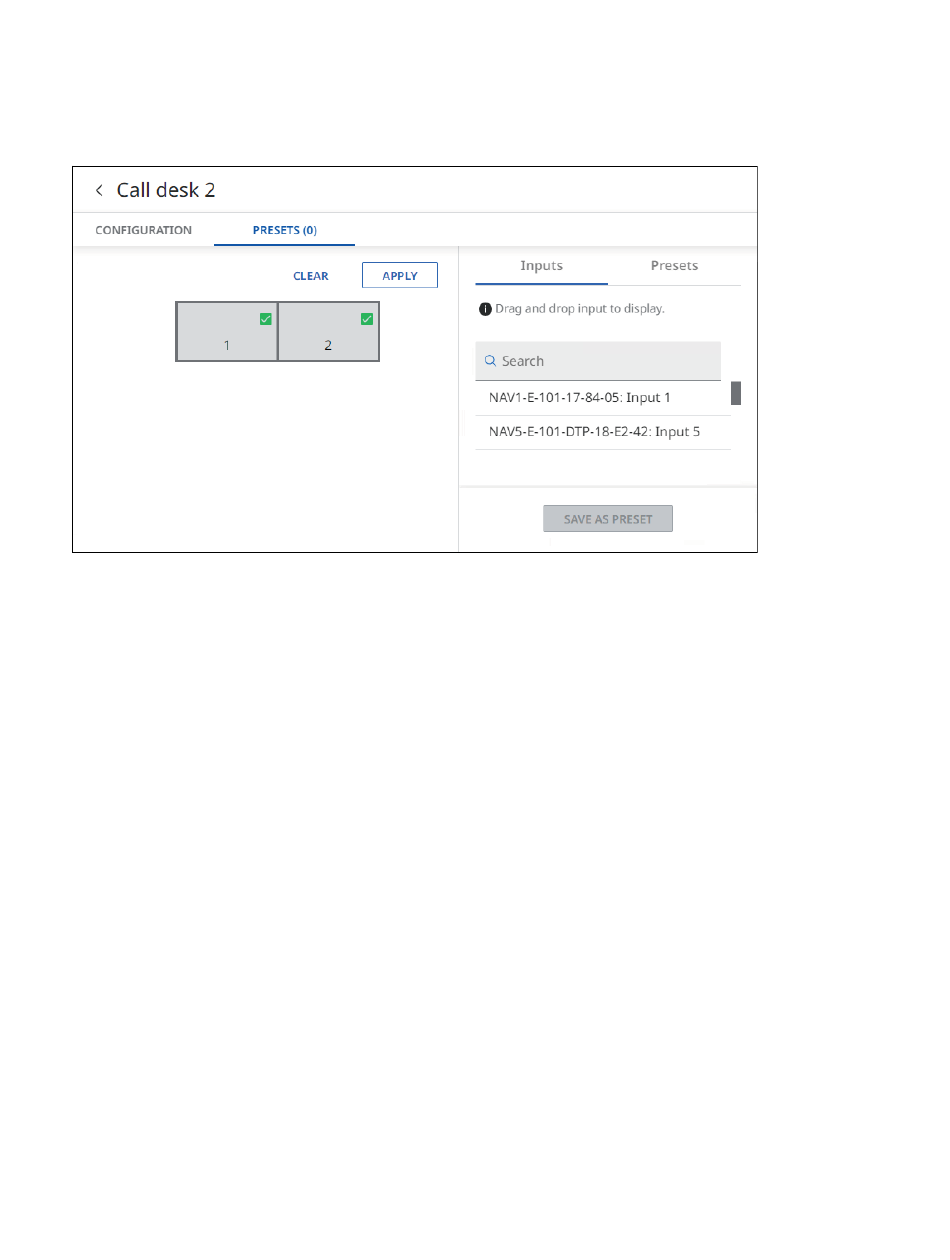

Figure 19. Workstation Presets Page
The Workstation PRESETS page (see figure 19) consists of the following elements:
CONFIGURATION tab — Opens the KVM CONFIGURATION pane (see
1
page 19).
Workstation display layout — A virtual representation of how the displays are setup at the workstation desk.
2
Each cell represents a display in the KVM workstation.
Input and preset controls — Show available encoders and manage saved presets.
3
Creating a KVM Workstations
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
KVM CONFIGURATION pane
