Creating WindoWall windows and presets

Once you have created and configured one or more canvases, it may be helpful to create presets that quickly
recall a specific canvas and associated encoders. Create one or more NAV WindoWall presets (up to eight
presets per canvas) as follows:
NOTE: This procedure assumes that you have created a canvas (see
1. If necessary, click the Menu icon ( , see
2. If necessary, click WINDOWALLS (see
3. If necessary, click the existing, completed canvas to configure (
(see figure 77 on page 75).
4. Click the Preset tab (see figure 79,
5. If necessary, select (click) the Inputs tab (

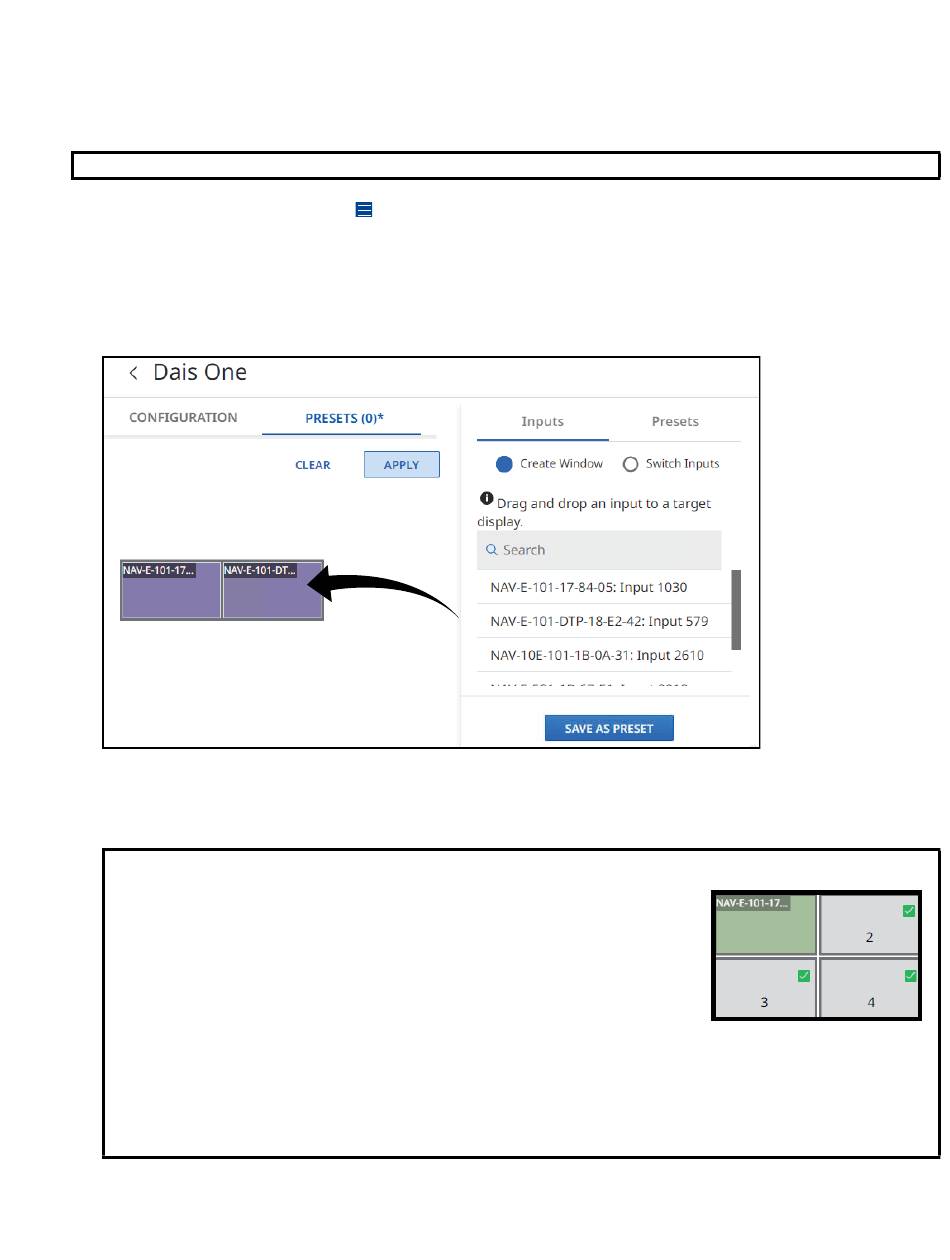

Figure 79. Creating a WindoWall Preset
6. If necessary, select (click) the Create Window radio button (
7. Drag and drop one or more encoders to the desired cells in the canvas view (
NOTES:
• Once you have dragged-and-dropped, you can create and resize the
windows in the canvas to incorporate multiple displays. Click the input
you just placed in the canvas view. The view of the window in the
canvas now has a thick black border (
size the window border (
• If you create multiple windows within the canvas, they are named with
sequential numbers by default (Window 1, Window 2, and so on).
• Windows on the canvas can spread over multiple displays, but two windows cannot share a display.
• After any change, an asterisk (figure 79,
changes.
• If you click APPLY (
creating a preset. You cannot recall an applied WindoWall.
8. Click SAVE AS PRESET (
figure 9,
figure 75,
) The Presets tab opens.
