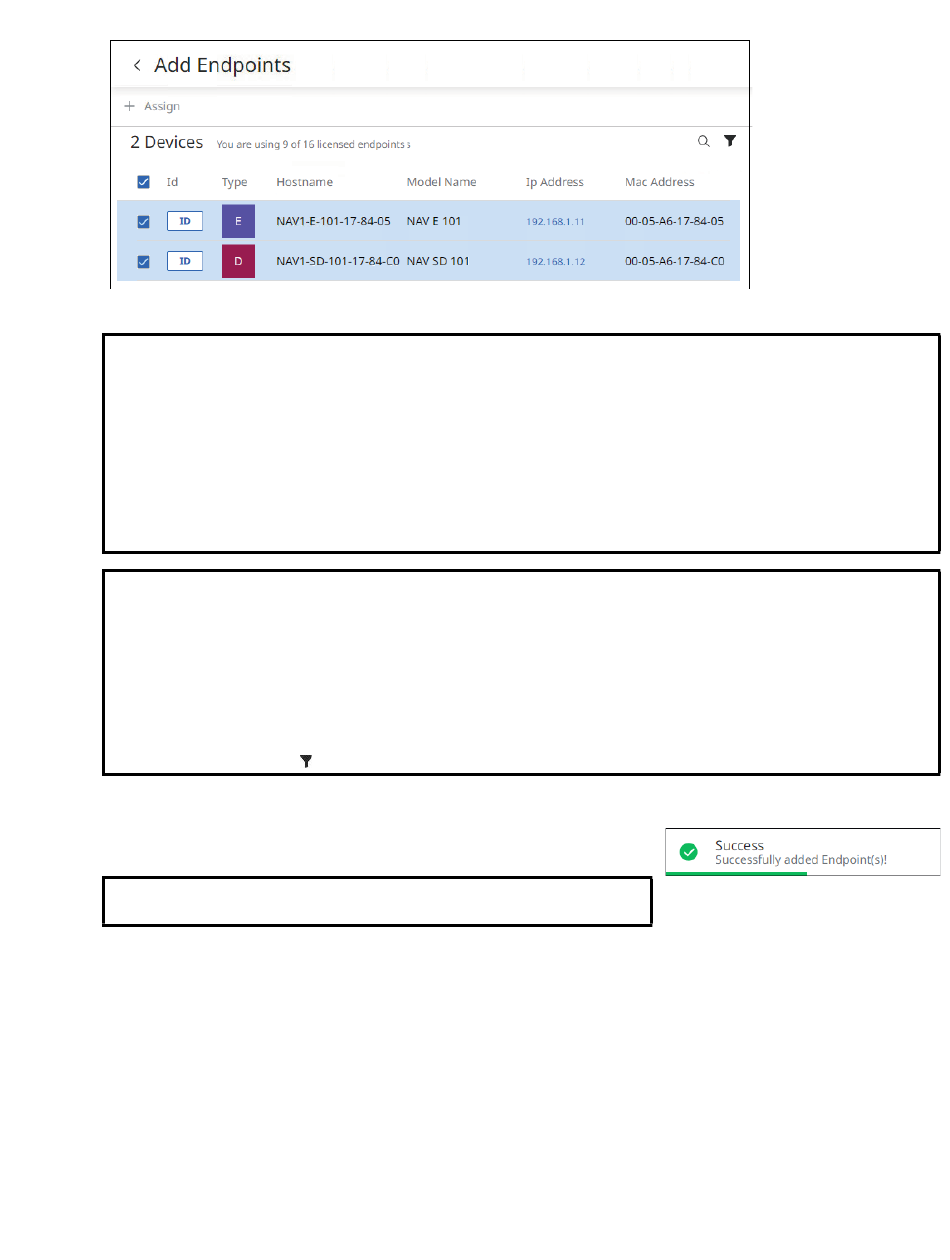

Figure 33. Assign Endpoints
NOTES:
• A banner advises you of how many endpoints you are using and how many for which you are
licensed (see figure 33,
• The NAVigator, by default, is licensed for 16 endpoints.
• Additional endpoints, up to 240, are available via LinkLicense; contact the Extron S3 Sales and
Technical Support Hotline (see
world). See
• When you assign an endpoint to the NAVigator, the endpoint automatically assumes the password of
the NAVigator.
TIPS:
• Use the ID function to help identify an endpoint as follows:
• Press and release the device ID button on the front panel of an endpoint to highlight the ID field on
the HTML page for that endpoint (
• Click the ID field (
off.
• Tailor the list to more easily find specific endpoints as follows:
• Click the Filter ( ) drop-down list (
4. Click the All checkbox (
5. Click Assign ( ). The NAVigator assigns the endpoints and reports
3
success on the endpoints page.
NOTE: Once an endpoint is assigned, it can no longer be
discovered by other NAVigators.
).
