4. If desired to print the multi-page report, or save it as a PDF file, click Print (see figure 25,
TIP:
To allow the printed tables to fit better, select landscape mode for the output.
The NAvigator prints or saves the mult-page report (see figure 26).

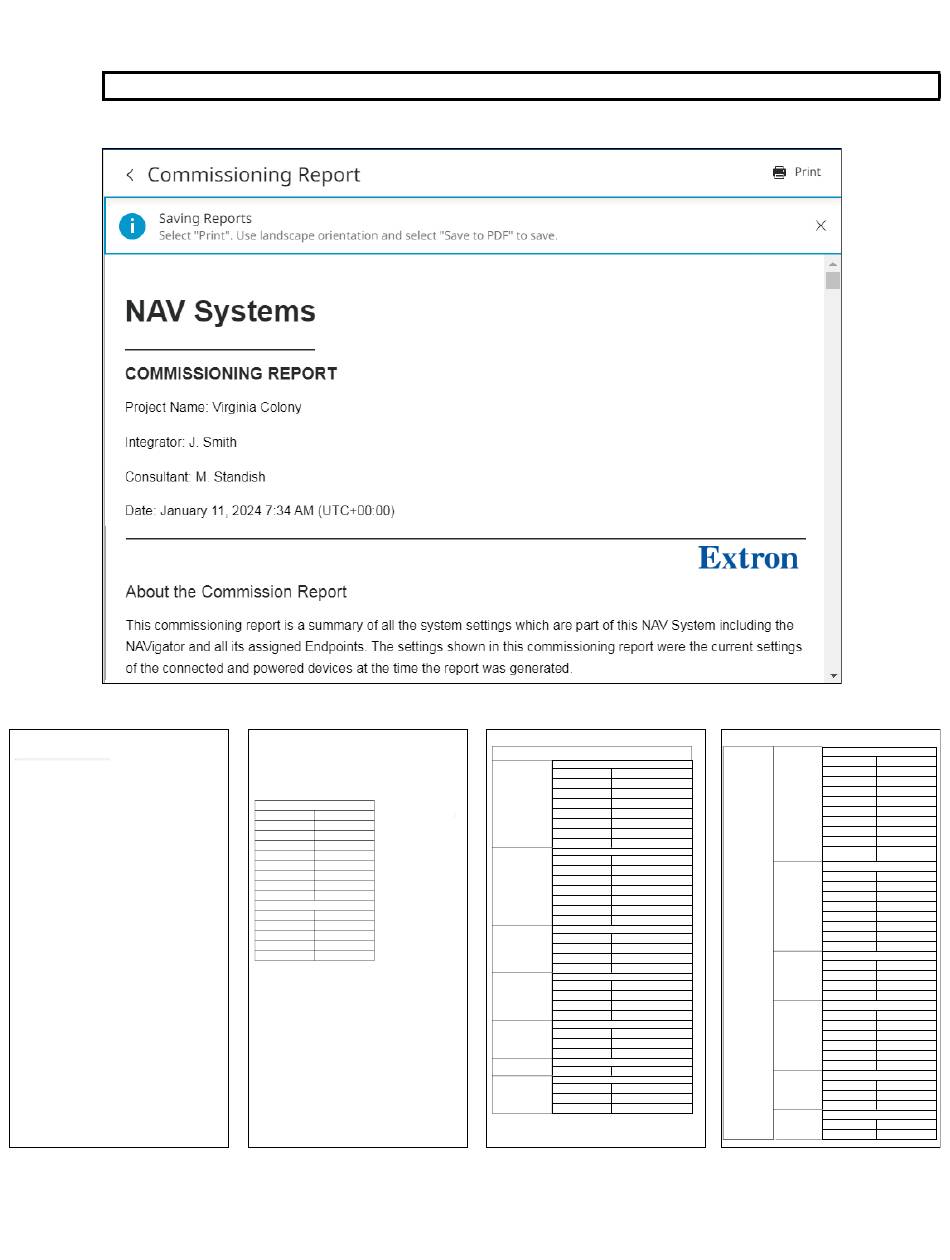

Figure 25. Sample Displayed Report
1/11/24, 10:40 AM Commissioning Report
NAV Systems
COMMISSIONING REPORT
Project Name: Virginia Colony
Integrator: J. Smith
Consultant: M. Standish
Date: January 11, 2024 9:18 AM (UTC+00:00)
about:blank
Page 1
Figure 26. Random sample of printed pages
1/11/24, 10:40 AM Commissioning Report
About the Commission Report
This commissioning report is a summary of all the system settings which are part of this NAV System
including the NAVigator and all its assigned Endpoints. The settings shown in this commissioning
report were the current settings of the connected and powered devices at the time the report was
generated.
NAVigator Settings:
General
Name NAVigator-13-9C-31
Location Not Specified
Firmware Version 1.01.0000-b088
Serial Number A1PC690
Model NAVigator
Part Number 60-1534-01
Power Source P/S
Feature Link Licenses
Model Description NAV System Manager
Date / Time Settings
Date January 11, 2024 9:18 AM
Time 9:18:32 AM
Time Zone (UTC+00:00)
Use NTP Server Yes
NTP Servers time.nist.gov
1/29 about:blank
Page 3
1/11/24, 10:40 AM Commissioning Report
COMM Settings
NAV - AV LAN
IP Address 192.168.254.254
Subnet Mask 255.255.255.0
Gateway 0.0.0.0
DNS Server 0.0.0.0
DNS Suffix Not Specified
MAC Address 00-05-A6-13-9C-32
Link Speed 1 Gbps
IGMP Querier nnn.nnn.nnn.nnn.
OOB - Public LAN
IP Address 192.168.253.254
Subnet Mask 255.255.255.0
Gateway 0.0.0.0
DNS Server 0.0.0.0
DNS Suffix folklore.net
MAC Address 00-05-A6-13-9C-31
Link Speed 1 Gbps
LLDP Neighbor info (NAV
AV LAN)
System Name -
Management Address -
Port ID te1/0/7
Port VLAN ID -
LLDP Neighbor info (OOB
Public LAN)
System Name Jamestown-colony .folklore.net
Management Address 10.113.0.132
Port ID Gi4/0/22
Port VLAN ID 145
Route Add/Static Route
Network Address -
Subnet Mask -
Next Hop IP Address -
Discovery
Discovery IP Address nnn.nnn.nnn.nnn.
Controller 0 of 0
Control Pairing
Controller IP Address -
Controller System ID -
Connection Status -
3/29 about:blank
Page 4
NAVigator System Manager • HTML Operation
).
1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1/11/24, 10:40 AM Commissioning Report
NAV1-E-101-17-84-05 General
Name
Location
Input #
Firmware Version
Serial Number
Tags
Model
Part Number
Power Source
Model Description
Comms
IP Address
Subnet Mask
Gateway
DNS Server
DNS Suffix
MAC Address
Link Speed
IGMP Querier
LLDP Neighbor info V A
(NAV AV LAN)
System Name
Management Address
Port ID
Port VLAN ID
Multicast / Discovery
Discovery IP Address
Video IP Address
Audio IP Address
AES67 Audio Address
Quality of Service
TTL
Streaming
Bitrate
Video Stream
Audio Stream
Video
about:blank
HDCP Mode
HDCP Authorized
3/29
Page 7
NAV1-E-101-17-84-05
Not Specified
1030
1.01.0000-b088
A1YX8DN
-
NAV E 101
60-1525-12
P/S
NAV Gigabit Encoder
HDMI
192.168.1.11
255.255.255.0
0.0.0.0
0.0.0.0
Not Specified
00-05-A6-17-84-05
1 Gbps
192.168.1.111
-
-
te1/0/9
-
239.255.255.254
239.1.4.6
239.0.4.6
239.69.4.6
128
10
850
Enabled
Enabled
Follow Input
Enabled
7/29
