NAVigator-Initiated Power-Up Message

When the decoder completes its start-up, it issues the following message to the host:
© Copyright 20yy, Extron Electronics NAVigator, Vx.xx, 60-nnnn-nn ]
Vx.xx is the firmware version number and 60-nnnn-nn is the part number.
DevpA*<endpoint>*<0 = unassigned, 1 = assigned>]
The assigned status of an endpoint has changed.
DevpC*<endpoint>*<0 = disconnected, 1 = connected> ]
An assigned endpoint has changed its connection status.
DevpP*<endpoint>*<0 = offline, 1 = online> ]
An assigned endpoint has changed its online status.
HkdmP*<endpoint> ] or HkdmK*<endpoint> ]
The NAVigator has detected a valid hot key combination: < Ctrl > < Ctrl >+<letter> or < Ctrl > < Shift >+<letter>.

NAVigator Error Responses

When the NAVigator receives a valid SIS command, it executes the command and sends a response to the host
device. If the NAVigator is unable to execute the command because the command is invalid or it contains invalid
parameters, the NAVigator returns an error response to the host. The error response codes are:
E10 — Invalid command
E12 — Invalid port number
E13 — Invalid parameter
E14 — Invalid for this port configuration
E17 — Invalid command for signal type
E22 — Busy
E24 — Privilege violation
E25 — Device not present
E28 — Bad file name or file not found

Using the Command and Response Tables

The command and response table begins below. Symbols are used throughout the table to represent variables in
the command and response fields. Command and response examples are shown throughout the table. The ASCII
to HEX conversion table below is for use with the command and response table.

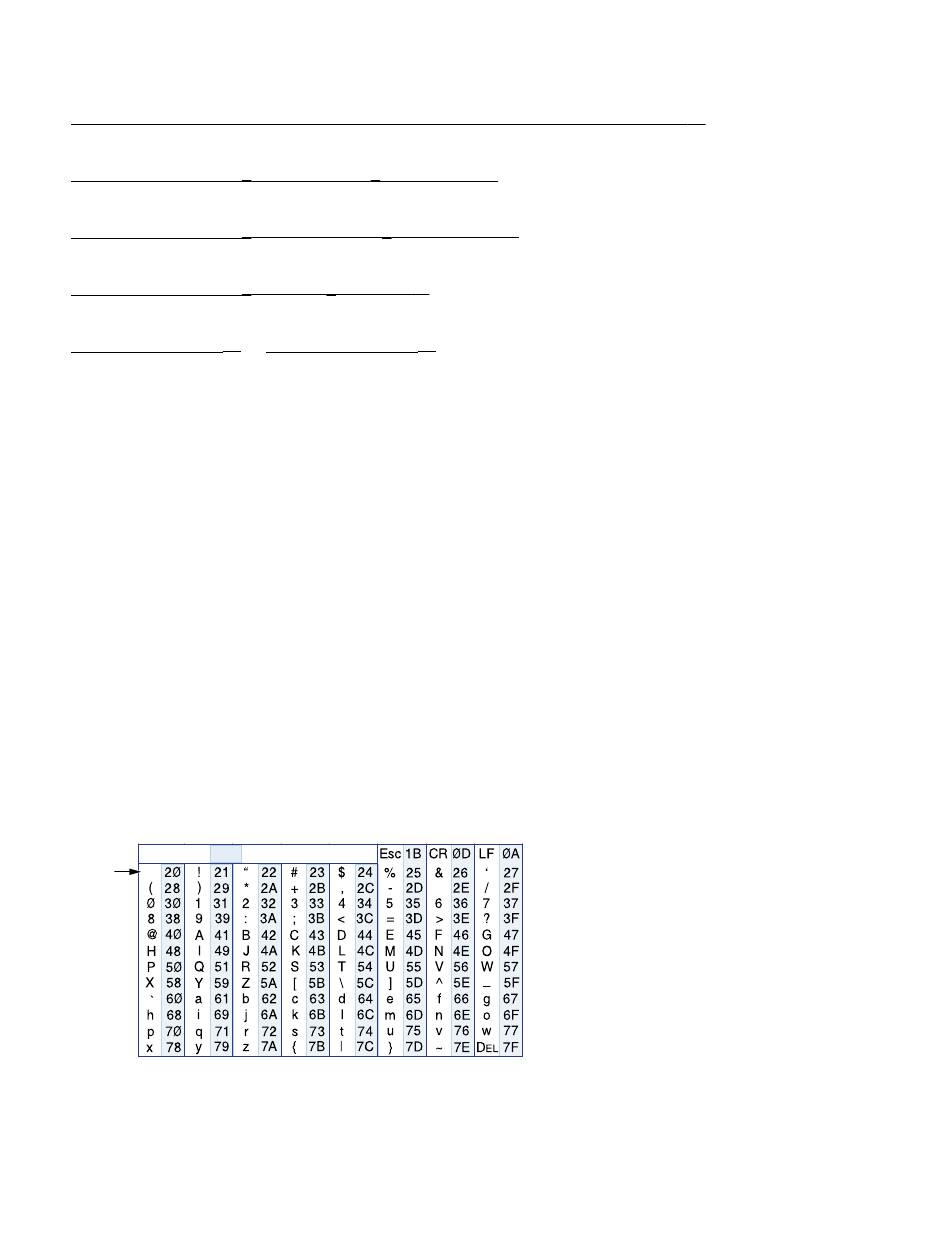

ASCII to Hex Conversion Table
Space

Common symbol definitions

] = Carriage return/line feed
} = Carriage return (no line feed)
= Pipe (can be used interchangeably with the
|
•
= space
•
E = Escape key
W
}
character) = Can be used interchangeably with the
NAVigator System Manager • SIS Operations
E character
133
