Replacing an endpoint
At some point you may need to replace an existing endpoint in the NAV system, for example to increase
functionality by replacing an encoder with a unit that provides Ethernet extension. Either a system backup file or
an encoder backup file make the process simpler, however the process can be completed without one.
Replace an endpoint as follows:
1. If possible, create either a system backup file (see
backup file for the endpoint to be replaced (see "BACKUP tab" in the User Guide for the applicable endpoint,
available at www.extron.com).
2. Unassign the old endpoint as follows:
a. On the Endpoints > General page, click the checkbox for the to-be-replaced endpoint (see figure 109,
).
1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

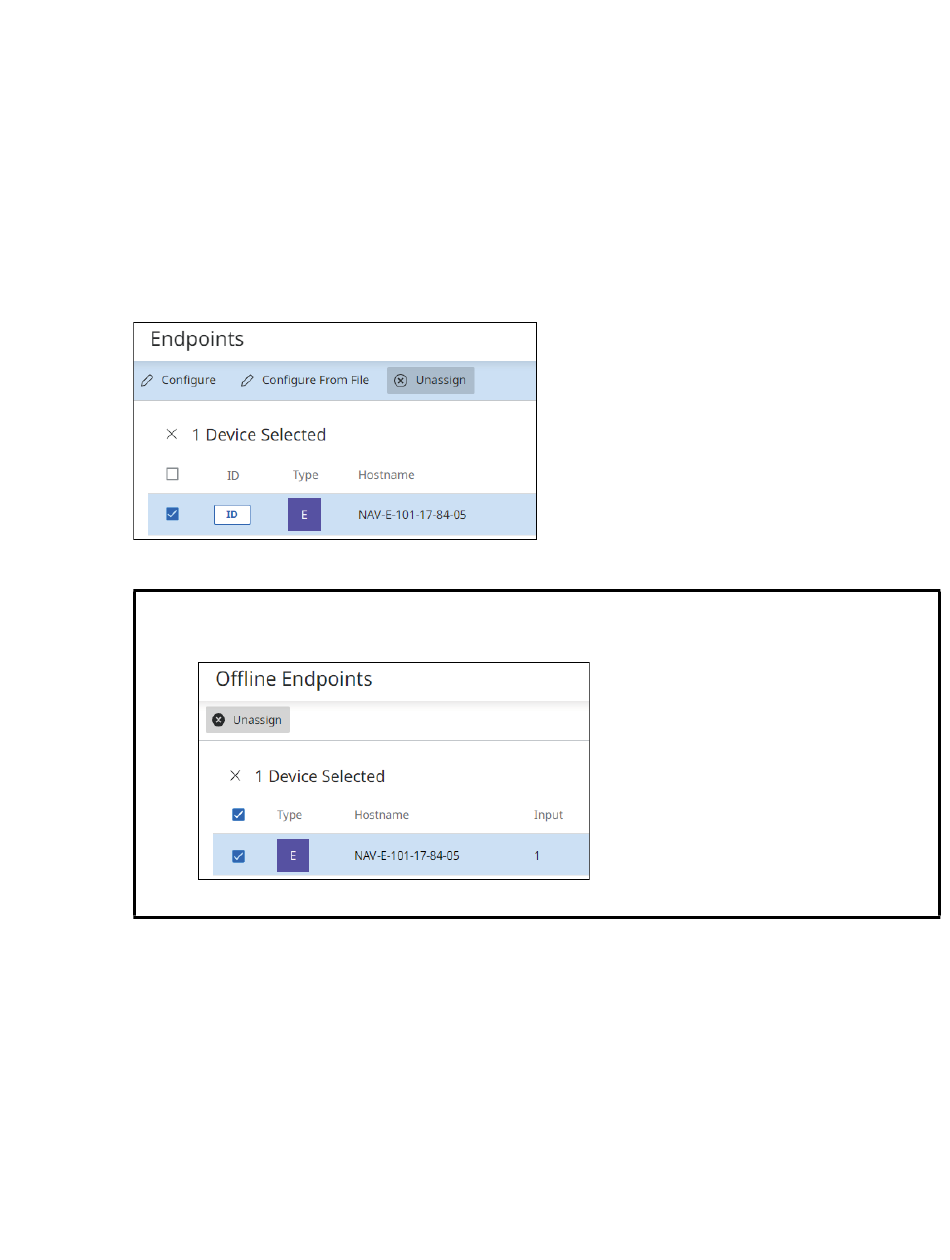

Figure 109. Unassigning the Endpoint
NOTE: If unit is offline (has failed or has been physically removed from the system), it appears in the
Offline pane of the Monitoring page (click MONITORING and then Learn More in the Offline pane).
Click the checkbox (see figure 110,
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Figure 110. Selection the Endpoint.
b. Click Unassign (see figure 110 or figure 111,
3. Connect new endpoint to the system (see "Installation and Operation" in the User Guide for the applicable
endpoint, available at www.extron.com, and
Backing up the system
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
).
1
).
2
Rear Panel Connections and Features
NAVigator System Manager • HTML Operation
on page 96) or an endpoint
on page 4).
