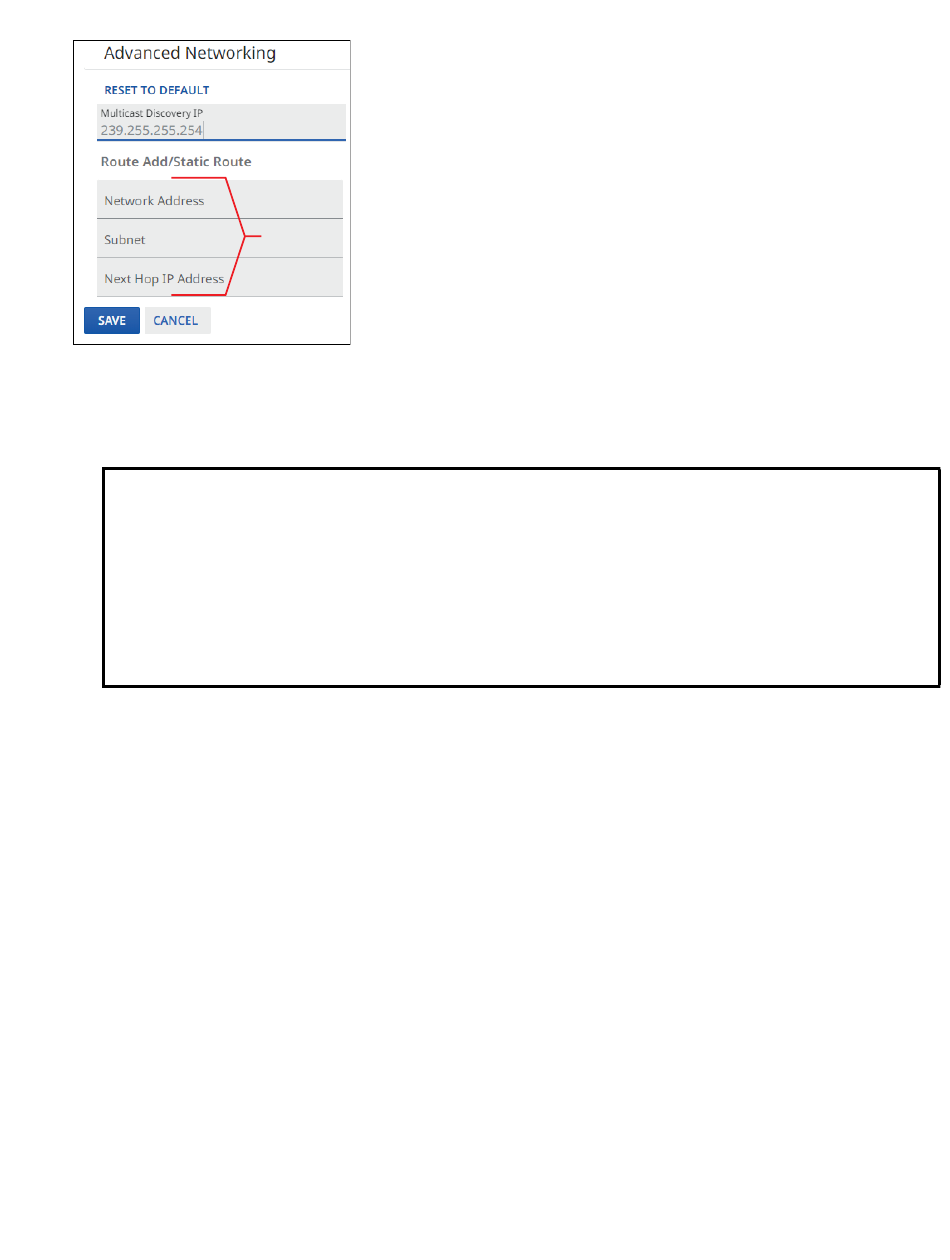

Figure 143. Editable Advanced Networking Selection
RESET TO DEFAULT — Click to restore the advanced networking settings of the encoder to their default
1
values.
Multicast IP addresses — Click in these fields and type in valid IP addresses for your NAVigator.
2
NOTES:
• Multicast Discovery IP is the multicast IP address (Default: 239.255.255.254) that is used for
discovery and communication purposes across the NAV system.
• The Route Add/Static Route provides a single static route in the NAVigator for accessing
endpoints located on remote subnets.
• The Network Address and Subnet Mask fields define the remote subnets using the shortest
prefix mask possible.
• The Next Hop IP Address is the IP address of the gateway that has access those remote
subnets.
SAVE and CANCEL buttons — Click SAVE to take changes or CANCEL to abandon them. Clicking either
3
button closes the editable pane.
