IGMP Querier pane

An IGMP querier is a network service that runs on a network switch and manages the IGMP network traffic. An
IGMP querier should be configured on the NAV network. It manages the multicast traffic. If there is no IGMP
querier on the network, there is no effective multicast traffic management and the multicast traffic saturates the
network and stream errors can occur.
The IGMP Querier pane (see
present on the network, and the IP address of the IGMP querier. The address allows you to know that you are
communicating to a querier and which querier. In the case of duplicate querier, the IP address may change.

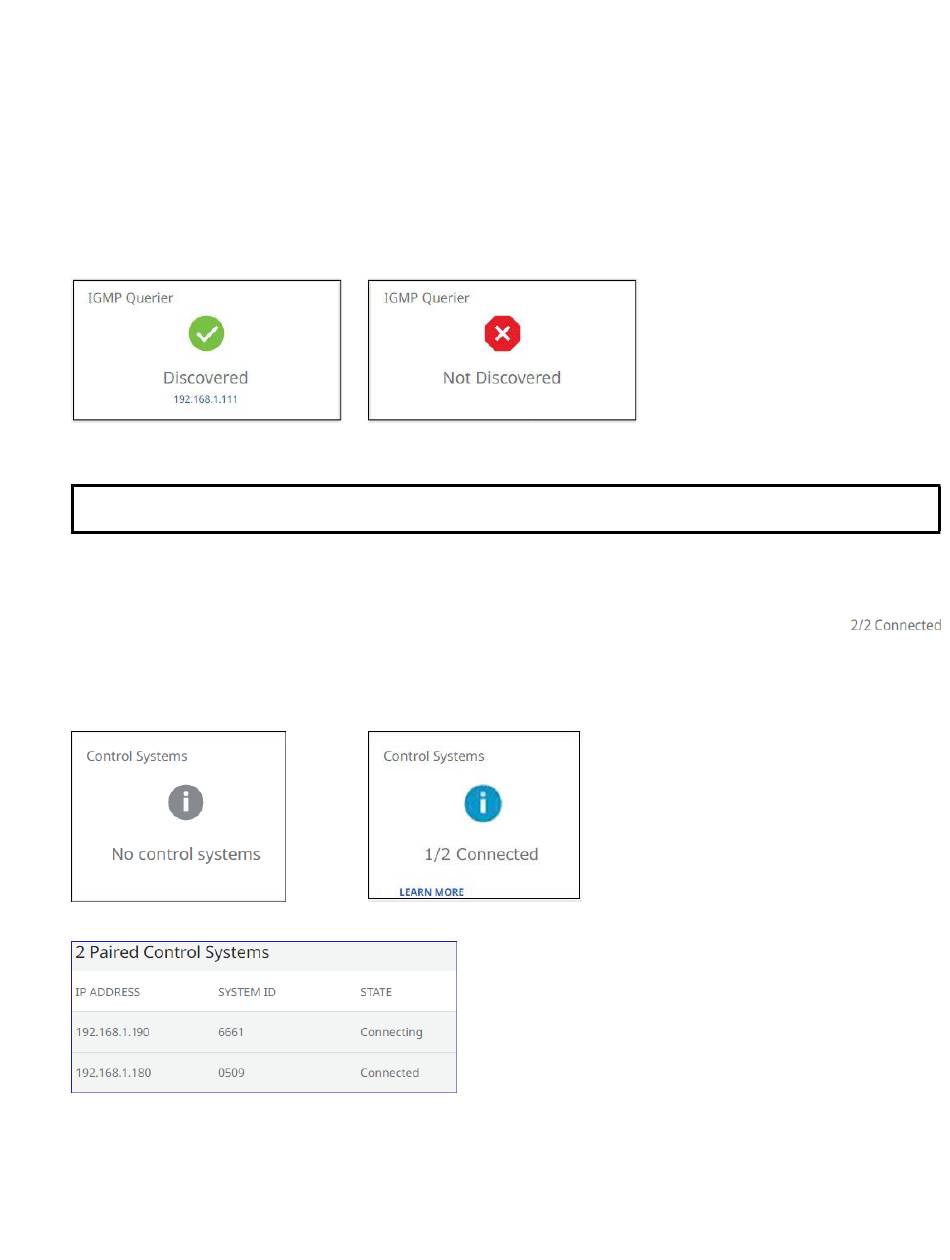

Figure 120 shows the normal indication if an IGMP querier is present on the network and if no IGMP querier is
present on the network.
IGMP Querier Discovered
Figure 120. IGMP Querier Pane Indications
NOTE: If no IGMP querier is discovered, contact your network administrator. An IGMP querier is a required
network resource for the NAV System to function correctly.

Control Systems pane

The Control Systems pane (see
that are paired and connected to the NAVigator. The leftmost shown number at right indicates the
number paired. The rightmost number indicates the number connected.
Figure 121 shows the indication if no control system is paired (on the left) and if one is connected (on the right).
Click Learn More ( ) to see detailed connection and pairing information (see figure 122).
1
Figure 121. Control Systems Pane
Figure 122. Detailed Control Systems Connection and Pairing Information
figure 117, on page 109) shows whether or not an IGMP querying device is
C
IGMP Querier Not Discovered
figure 117, ) shows the status of control systems
D
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
NAVigator System Manager • HTML Operation 112
