Diagnostic Tools page

The Diagnostic Tools page (see figure 23) provides tools that allow you to troubleshoot the connection to other
units on the NAV network. Access the page as follows:
1. Click the TOOLS > Diagnostic Tools link on the left side of the browser (
Diagnostic Tools page.
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

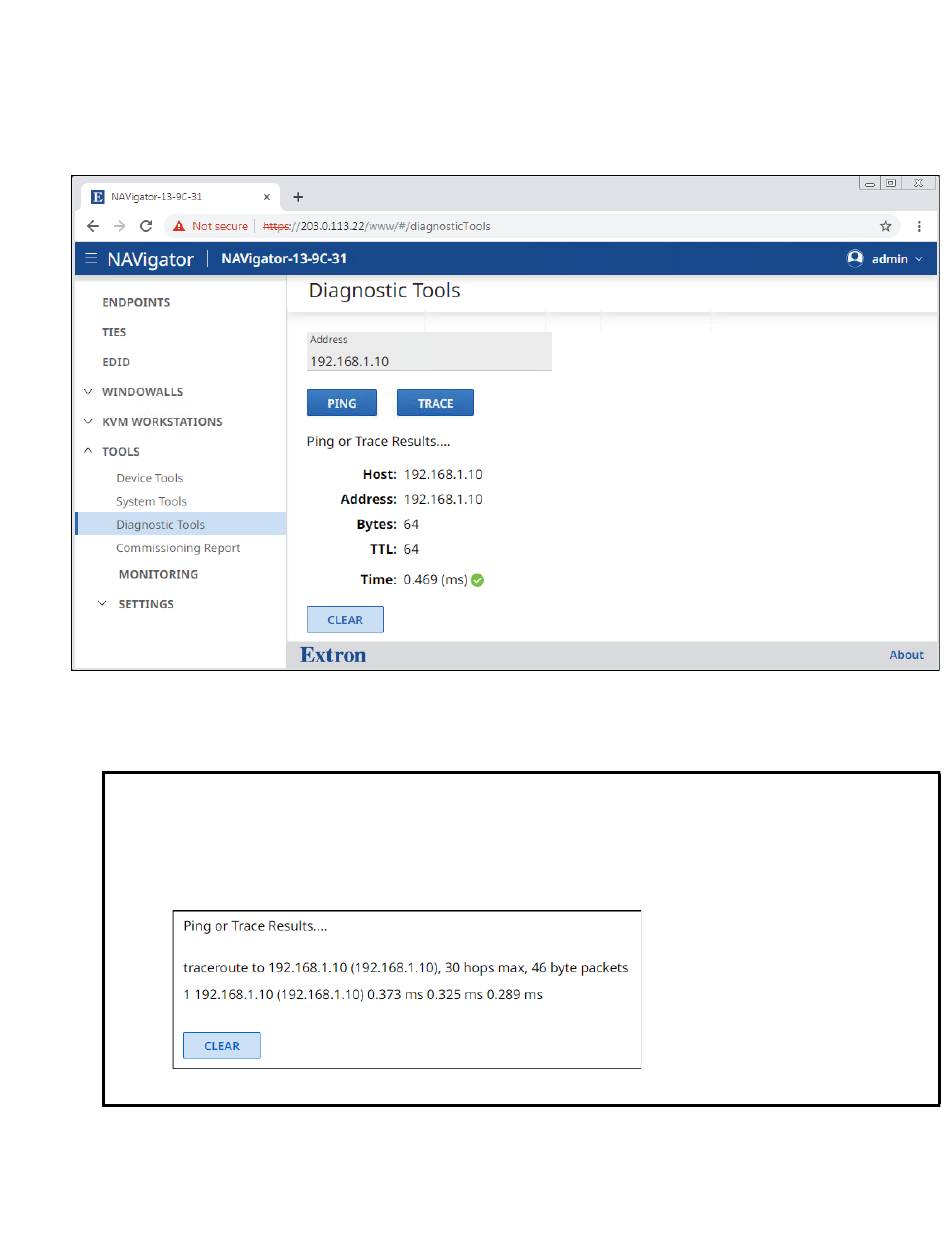

Figure 22. Diagnostic Tools Page, Ping Results Shown
2. Click in the Address field and type in the IP address of another unit on the network (
3. Click either PING or TRACE (
NOTES:
• Ping — Use this tool to test the connection to another unit on the network.
Figure 23,
• Trace — Use this tool to trace the network route taken by a packet from source to destination.
Figure 27 shows the typical results of a Trace diagnostic.
Figure 23.
4. Click CLEAR ( ) to reset the Address field if you want to run another diagnostic.
