Installation and Operation

This section describes the installation and the operation of the NAVigator, including:
•

Rear Panel Connections and Features

•
Front Panel Connection and Indicators
• Basic Operation
NOTE: For equipment mounting, see
Rear Panel Connections and Features
POWER
12V
0.5 A MAX
A A A

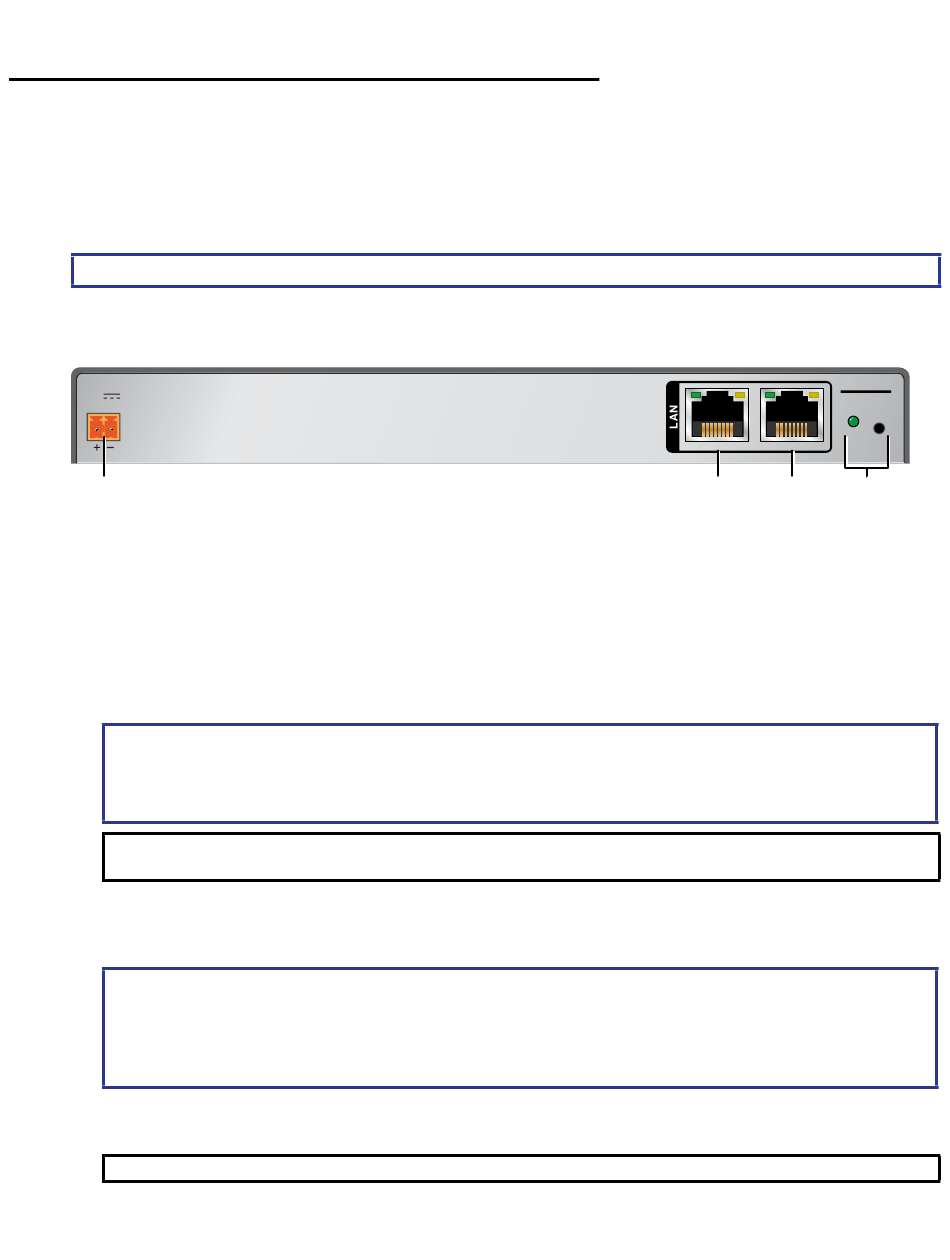

Figure 2. NAVigator Rear Panel Connectors and Features
Power connector (optional) — See below.
A
NAV/PoE port
B
OOB (Out of Band) port
C
RESET button and LED
D
Power connector (optional) — Plug the included external 12 VDC power supply into this 2-pole connector for
A
power by a local device.
ATTENTION: Do not connect power to the NAVigator until you have read the
ATTENTION
ATTENTION : Ne connectez pas l'alimentation à l'NAVigator avant d'avoir lu les rubriques «
» des page 6.
NOTE: Alternatively, the NAVigator can be powered via PoE, supplied by either an optional PI 140 Power
Injector or a PoE capable network switch.
NAV/PoE port — Connect this port to your A/V LAN network for control of the NAVigator, control of the A/V
B
streaming network (NAV encoders and decoders), or both. Optionally, you can also power the NAVigator by
inserting PoE through this port. Streaming endpoints must be on the same network as the NAV/PoE port.
ATTENTION: Power over Ethernet (PoE) is intended for indoor use only. It is to be connected only to
networks or circuits that are not routed to the outside plant or building.
ATTENTION : L'alimentation via Ethernet (PoE) est destinée à une utilisation en intérieur uniquement.
Elle doit être connectée seulement à des réseaux ou des circuits qui ne sont pas routés au réseau ou
au bâtiment extérieur.
OOB (Out of Band) port — Connect this port to a network for remote management of the NAV System. The
C
OOB port cannot receive PoE.
NOTE: The OOB Port should not be connected to the same network as the NAV/PoE Port.
Mounting the NAVigator
— See page 5.
notices on page 6.
NAVigator System Manager • Installation and Basic Operation
on page 143.
OOB
C C C
CAUTION
NAVigator
RESET
NAV/PoE
B B B D D D
and
ATTENTION
4
