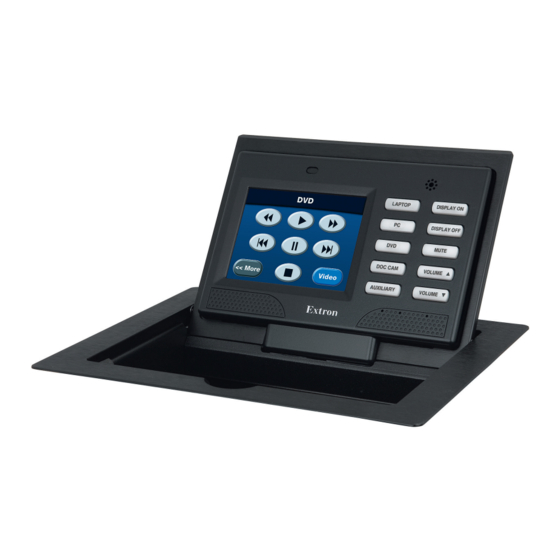

Extron electronics Cable Cubby TouchLink TLP 350CV User Manual

Hide thumbs Also See for Cable Cubby TouchLink TLP 350CV:
Table of Contents

Advertisement

Quick Links

Download this manual
TLP 350CV
Cable Cubby
TouchLink
Panel Control Systems
®
™
68-1692-01
Rev. A
12 09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cable Cubby TouchLink TLP 350CV and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics Cable Cubby TouchLink TLP 350CV

Summary of Contents for Extron electronics Cable Cubby TouchLink TLP 350CV

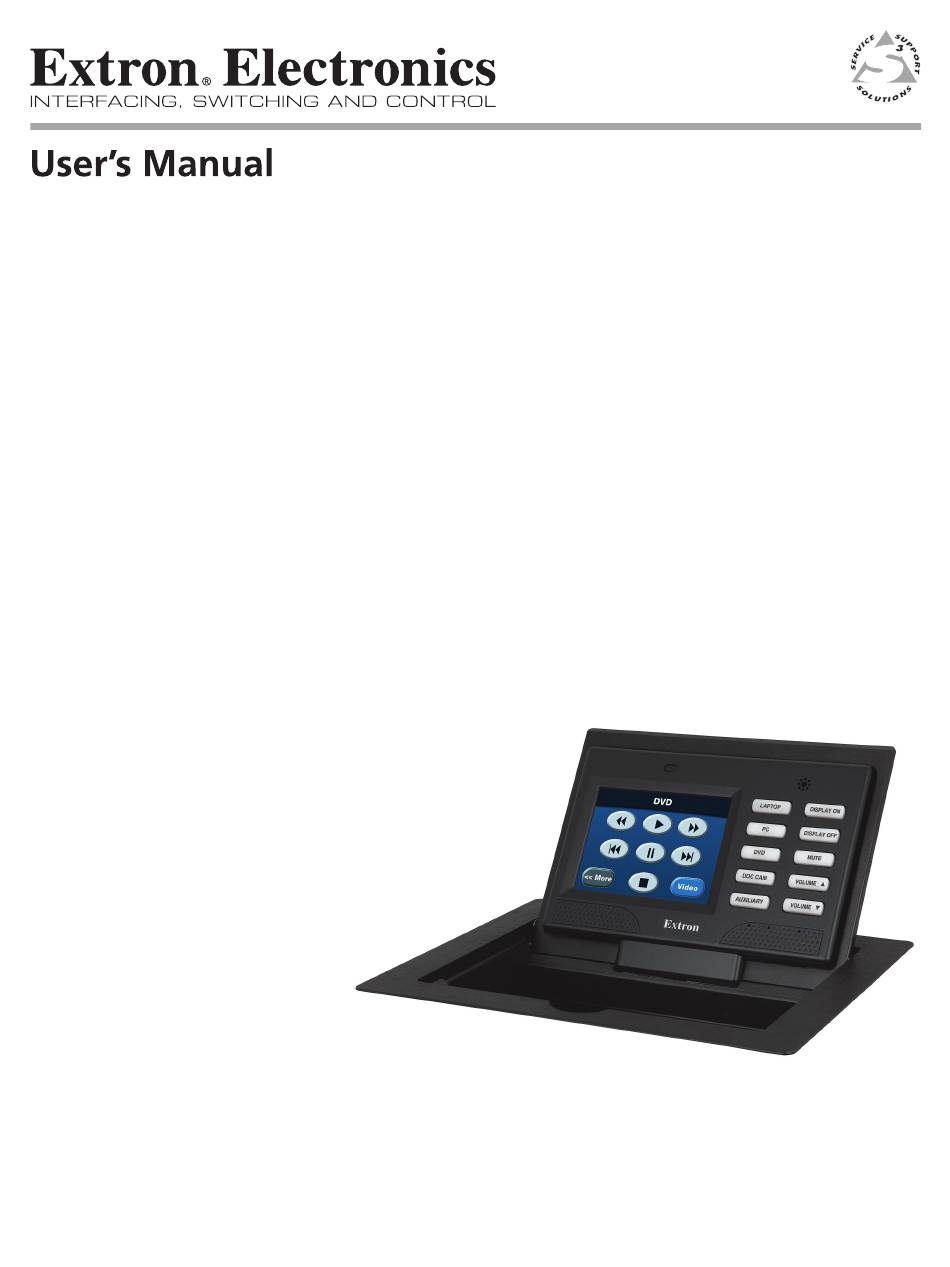

  • Page 1 TLP 350CV Cable Cubby TouchLink Panel Control Systems ® ™ 68-1692-01 Rev. A 12 09...
  • Page 2 Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and maintenance equipment is intended to be used with a main power system with a grounded (neutral) conductor. The (servicing) instructions in the literature provided with the equipment.
  • Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    Table of Contents Chapter One • Introduction ....................... 1-1 About This Manual ........................1-2 About the TLP 350CV ......................... 1-2 Features ............................. 1-2 Requirements ..........................1-4 Hardware.and.Software ......................1-4 Control.Interface ........................1-4 Chapter Two •...
  • Page 6 Table of Contents, cont’d Time.(and.Date) .......................... 3-4 IP.(Network) ..........................3-4 IP.Address..........................3-4 Subnet.Mask......................... 3-5 DHCP............................. 3-5 Video............................3-5 Touchscreen.Calibration ......................3-6 Chapter Four • Configuration Software ................4-1 Software Control ........................

  • Page 7: Chapter One • Introduction

    TLP 350CV Chapter One Introduction About.This.Manual About.the.TLP.350CV Features Requirements...
  • Page 8 Introduction About This Manual This manual describes the function, installation, operation, and control of the TLP 350CV touch panel controllers. The following symbols are used throughout the manual and carry the following meanings: N A Note icon draws attention to important information. A Tip provides a suggestion to make setting up or working with the device easier. A Caution icon warns of things that might damage the equipment. A Warning icon warns of things that might cause injury, death, or other severe consequences. About the TLP 350CV The Extron TouchLink™...
  • Page 9 Compatible with most Extron IP Link products — for easy modification or expansion and integration into existing systems. Ten buttons — for common, user-defined functions. Pre-labeled buttons are available to customize panel operation Light sensor — allows auto dimming feature to adjust LCD screen backlighting to ambient lighting. Lid switch — activates the touchscreen when the lid is opened and deactivates when closed for energy savings Sleep mode —...

  • Page 10: Requirements

    Introduction, cont’d Requirements Hardware and Software The following system requirements are recommended for running GUI Configurator or Global Configurator 3: • Operating System – Microsoft Windows ® ® • CPU – Intel 1.2 GHz or compatible processor ® • Memory – 1 GB of RAM •...

  • Page 11: Installation Overview

    TLP 350CV Chapter Two Installation and Operation ...Installation.Overview Obtain.Cutout.Dimensions Preparing.the.Table Cutting.the.Table Preparing.the.Routing.Template Installing.the.Cables.and.AAPs Mounting.the.TLP.350CV. Power.Supply.Installation.(US.Models.Only) Connecting.the.TLP.350CV Front.Panel.Controls.and.Indicators...
  • Page 12 Installation and Operation Installation Overview Install and set up the Cable Cubby enclosure as follows: Verify the surface cutout dimensions of the TLP 350CV. See "Obtain Cutout Dimensions" on page 2-3. To obtain the most recent cutout dimensions, visit the Extron Web site at www.extron.com.
  • Page 13 Obtain Cutout Dimensions Determine the optimum location for the TLP 350CV keeping in mind the size of the enclosure that will be below the table and also the ease of operation for a user. Cutout dimensions are available as a router guide, printed dimensions for a CNC wood router and a cutout template.
  • Page 14 Installation and Operation, cont’d Cutting the Table After verifying and checking dimensions and preparing the proper template, cut a hole in the surface of the furniture where the enclosure will be installed. The preferred and recommended method for preparing the table for square Cable Cubby models is to use the appropriate Extron routing template and a router.

  • Page 15: Preparing.the.table.with.a.router

    Preparing the Table with a Router Prepare the table with a router as follows: The routing templates for the various Cable Cubby models are not interchangeable. If the wrong template is used, the hole will be the incorrect size. If a larger template than required is used, the cut will result in gaps in the table surface on either side of the enclosure. Ensure that only the wooden strips on the routing template contact the furniture. Failure to do so may mar the furniture. Mark the desired mounting location on the tabletop or other installation surface. Place the mounting template assembly on the table, centered on the mounting location.

  • Page 16: Installing The Cables And Aaps

    Installation and Operation, cont’d Installing the Cables and AAPs Each TLP 350CV includes pass-through AAPs and a power module. A wide range of passive AAPs are also available allowing direct connection of cables from the top and underneath the AAPs. Depending upon the configuration, the enclosure can support up to nine (9) AAPs.

  • Page 17: Aap.assembly

    AAP Assembly Each AAP shelf assembly consists of a set of shelf brackets and a number of cable pass-through AAPs. Figure 2-4 — Shelf brackets with pass-through AAPs (shown on right)  and passive AAPs (on left) The easiest way to install the cables and AAPs is to populate the shelf brackets with pass-through and/or passive AAP plates outside the Cubby as shown, then install the populated AAP shelf assembly into the enclosure.

  • Page 18: Install.pass-Through.aap.cables

    Installation and Operation, cont’d Install Pass-through AAP Cables Pass-through AAP's must have the cable installed as they are being mounted on the shelf brackets. Two cutouts in each cable pass-through AAP loosely guide the cables through the Cable Cubby. Each channel is padded with a grommet to prevent wear.

  • Page 19: Installing.passive.aaps

    Place the next pass-through AAP onto the shelf such that the channel opening is accessible and the opposite side is up against the AAP previously installed. The rear of the new AAP now secures the channel opening of the previously installed one.

  • Page 20: Installing.the.shelf.assembly

    Installation and Operation, cont’d Installing the Shelf Assembly From the underside of the Cable Cubby: From the underside of the Cable Cubby, push the AAP shelf assembly into position at the desired elevation. Choose the adjustment height that provides enough clearance to allow the lid to be closed without contacting the connectors.

  • Page 21: Mounting The Tlp 350Cv

    Mounting the TLP 350CV The flanged edges of the the trim ring are sharp. Exercise caution when the enclosure is not in the table to prevent personal injury. The trim ring edges can easily be nicked or bent. Exercise caution when handling and mounting the enclosure. If table clamps are installed, remove them from both sides of the enclosure. Remove the edge grommet protecting the corners of the trim ring and the plastic film on the finished surfaces. Do not use isopropyl alcohol or other solvents to clean the Cable Cubby.

  • Page 22: Mounting The Power Supply (Us Models Only)

    Installation and Operation, cont’d Mounting the Power Supply (US models only) The power supply provided with the TLP 350CV uses the ZipClip 100 system for ™ furniture mounting. The included bracket makes it possible to mount the supply horizontally, vertically or even under the table surface and provides a method for securing excess wiring out of the way.

  • Page 23: Attaching/Removing.the.clip.and.power.supply

    Using the ZipClip 100 Attaching/removing the clip and power supply To attach the power supply to the ZipClip 100 mounting clip: Insert the bottom of the power supply down into the clip, starting with one end. Pivot the other end down and press until the clip snaps into place. To remove the power supply from the ZipClip: Press the ZipClip tab.

  • Page 24: Connecting The Tlp 350Cv

    Installation and Operation, cont’d Connecting the TLP 350CV The rear panel of the TLP 350CV located on the bottom of the enclosure, provides all required connections. The panel requires an IP Link controller for operation. VID / Y POWER PREVIEW INPUT 1.0A MAX Figure 2-13 — TLP 350CV Rear Panel Power Connector —...
  • Page 25 Network Connector — The TLP350 connects to an Ethernet LAN using a twisted pair cable, terminated with an RJ-45 connector (see the figure below). RJ-45 Port Plug one end of the cable into the RJ-45 socket and the other end into a network switch, hub, or router that is connected to an Ethernet LAN or the Link Internet.

  • Page 26: Front Panel Controls And Indicators

    Installation and Operation, cont’d Front Panel Controls and Indicators The front panel provides control and operation via the touch screen, the side buttons, and speaker. Figure 2-16 — TLP 350CV front panel Light Sensor — Provides auto-dimming of the display to maximize viewability in differing lighting conditions. LCD screen — The backlit LCD screen has a resolution of 320 x 240, with 18 bits/pixel (6 bits/color) plus an 8 bit alpha channel providing 26-bit color depth.

  • Page 27: Configuring.the.tlp.350Cv.(Initial.setup)

    TLP 350CV Chapter Three Initial Configuration Configuring.the.TLP.350CV.(Initial.Setup) Internal.On-screen.Menus...

  • Page 28: Main.menu

    Initial Configuration Configuring the TLP 350CV (Initial Setup) Prior to using the TLP 350CV, it is essential to configure it using the internal on-screen menus. The TLP 350CV contains a set of on-screen menus used to configure the touch panel. The menus are pre-loaded and cannot be altered by the user.

  • Page 29: Backlight

    Backlight If ambient lighting is bright, the screen may need a high level of backlighting to read the screen. With low ambient lighting, the backlighting should be low. Adjust backlighting from 0 to 100% by pressing the Down or Up buttons. The current setting is shown just above the buttons.

  • Page 30: Time.(And.date)

    Initial Configuration, cont’d Time (and Date) The Time tab also adjusts the date. Use the onscreen buttons to set the Day, Month and Year, and the time (military format) in Hours and Minutes. When attached to a controller, the panel synchronizes its time settings, Greenwich Mean Time (GMT) offset, and DST.

  • Page 31: Subnet.mask

    Subnet Mask This text box displays the currently configured Subnet Mask for the panel. To change the Subnet Mask: Press the on-screen Subnet Mask box. A new screen appears with a number pad. Enter the desired subnet mask in the format: xxx.xxx.xxx.xxx. If a mistake is made, press Clear, then repeat step 2 until all the octets have been set correctly.

  • Page 32: Touchscreen.calibration

    Initial Configuration, cont’d Touchscreen Calibration If the touchscreen panel does not react properly to a finger touch, it may require calibration. To access the touchpanel calibration screen: 1. From the main setup menu, press the recessed menu button ( ) once to access the calibration menu.

  • Page 33: Software Control

    TLP 350CV Chapter Four Configuration Software Software.Control Installing.Software Updating.Firmware GUI.Configurator Global.Configurator...

  • Page 34: System.requirements

    Configuration Software Software Control Two software programs are required to configure the touch panel: • GUI Configurator • Global Configurator. Both are included on the disc provided with the TLP 350CV and are also available free on the Extron website at www.extron.com .

  • Page 35: Gui.configurator.and.global.configurator.installation

    GUI Configurator and Global Configurator installation Insert the disk provided into the computer’s CD/DVD ROM drive. If the setup program does not start automatically, run Launch.exe from the CD/DVD ROM directory in Windows “My Computer”. The opening screen will appear with the following tabs: Figure 4-1 — DVD opening menu Select the Software tab, locate the GUI Configurator program and click Install.

  • Page 36: Updating Firmware

    Configuration Software, cont’d Updating Firmware Firmware for the TLP 350CV can be upgraded using the Extron Firmware Loader utility. N The factory default IP address for the TLP 350CV is 192.168.254.254. Consult with your IT Department to ensure all IP addresses are correctly assigned. Power on a computer with internet access and ensure the computer and the TLP 350CV are connected to the same network. If it has not been previously installed, install the Extron Firmware Loader utility onto the computer.

  • Page 37: Gui Configurator

    From the toolbar click File | Open and navigate to the folder where the firmware file was saved (see step 4). Click on the file to select it. Figure 4-5 — Firmware loader, file open Click Begin. Figure 4-6 — Firmware loader, begin firmware upload The firmware transfer takes approximately 3 minutes. When the “Transfer Complete!” message appears, click File | Exit to close the Firmware Loader.
  • Page 38 Configuration Software, cont’d To use the GUI Configurator program, follow these instructions: Click on the desk top icon. A splash screen appears momentarily, then the program opens at the main screen Figure 4-7 — GUI Configurator, Main screen Use the GUI Configurator Start Options dialog box to select from •...
  • Page 39 Open and modify an existing project or template: a. Choose "Open an Existing Project" or from the File menu, select Open Project. This displays the open dialog box. b. Browse for the file or template required. Select the file and click Open. Download a project from a TouchLink Panel unit: a. Choose "Download an Existing Project from a Panel" or from the File menu, select Download Project.
  • Page 40 Configuration Software, cont’d b. The Panel Manager dialog box opens: Figure 4-10 — GUI Configurator, Panel manager Click on the Add Panel Icon to add a new panel to the list in the left pane. d. Highlight the name of the panel in the left pane to display the properties in the right pane.

  • Page 41: Global Configurator

    Global Configurator Once the interface has been designed and uploaded to the TLP 350CV, use Global Configurator to assign functions to the buttons, icons, and text that appear on the screen. This section provides an overview of the Global Configurator program. For complete information about the program, consult the Global Configurator Help File (click on Contents in the Help Menu).
  • Page 42 Configuration Software, cont’d This section provides an overview of the Global Configurator program. For complete information about the program, consult the Global Configurator Help File (click on Contents in the Help Menu or press the F1 key while within the program). N The TLP 350CV requires Global Configurator version 3.0 or later.
  • Page 43 Add a new device. This can be done by clicking on the Add Device icon in the toolbar Choose Add Device... from the Edit Menu. IP Link Device: IPL 250 GlobalViewer Tree Select Connection Method Basic <<< Name/IP Address: 192.168.254.255 Display Name: IPL 250: 192.168.254.255 Make this device a GlobalViewer Host...
  • Page 44 Configuration Software, cont’d The GC3 main screen shows the IPL 250 and available ports: Figure 4-14 — GUI Configurator, available ports Click on Touch Panel Port 1. The screen changes to show options available for the TouchPanel. To add the screen that was designed in GUI Configurator and uploaded to the TouchPanel unit, click on Click here to add one.
  • Page 45 The Add Touch Panel dialog box opens. a. Ensure the correct model is selected from the drop-down menu. b. Enter the IP address for the TouchLink Panel. Set the Telnet Port (usually 23). d. If necessary enter the password. Check the Import/Apply Layout box. Click OK.
  • Page 46 Configuration Software, cont’d The window now shows the GUI from the TouchLink panel. IPL 250: 192.168.254.254 Touch Panel Ports TLP 350CV: 192.168.254.255 Touch Panel Port 2 Figure 4-17 — GUI Configurator, Touch panel imported For complete instructions on how to assign functions to the buttons on the screen, see the Global Configurator Help File.

  • Page 47: Appendix A • Specifications, Part Numbers And Accessories

    TLP 350CV A ppendix A Specifications, Part Numbers and Accessories Specifications Included.Parts Accessories.(Optional)...
  • Page 48 Specifications, Part Numbers, Accessories Specifications Display Screen type ........Active matrix TFT color display Size ..........3.5" (8.9 cm), measured diagonally Resolution........320x240 Aspect ratio ........Standard Color depth ........18 bit, 256k colors Transparency ........8 bit alpha channel Brightness ........
  • Page 49 General External power supply ....100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated Power input requirements ... +12 VDC, 0.75 A Temperature/humidity ....Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing Cooling ...........
  • Page 50 Specifications, Part Numbers, Accessories, cont’d Enclosure dimensions C Use the appropriate metal Extron routing template or refer to the surface cutout dimensions here before cutting a hole in the furniture or other surface. Pay special attention to the direction the unit will face; the unit's connector access side is underlined. Extron is not responsible for miscut mounting holes. Top plate (outer rim) ..8.15" W x 6.65" D (20.70 cm W x 16.89 cm D) Surface cutout (inside rim) . 7.50 +0.00/-0.02" W x 6.00 +0.00/-0.02" D (19.05 +0.00/-0.05 cm W x 15.24 +0.00/-0.05 cm D) Box (under surface) ...

  • Page 51: Part Numbers (Included Parts

    Part Numbers (Included parts) Description Part number TLP 350CV (US black anodized) 60-1017-020A TLP 350CV (US brushed aluminum) 60-1017-021A TLP 350CV (EU black anodized) 60-1017-020D TLP 350CV (EU brushed aluminum) 60-1017-021D TLP 350CV (Universal - Black anodized) 60-1017-020J TLP 350CV (Universal - Brushed aluminum) 60-1017-021J TLP 350CV (Black anodized - no AC outlet) 60-1017-0200...

  • Page 52: Accessories (Optional

    Specifications, Part Numbers, Accessories, cont’d Accessories (Optional) Description Part number TLP 350CV routing template 70-694-01 Individual Buttons (See www.extron.com) German/French Button Kit 70-698-07 Cable Retractor VGA 70-678-01 Cable Retractor PC Audio 70-678-02 Cable Retractor Network 70-678-03 Cable Retractor HDMI 70-678-04 Cable Retractor USB 70-678-05 Cable Retractor DVI...
  • Page 53 TLP 350CV A ppendix B Reset Modes and Button Replacement Reset.Modes Button.Kit.Contents Button.Replacement...

  • Page 54: Appendix B • Reset Modes And Button Replacement

    Reset Modes and Button Replacement Reset Modes The TLP 350CV and TLP 350CV have four reset modes that correspond to four of the five reset modes for the IP Link controllers. The modes are initiated by pressing the Reset button. Using a paper clip, push through the reset access hole on the right side of the faceplate as shown below.
  • Page 55 TLP 350CV and TLP 350CV Reset Mode Summary Mode Mode Activation Result Purpose/Notes Hold the reset button while applying The TLP 350CV reverts to the factory This mode reverts to the factory power. default firmware. default firmware version if incompatibility issues arise with After a mode 1 reset, update the Event scripting does not start if the user-loaded firmware.

  • Page 56: Button Kit Contents

    Reset Modes and Button Replacement, cont’d Button Kit Contents All ten positions of front panel buttons may be replaced with buttons having alternate labels. The Default buttons are preinstalled on the TLP 350CV. The included button accessory kit offers several alternate titles. Default Buttons 10 preinstalled buttons with the following labels DISPLAY ON...

  • Page 57: Button Replacement

    Button Replacement To replace one or more buttons on the front panel of the TLP 350CV, follow these instructions. Remove power from the TLP 350CV by removing the power cord or unplugging the power supply. The faceplate is snapped on and held in four places, two on top and two at the bottom of the faceplate.
  • Page 58 Reset Modes and Button Replacement, cont’d TLP 350CV • Reset Modes and Button Replacement...
  • Page 59 Extron Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase; touchscreen display and overlay components are covered for 1 year. In the event of malfunction during the warranty period attributable directly to faulty...
  • Page 60 Inside USA / Canada Only Inside Europe Only Inside Asia Only Inside China Only Inside USA / Canada Only +1.919.863.1794 +31.33.453.4040 +65.6383.4400 +86.21.3760.1568 +1.714.491.1500 +1.919.863.1797 FAX +31.33.453.4050 FAX +65.6383.4664 FAX +86.21.3760.1566 FAX +1.714.491.1517 FAX © 2009 Extron Electronics. All rights reserved.
