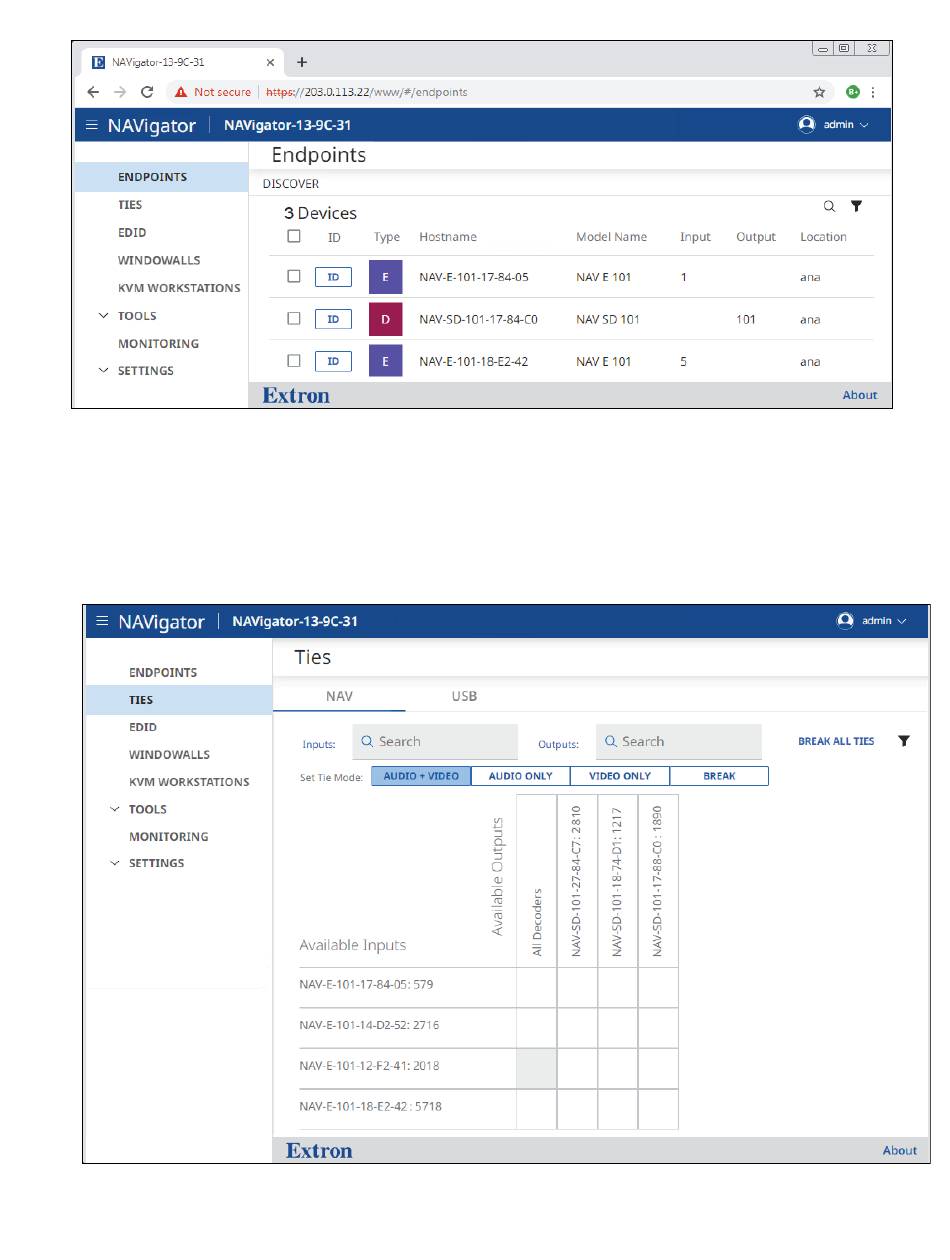

Figure 11. Endpoints Page with Discovered and Assigned Endpoints

Ties Page

The Ties page allows you to make or break ties to create or change the input/output matrix in a NAV system. To
access the Ties page, if necessary, click the Menu icon (see figure 12,
opens, displaying a grid of endpoints assigned to this NAVigator and indicates existing ties. See
System
on page 28 for a detailed description of assigning and tying endpoints as part of creating a system.
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Figure 12. Ties Page
). Click TIES (
1
NAVigator System Manager • HTML Operation
). The Ties page
2
Creating a NAV
13
