Front Panel Connection and Indicators
CONFIG
e
A
A A

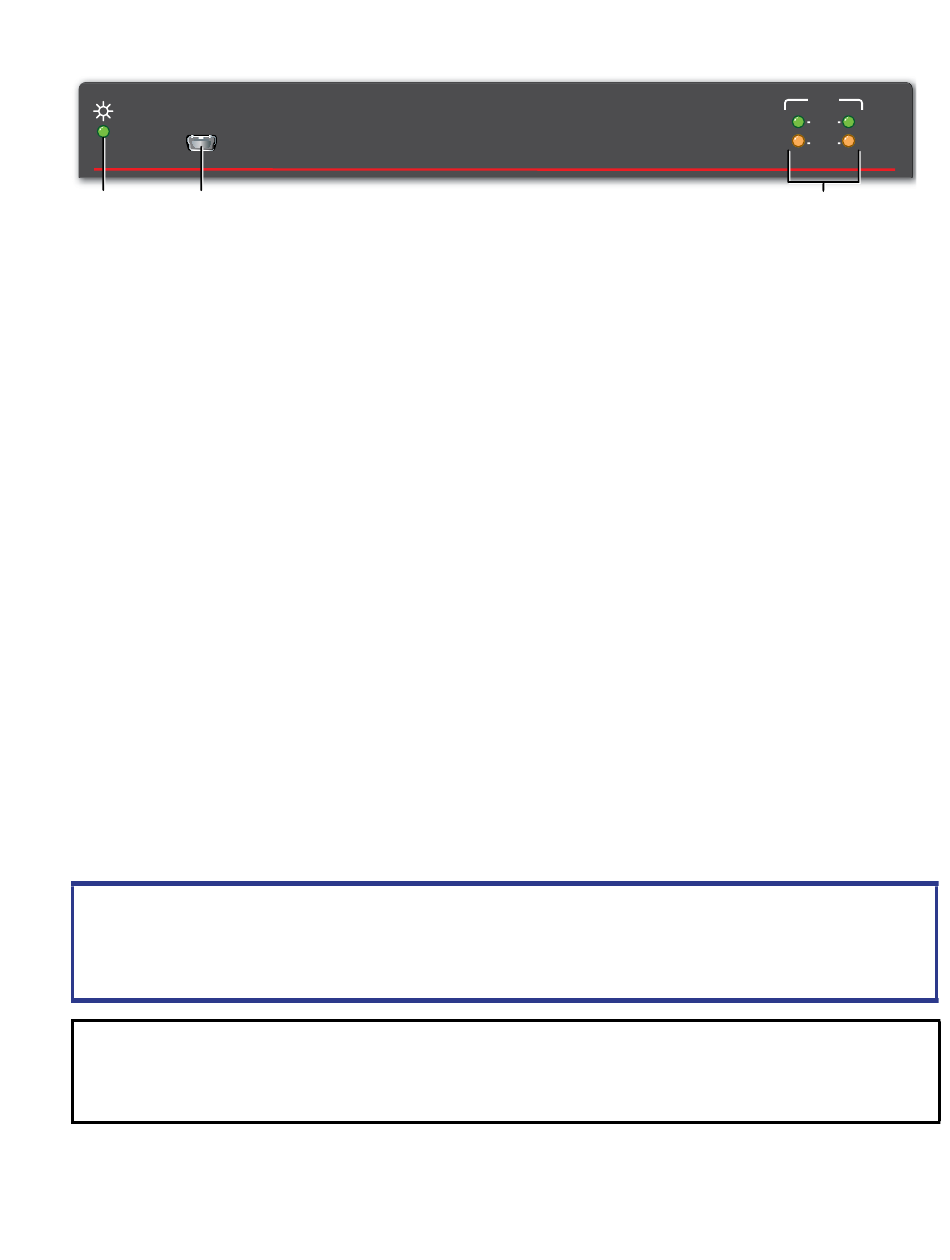

Figure 5.
NAVigator Front Panel Features
Power LED — Indicates the unit power status.
A
•
Blinking — The unit is receiving power, either locally or remotely (via PoE) and is booting up.
•
Lit — The unit is receiving power, either locally or remotely (via PoE) and is operational.
Configuration port — Connect to this USB mini-B port (USB 2.0) for product configuration, management and
B
firmware updates.
LAN LEDs (OOB and NAV) — Indicate the status of the ports.
C
•
LNK (green) — Indicates the status of the link.
•
Blinking — A network link has been established at 10/100 Mbps.
•
Lit — A network link has been established at 1 Gbps.
•
ACT (blinking amber) — Network activity is present. The blink rate corresponds to activity.
Basic Operation
Configuration and Other Operations
Configuration and more complex operation of the system is accomplished via embedded web pages (see
HTML
Operation, beginning on page 9); Extron Toolbelt, Global Configurator Plus, Global Configurator
Professional, or Global Scripter (see
starting on page 132).
Reset Operations
The rear panel RESET button initiates three modes of reset. The RESET button is recessed, so use an Extron
Tweeker, a pointed stylus, or ballpoint pen to access it.
See the
table
on page 8 for a summary of the modes.
ATTENTION: Review the reset modes carefully. Using the wrong reset mode may result in unintended loss of
flash memory programming, port reassignment, or a controller reboot.
ATTENTION : Étudier de près les différents modes de réinitialisation. Appliquer le mauvais mode
de réinitialisation peut causer une perte inattendue de la programmation de la mémoire flash, une
reconfiguration des ports ou une réinitialisation du contrôleur.
NOTE:
• The modes listed close all open IP connections and close all sockets.
• For Reset IP Setting and Factory Reset, nothing happens if the momentary press does not occur within
1 second.
B
B B
Control System
on page 128), or SIS commands (see
NAVigator System Manager • Installation and Basic Operation
LAN
OOB
NAV
LNK
ACT
NAVigator
C
C C
SIS
Operation,
7
