Edit input and output numbers
By default, input and output numbers are assigned by the endpoints. Being generated by an algorithm, the
numbers appear random. If desired, change them as follows:
1. Click in the desired Input or Output field (see figure 42,
increment or decrement the field value. The valid range is from 1 to 4096.
NOTE: Each input requires a unique number and each output requires a unique number.
TIPS:
• Extron recommends sequential I/O numbering across the NAV system.
• If you sequentially number inputs and outputs, the NAV system function is similar to a traditional
Extron matrix switcher.
B B B B B B B B B B B B B B B B B B
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3

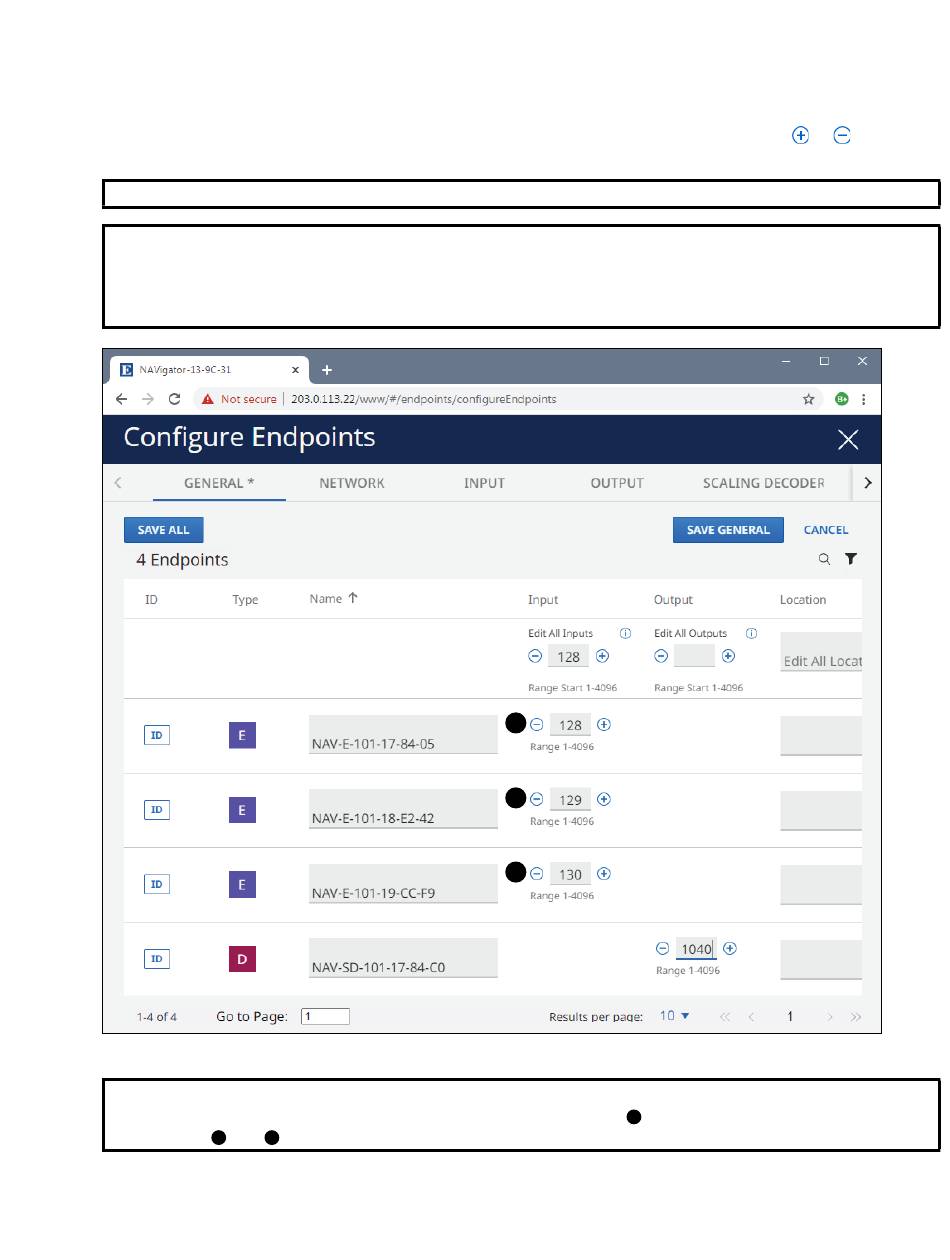

Figure 42. Edit input and output numbers
TIP: If you enter a value in either the Edit All Inputs or Edit All Outputs field (
endpoint listed below the edited field is changed to that number (
numbers ( and
A2
) increment as the endpoints are listed from top to bottom.
