Structure - INVT Goodrive270 Series Operation Manual

Goodrive270 series VFD for fan and pump
Note:
 n = 1 or 3
 The parentheses "()" in the "VFD model" column are used to distinguish models when selecting
different product configurations. Please note that 11–22kW models can only be configured with
one from the built-in DC reactor (L1) and the built-in C2 filter.
 The rated output current is the output current when the output voltage is 380V.
 The data in the "Input current" column are measured at an input voltage of 380V. The data in "()"
are measured when a DC reactor is configured.

3.7 Structure

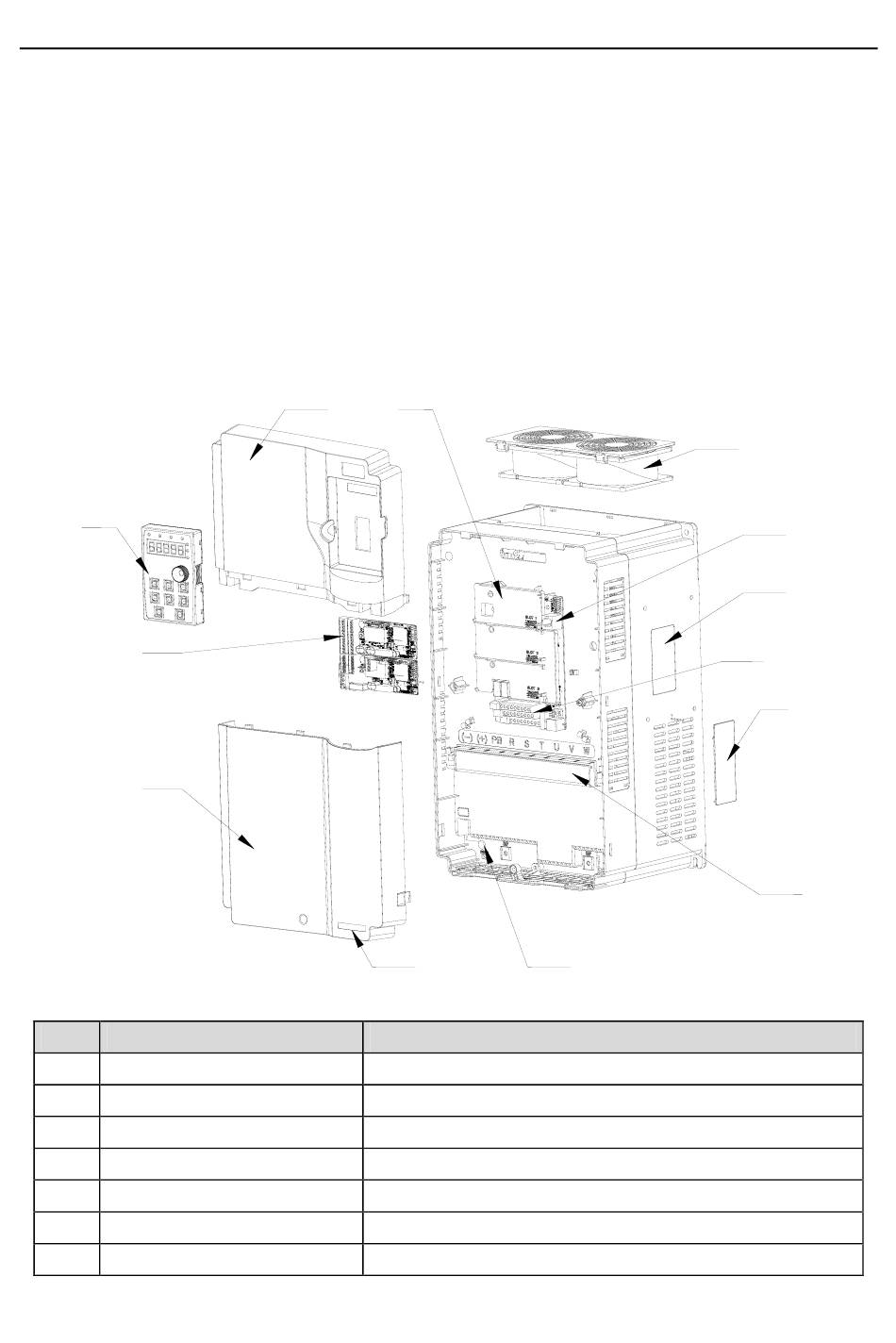

The VFD structure is shown in the following figure (taking the 380V 45kW VFD model as an example).
2
4
3
No.
1 Upper cover
2
3 Lower cover
4 Expansion card
5 Baffle of control board
6 Cooling fan
7 Keypad interface
1
Figure 3-5 Product structure
Name
Keypad
5
13
Protects internal components and parts.
For details, see section 5.2 Keypad operation.
Protects internal components and parts.
Optional. For details, see Appendix A Expansion card.
Protects the control board and install expansion cards.
For details, see chapter 8 Maintenance.
Connects the keypad.
-13-
Product overview
12
Description
6
7
8
9
10
