Goodrive270 series VFD for fan and pump
Installation guidelines

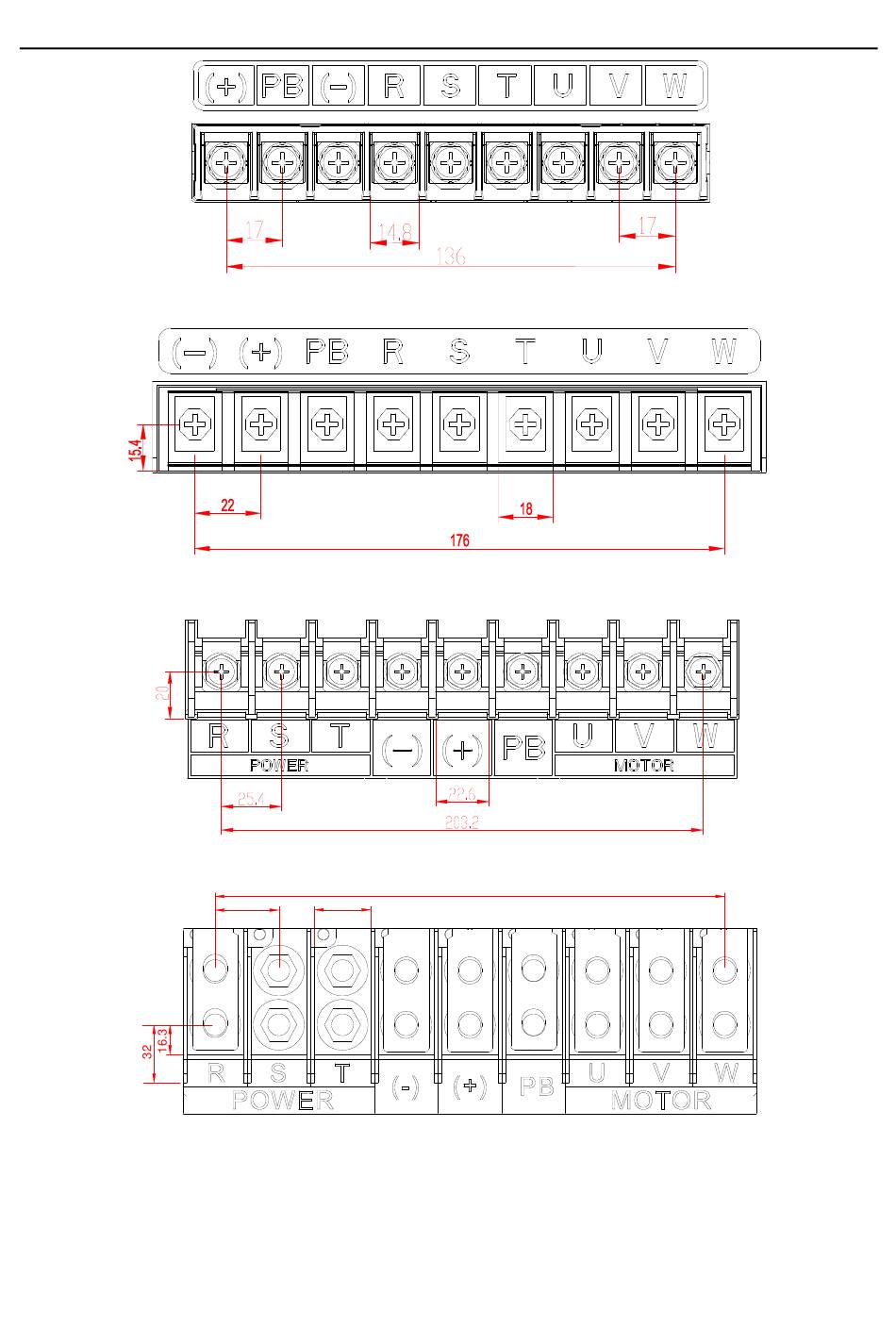

Figure 4-23 Main circuit terminal for 3PH 380V 30–37kW (unit: mm)
Figure 4-24 Main circuit terminal for 3PH 380V 45kW (unit: mm)
Figure 4-25 Main circuit terminal for 3PH 380V 55–90kW (unit: mm)
280
35
31
Figure 4-26 Main circuit terminal for 3PH 380V 110–132kW (unit: mm)
-30-
