5.4.5 Editing a parameter list

The parameters in the parameter list in stopped state can be added as needed (through the menu of
user defined home parameters), and the list can also be edited such as "Move up", "Move down",
"Delete from the list", and "Restore default". The edit function is shown in the following.
16:02:35 Fwd Local Ready
Stopped-state parameters
Running-state parameters
Back Home
Press key to enter edit interface, select the operation needed, and press the
key or key to confirm the edit operation and return to the previous menu (parameter list), the
returned list is the list edited. If the
selectingan edit operation, it will return to the previous menu (parameter list remain unchanged).
Note: For the parameter objects in the list header, move-up operation will be invalid, and the same
principle can be applied to the parameter objects in the list footer; after deleting a certain parameter,
the parameter objects under it will be moved up automatically.
The items in the parameter list in running state can be added as needed (through the menu of user
defined home parameters), and the list can also be edited such as "Place top", "Move up", "Move
down", "Delete from the list", and "Restore default parameters". The edit function is shown in the
interface below.
16:02:35 Fwd Local Ready
Stopped-state parameters
Running-state parameters
Back Home
The parameters of user defined parameter setting can be added, deleted or adjusted as needed, such
as "Place top", "Move up", "Move down", "Delete from the list", and "Restore default parameters"; the
adding function can be set in a certain function code in a function group. The edit function is shown in
the figure below.
16:02:35 Fwd Local Ready
Common parameter setting
Parameter setting
State monitoring/Fault record
Motor parameter autotuning
Parameter backup/Restore default
System setting
Back Home
01: GD270 16:02:35
P17.00：Set Freq
P17.11：DC Bus Volt
P17.12：DigiInputTrmlState
P17.13：DigiOutpTrmlState
P17.23：PID Ref Val
P17.24：PID Fdbk Val
Sele

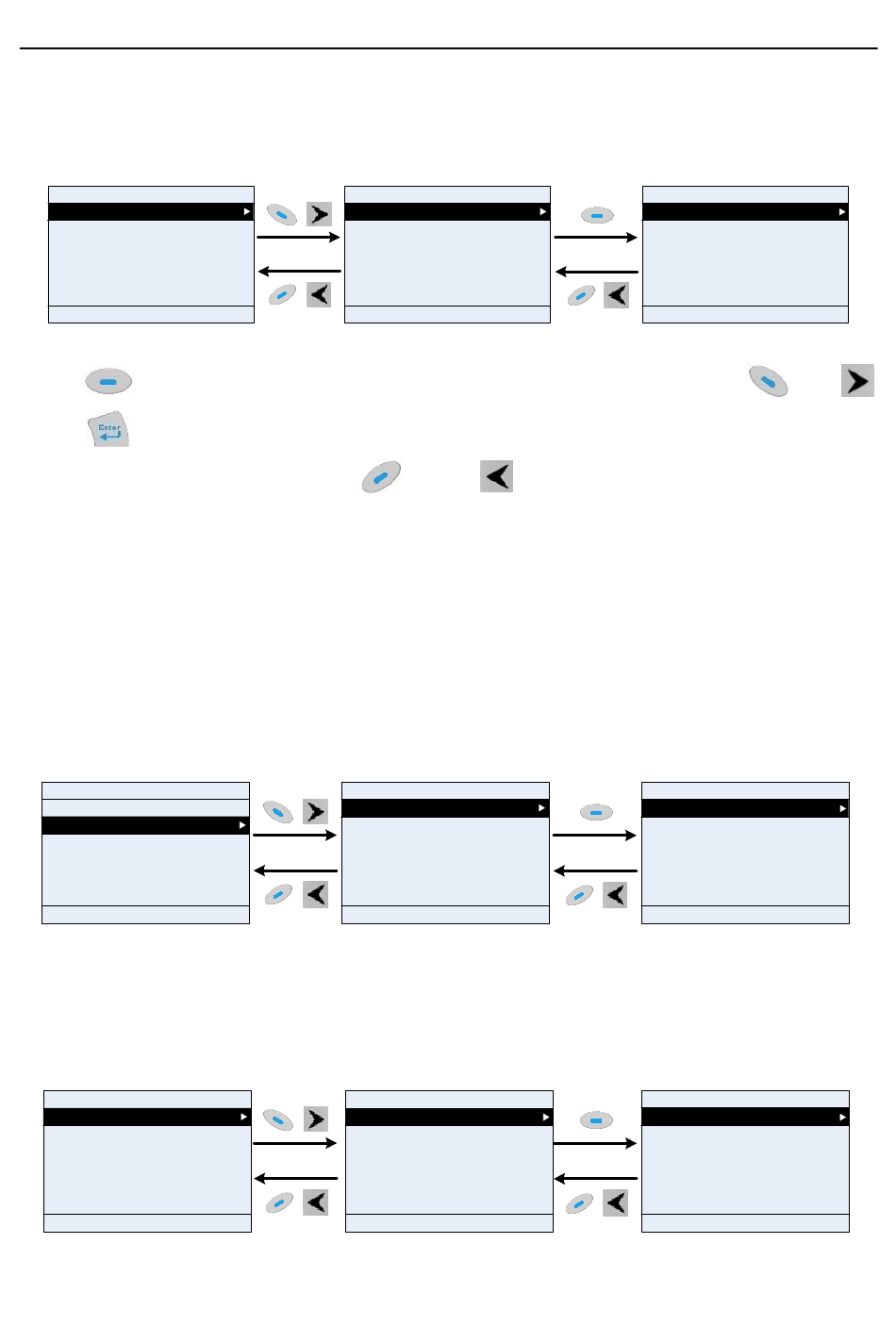

Figure 5-16 List edit 1
01: GD270 16:02:35
P17.01: OutpFreq
P17.00: Set Freq
P17.11: DC Bus Volt
P17.03: Outp Volt
P17.04: Outp Cur
P17.05: Motor Speed
Sele
Figure 5-17 List edit 2
16:02:35
01: GD270
P00.10: Freq Set by Keypad
P00.00: Speed Ctrl
P00.11: ACC Time 1
P00.12: DEC time 1
P00.01: Run Cmd Channel
P00.13: Run Direction
Sele Back
Figure 5-18 List edit 3
Fwd 01: GD270
Local Ready
Back Edit OK
key or key is pressed in edit interface without
Fwd Local Ready 01: GD270
Back Edit OK
Fwd
Local Ready 01: GD270
Sele
Edit
