5.1 What this chapter contains

This chapter instructs you how to use the VFD keypad and commission the VFD common functions.

5.2 Keypad operation

Goodrive270 series VFD have been equipped with LED keypads as standard configuration. You can
use the keypad to control the start and stop, read status data, and set parameters of the VFD. You
can also use the optional LCD keypad which supports ten-row HD display in multiple languages, with
parameter copy function. Its overall size is same as the LED keypad.

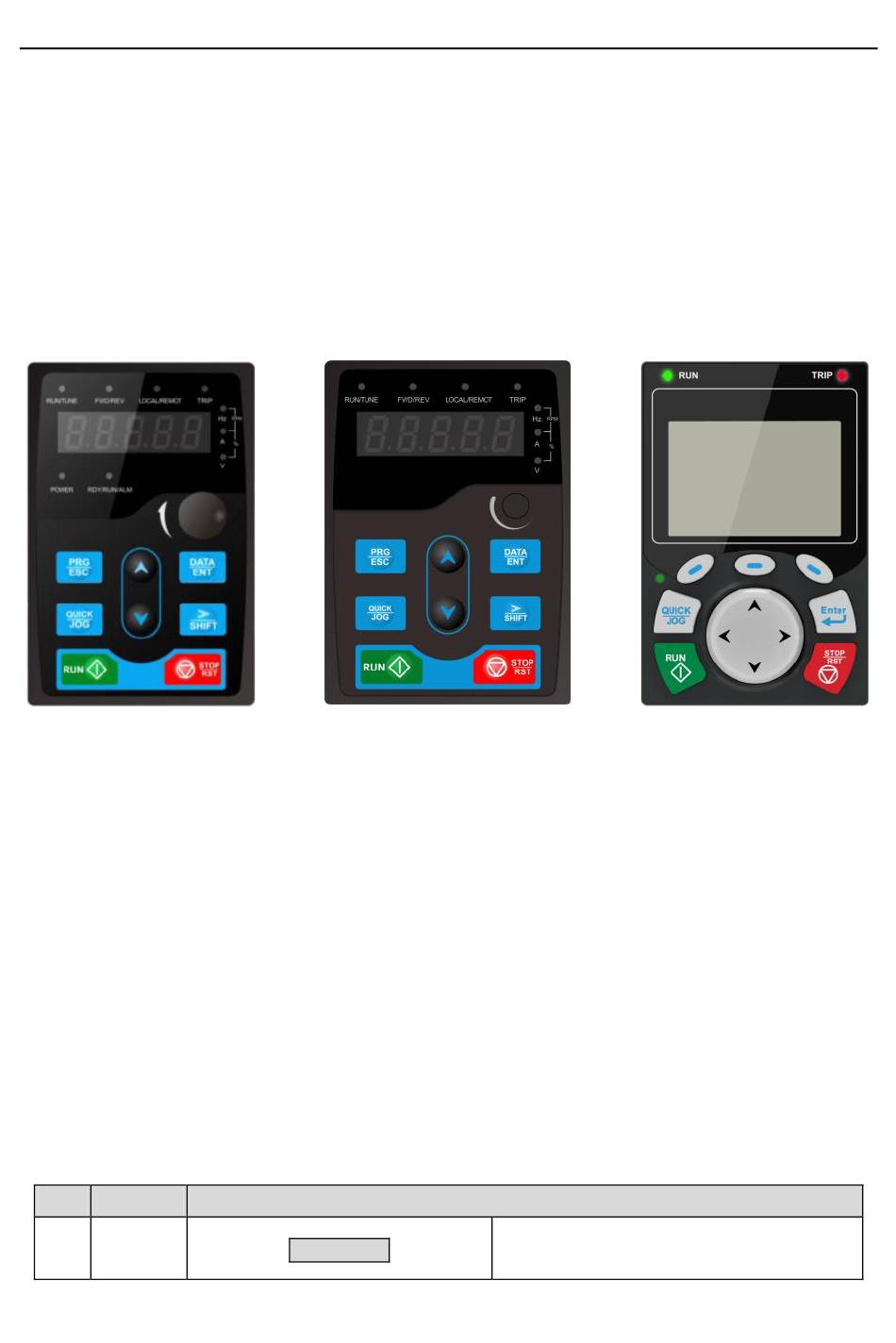

Figure 5-1 Standard LED
keypad
Note:
 The film keypad is a standard part for the 1.5–22kW models. When installing the keypad
externally, you can purchase the independment LED keypad and bracket.
 The external keypad is a standard part for the 30–500kW models. When installing the keypad
externally, you just need to purchase the bracket.

5.3 LED keypad (BOP-270) display and operation

The VFD keypad can display the stopped-state parameters, running-state parameters, fault alarm
status, and function parameter editing status.
You can operate the VFD by using the keypad. For details about function code descriptions, see the
function code list.
No. Name
Status
1
indicator

5 Basic operation guidelines

Figure 5-2 Film keypad
Table 5-1 LED keypad (BOP-270) component description
RUN/TUNE
Description
VFD running status indicator.
Off: The VFD is stopped.
-41-
Basic operation guidelines
Figure 5-3 Optional LCD
keypad
