Goodrive270 series VFD for fan and pump

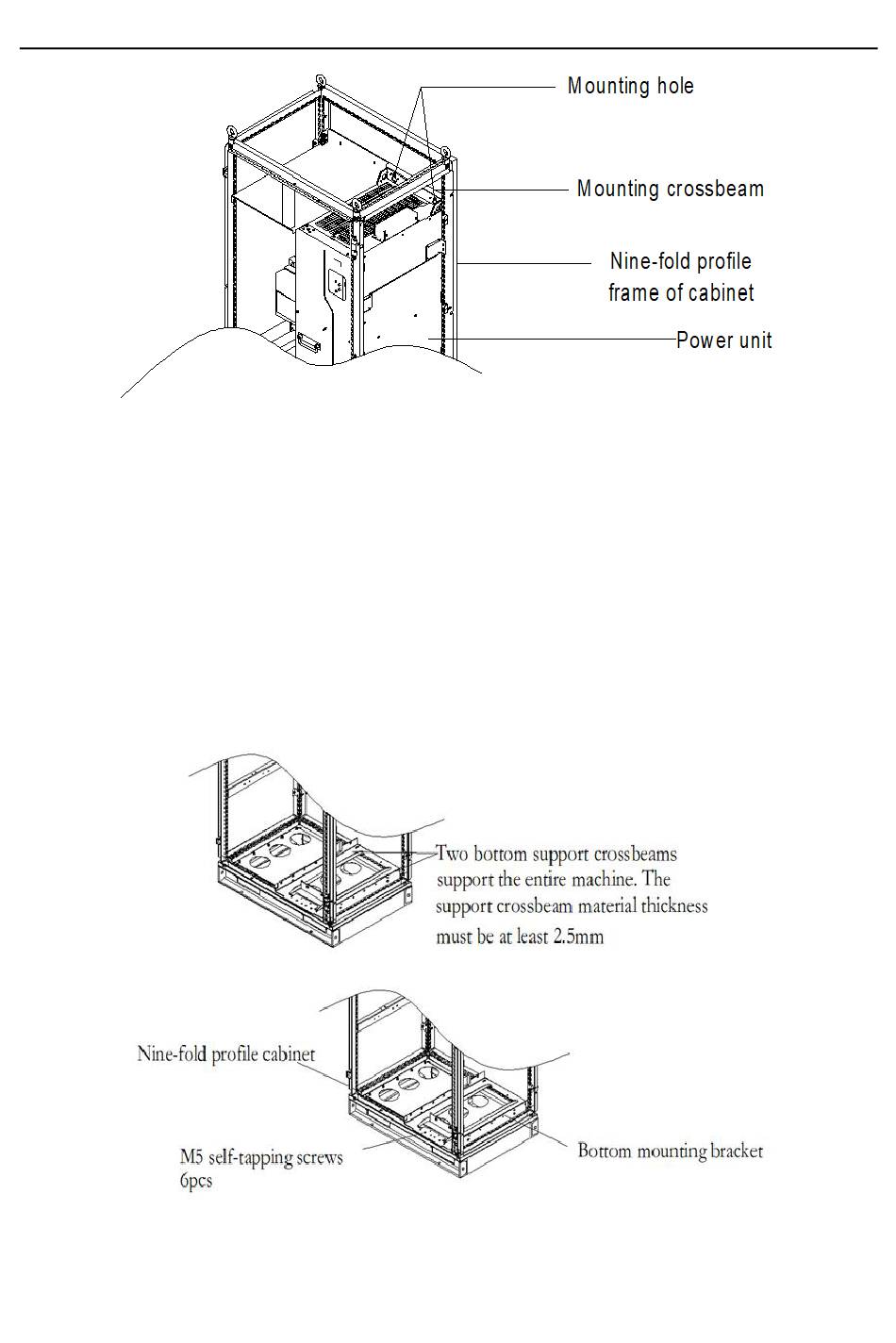

Figure 4-12 Three-dimension view of mounting a GD270 280–500kW VFD in a cabinet
2.
Fix the bottom support crossbeams and mounting bracket. (See Figure 4-13.)
(1)
Use eight M8 cage nuts to fix the two bottom support crossbeams to the base of the nine-fold
profile cabinet frame. (The support crossbeams are user designed, T≥2.5mm, firmly installed.)
(2)
Fix the mounting bracket to the nine-fold profile cabinet frame base with six M5 self-tapping
screws, as shown in the following figure. For details about mounting bracket dimensions, see
Figure C-15 and Table C-8.
(3)
If you use another type of cabinet but not nine-fold profile cabinet, the fixing holes for the
mounting bracket need to be drilled and assembled on site.
3.
Assemble the mounting rail (optional part).
Figure 4-13 Bottom bracket mounting
-24-
Installation guidelines
