INVT Goodrive270 Series Operation Manual page 58

Goodrive270 series VFD for fan and pump
Item
(11)
Display area (12)
(13)
Others (14)
(15)
The LCD has different display areas, which displays different contents under different interfaces. The
figure below is the main interface of stop state.

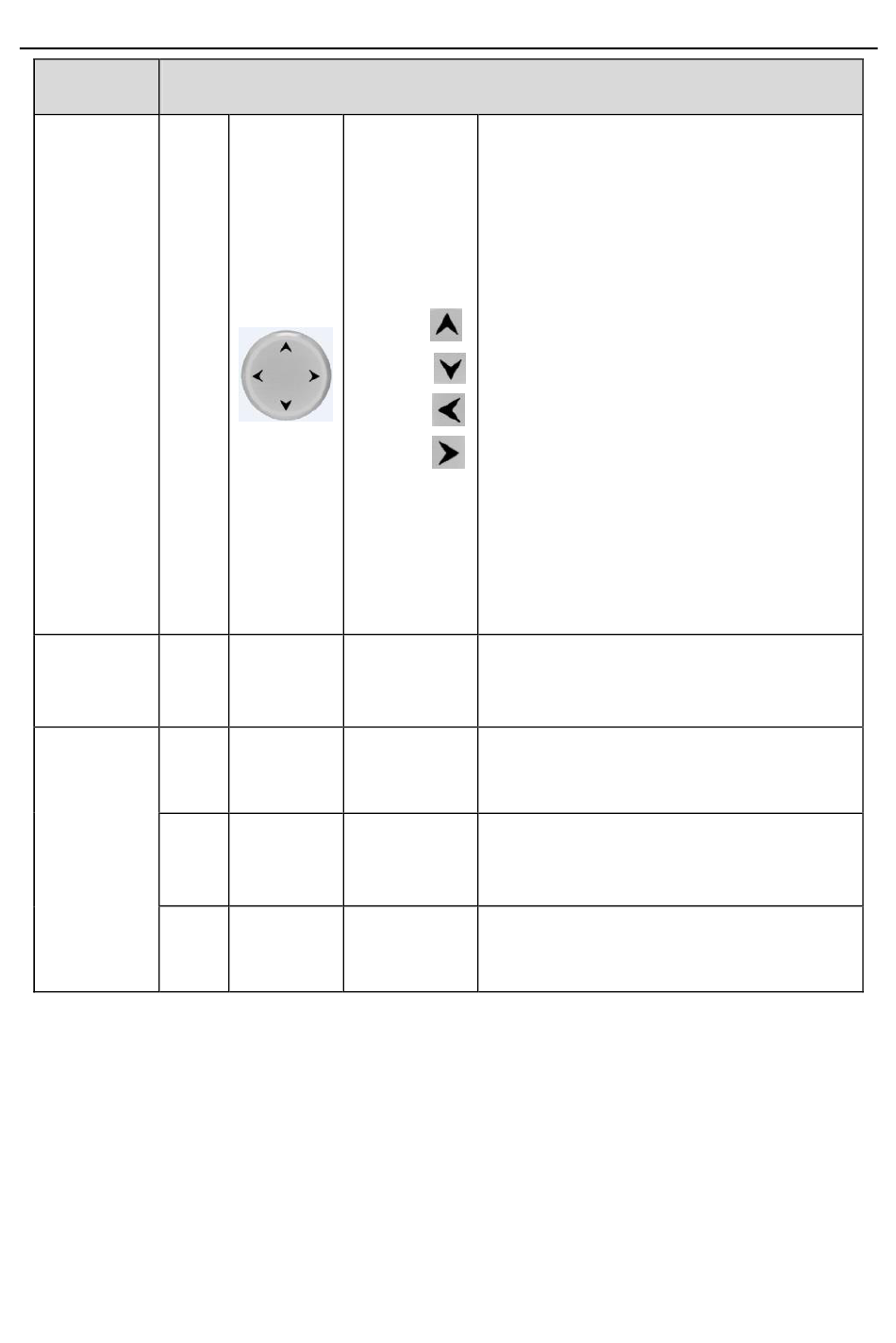

Direction key
UP:
DOWN:
LEFT:
RIGHT:
LCD Display screen
RJ45
RJ45 interface
interface
Battery Clock battery
cover cover
USB Mini USB
terminal terminal
Instruction
UP: The function of UP key varies with
interfaces, such as shifting up the displayed
item, shifting up the selected item, and
changing digits;
DOWN: The function of DOWN key varies
with interfaces, such as shifting down the
displayed item, shifting down the selected
item, changing digits;
LEFT: The function of LEFT key varies with
interfaces, such as switch over the
monitoring interface, such as shifting the
cursor leftward, exiting current menu and
returning to previous menu;
RIGHT: The function of RIGHT key varies
with interfaces, such as switch over the
monitoring interface, shifting the cursor
rightward, and entering the next menu.
240×160 dot-matrix LCD; display three
monitoring parameters or six sub-menu
items simultaneously
RJ45 interface is used to connect to the
VFD.
Remove this cover when replacing or
installing clock battery, and close the cover
after battery is installed
Mini USB terminal is used to connect to the
USB flash drive through an adapter.
-48-
Basic operation guidelines
