INVT Goodrive270 Series Operation Manual page 228

Goodrive270 series VFD for fan and pump
Function
Name
code
Overload pre-alarm
P11.09
detection level
Overload pre-alarm
P11.10
detection time
Underload
P11.11 pre-alarm detection
threshold
Underload
P11.12 pre-alarm detection
time
Fault output
P11.13 terminal action upon
fault occurring
Speed deviation
P11.14
detection value
Speed deviation
P11.15
detection time
Description

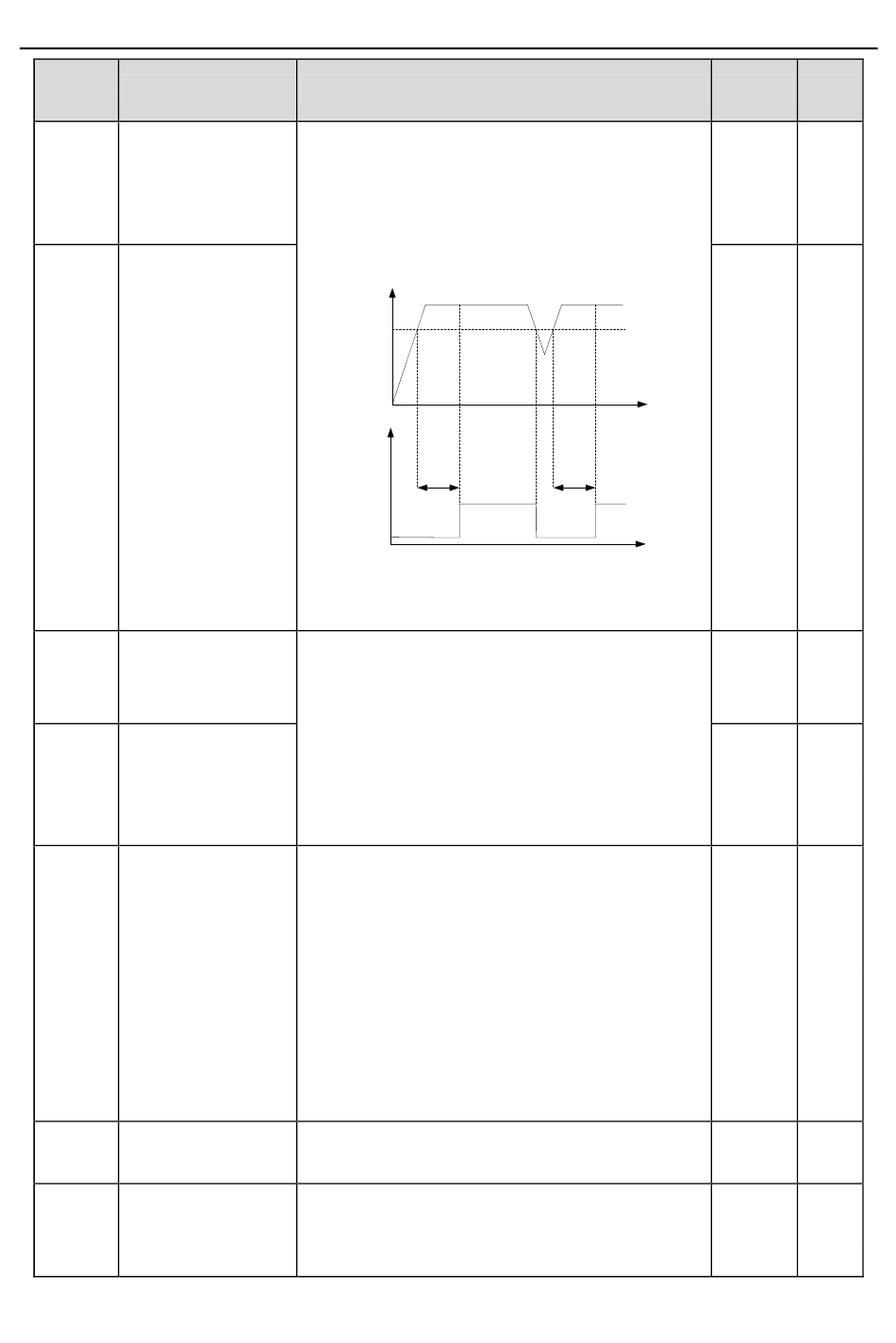

If the VFD or motor output current is larger than
the overload pre-alarm detection level (P11.09),
and the duration exceeds the overload
pre-alarm detection time (P11.10), overload
pre-alarm signal will be outputted.
Output current
Overload pre-alarm
threshold
Pre-alarm time t
Y1,
RO1, RO2
P11.09 setting range: P11.11–200.0%
P11.10 setting range: 0.1–3600.0s
Underload pre-alarm signal will be outputted if
the output current of the VFD or motor is lower
than underload pre-alarm detection level
(P11.11), and the duration exceeds underload
pre-alarm detection time (P11.12).
P11.11 setting range: 0%–P11.09
Setting range of P11.12: 0.1–3600.0s
Used to set the action of fault output terminals at
undervoltage and fault reset.
0x00–0x11
Ones place:
0: Act upon an undervoltage fault
1: Do not act upon an undervoltage fault
Tens place:
0: Act during automatic reset
1: Do not act during the automatic reset period
0.0–50.0%
Used to set the speed deviation detection value.
0.0–10.0s (No speed deviation protection for the
value=0.0)
Used to set the speed deviation detection time.
-218-
Function parameter list
Default Modify
Type G:
150%
Type F:
120%
Time t
1.0s
Pre-alarm time t
Time t
50%
1.0s
0x00
10.0%
2.0s
○
○
○
○
○
○
○
