Floor Mounting Dimensions - INVT Goodrive270 Series Operation Manual

Goodrive270 series VFD for fan and pump
C.4.3 Floor mounting dimensions
Outline dimensions
VFD model
220–250kW
280–355kW
400–500kW
For details about the base mounting bracket, see Figure C-15 and Table C-8.

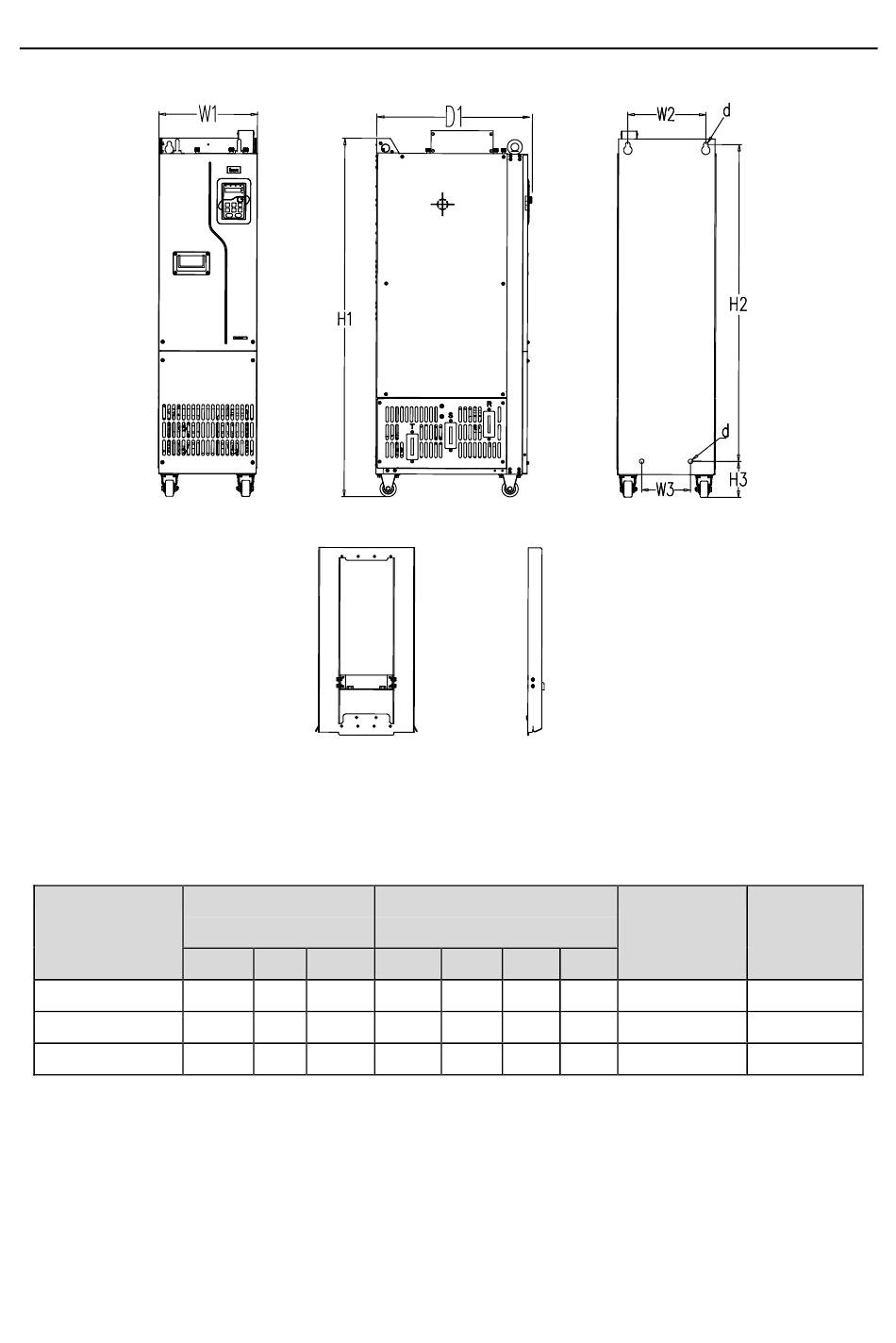

Figure C-13 380V 220–500kW VFD floor mounting diagram
Table C-6 380V 220–500kW VFD floor mounting dimensions
(mm)
W1 H1 D1
303 1108 477
330 1288 552
330 1398 552
Base mounting bracket
Mounting hole distance
(mm)
H2 H3 W2
980 111 240
1150 122 225
1280 101 240
-341-
Dimension drawings
Hole diameter
W3
150 ø 14
185 ø 13
200 ø 13
Fixing
screw
M12
M10
M10
