Goodrive270 series VFD for fan and pump
Note: During vertical installation, you must install the air baffle, otherwise, the VFD will experience
mutual interference, and the heat dissipation effect will be degraded.

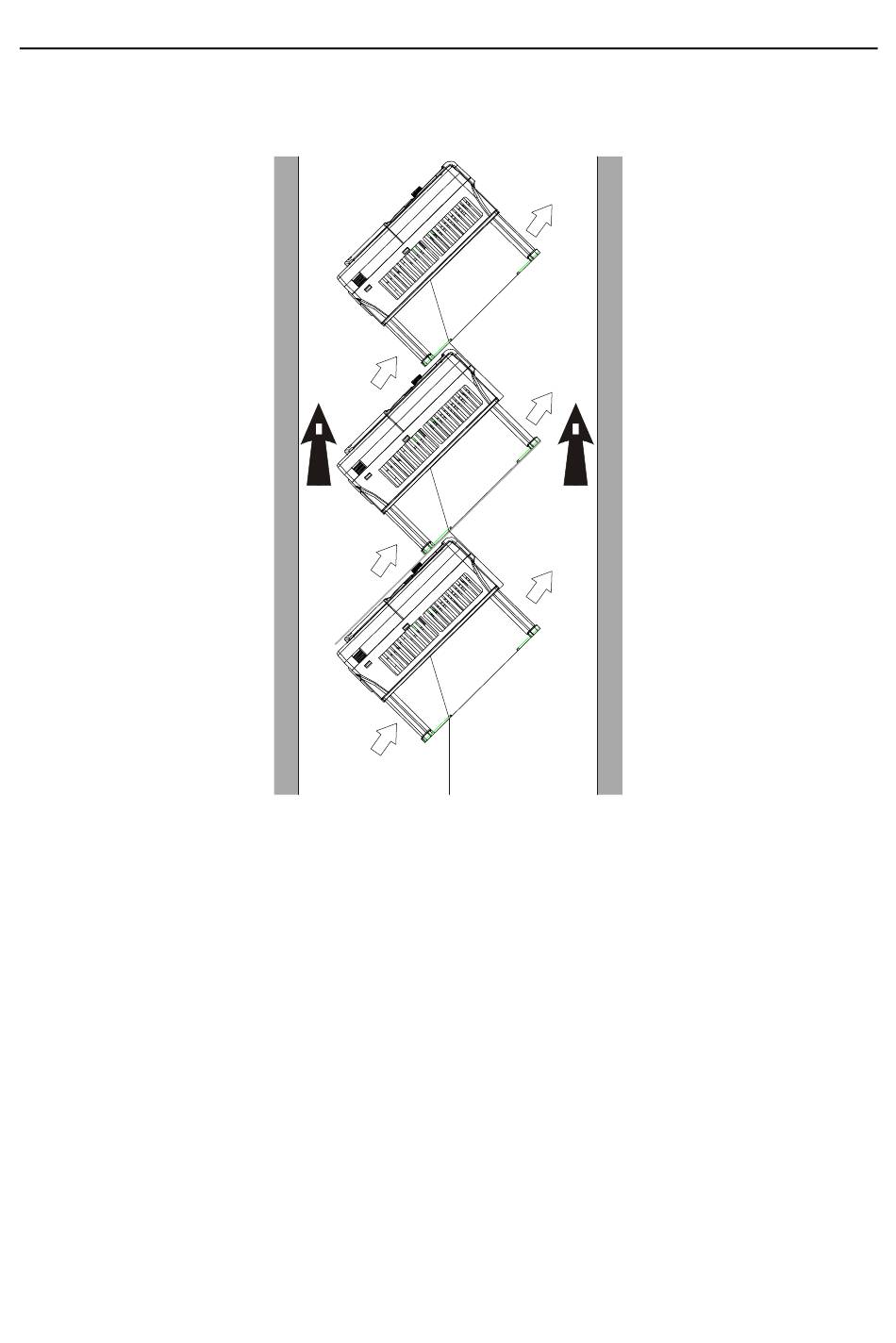

4.2.7 Tilted installation
Note: During tilted installation, it is a must to ensure the air inlet duct and air outlet duct are separated
from each other to avoid mutual interference.
4.2.8 Cabinet installation
4.2.8.1 Heat dissipation description
GD270 220–500kW models (L1/L3) can be mounted in cabinets. Heat dissipation must be considered
for the cabinet mounting method.
Figure 4-7 shows how to mount the VFD in a direct exhaust cabinet (without a fan at the top).
Cold
air
Cold
air
Cold
air
Figure 4-6 Tilted installation
-19-
Installation guidelines
Hot
air
Hot
air
Hot
air
