Goodrive270 series VFD for fan and pump
As shown in Figure 4-14, assemble the mounting rail, align the two front hooks with the nine-fold
profile notch, and snap them into place.
4.
Push the VFD into the cabinet.

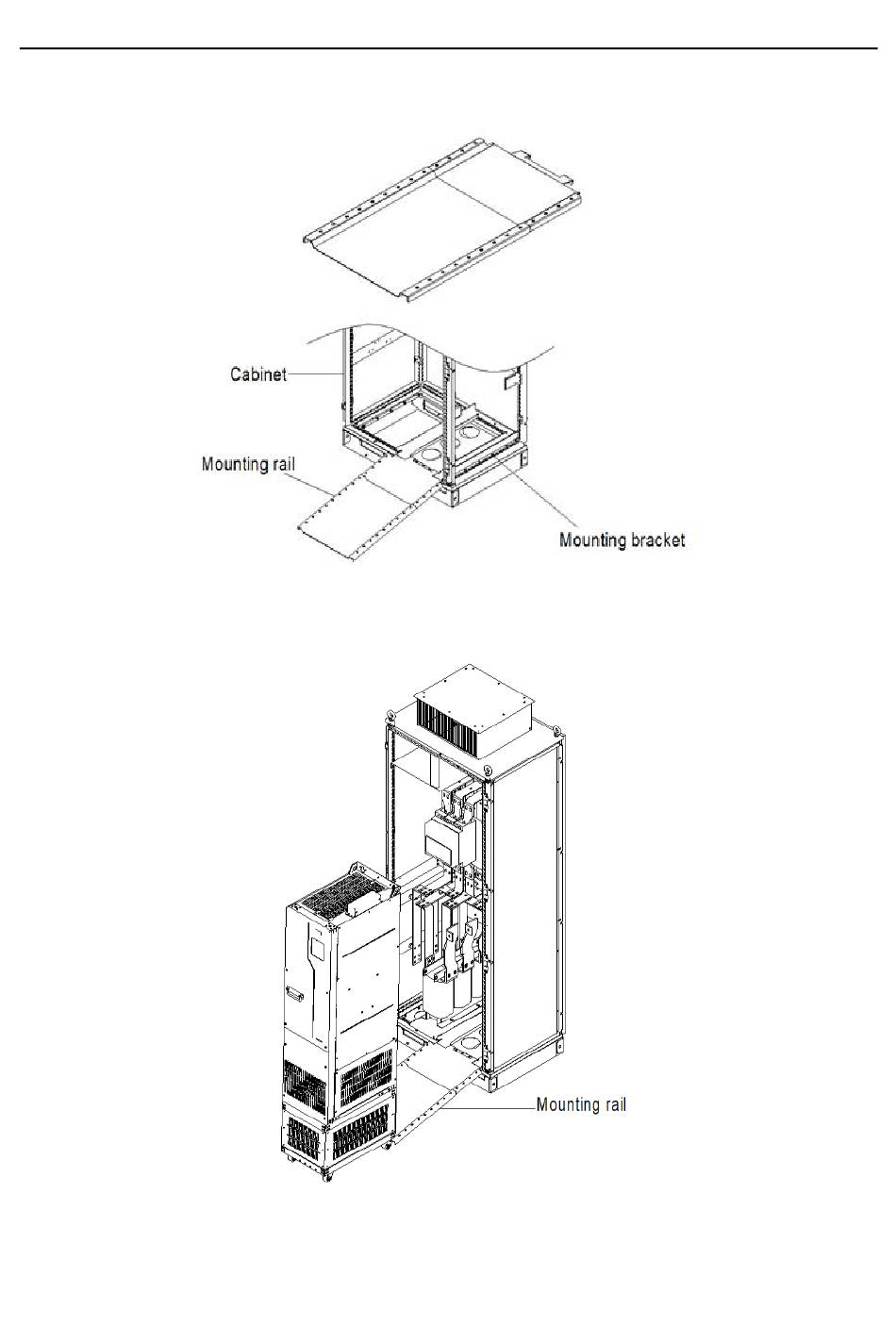

Figure 4-14 Mounting rail
Figure 4-15 Aligning the VFD casters with the mounting rail
-25-
Installation guidelines
