Goodrive270 series VFD for fan and pump

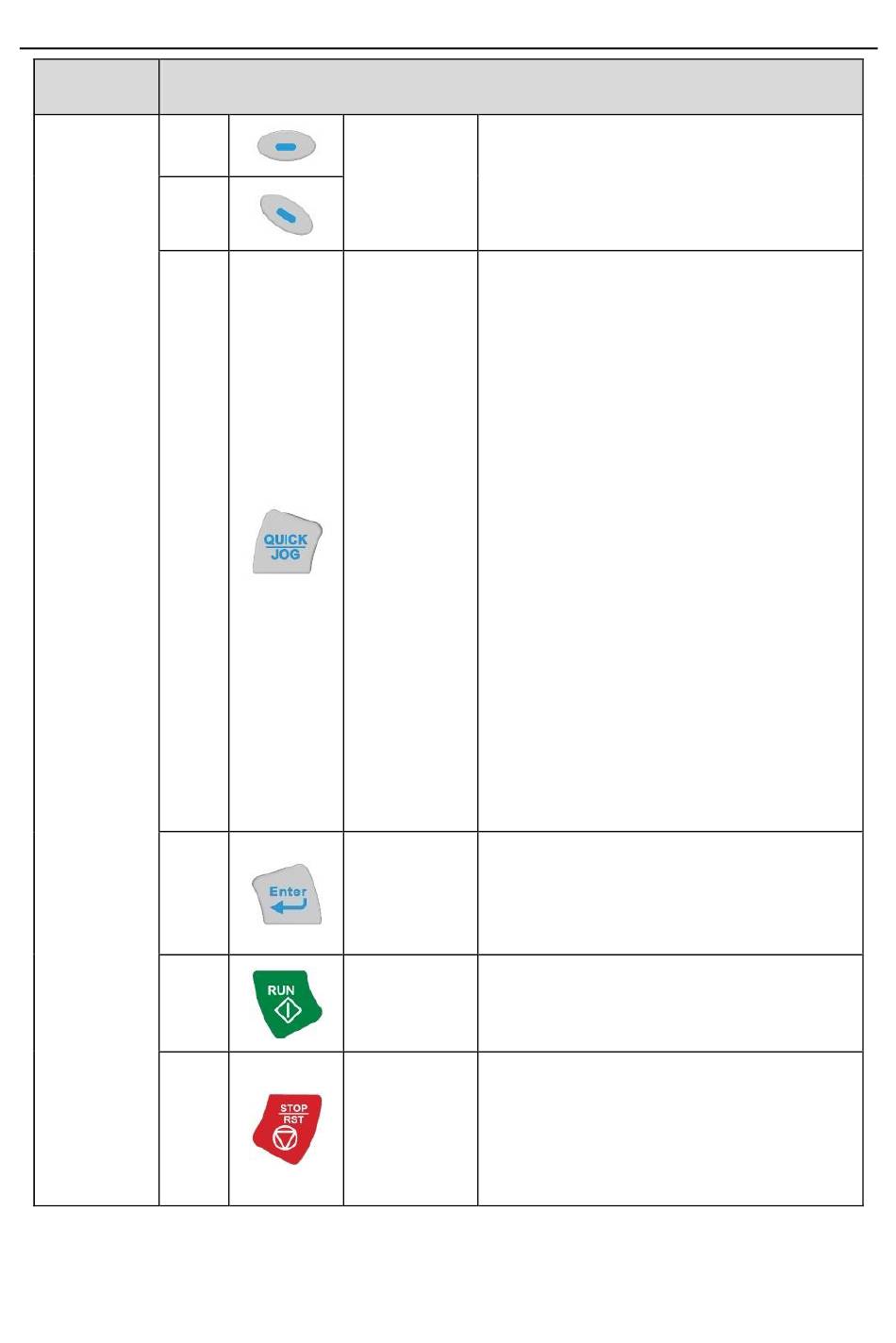

Item
(5)
(6)
(7)
(8)
(9)
(10)
Instruction
The function of function key is displayed in
the footer
Re-definable. It is defined as JOG function
by default, namely jogging. The function of
short-cut key can be set by the ones of
P07.02, as shown below.
0: No function
1: Jogging (linkage indicator (3); logic : NO);
2: Reserved
3: FWD/REV switchover (linkage indicator
(3); logic: NC)
Short-cut key 4: Clear UP/DOWN setting (linkage indicator
(3) logic: NC)
5: Coast to stop (linkage indicator (3); logic:
NC)
6: Switching running command reference
mode in order (linkage indicator (3); logic:
NC)
7: Reserved
Note: After restoring to the default value, the
default function of short-cut key (7) is 1.
The function of confirmation key varies with
Confirmation menus, such as confirming parameter setup,
key
confirming parameter selection, and entering
the next menu.
Under keypad operation mode, the running
Running key key is used for running operation or
autotuning operation.
During running state, press the Stop/Reset
key can stop running or autotuning; this key
Stop/
is limited by P07.04. During fault alarm state,
Reset key
all the control modes can be reset by this
key.
