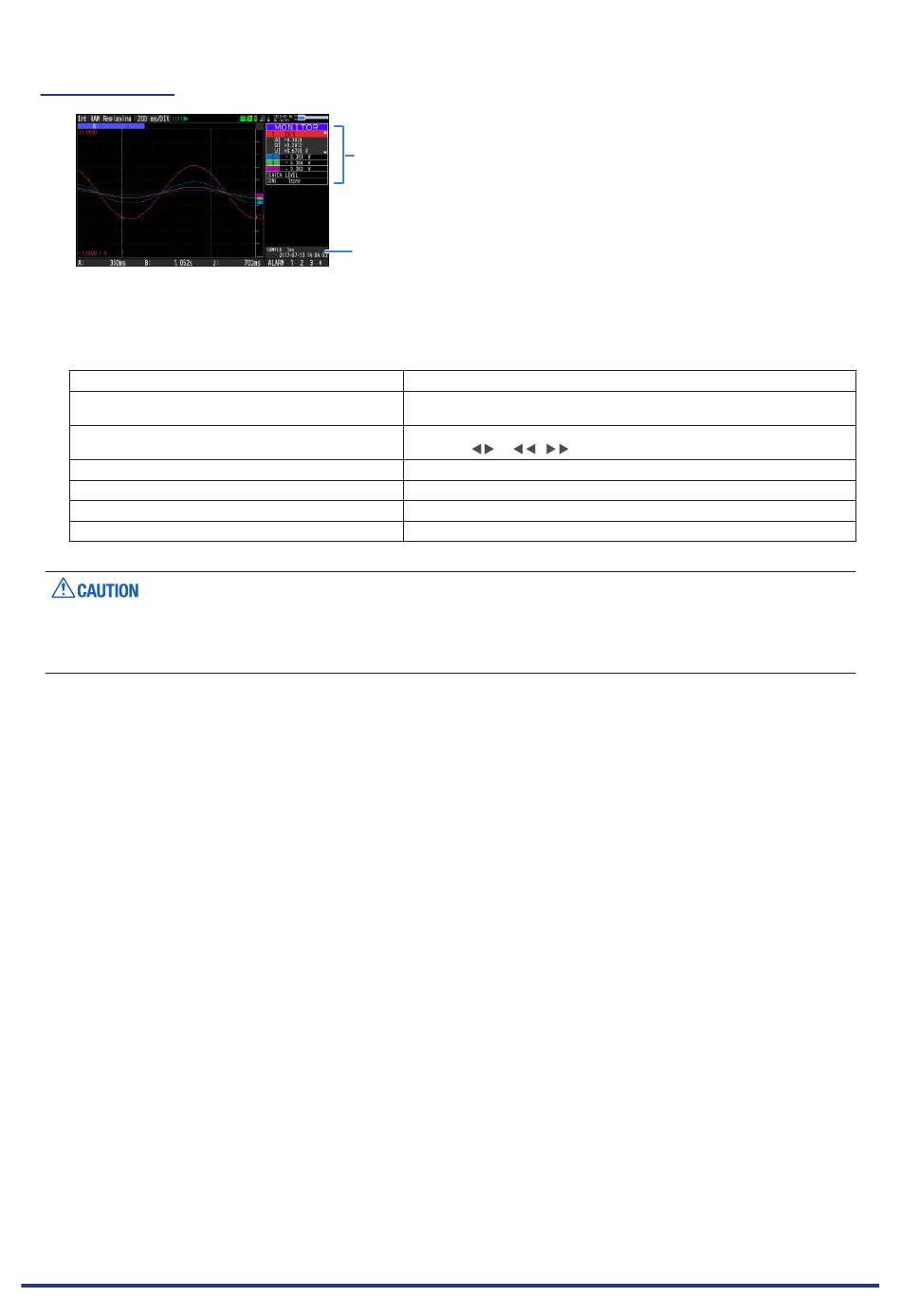

(4) Replaying
Displays the captured data.
Main operations available during replaying
SPAN/TRACE/POSITION change
Operation in the menu during data capture
Cursor movement
Data save
Time axis change
File operation
Display copy
For CSV-formatted data, only the data captured by the device can be replayed .
Also, when the data captured in CSV format is replayed, the unit of the temperature data is displayed as "deg
C" rather than "°C" .
Displays the voltage at a point
indicated by Cursor A or B or the
selected cursor .
Displays the measurement time at a
point indicated by Cursor A or B or the
selected cursor .
Change the settings with the [SPAN/TRACE/POSITION] key.
Perform cursor movement, data search and calculation setting with the
[MENU] key.
Switch between Cursor A and B with the [CURSOR] key.
Using the or
Save all the data or data between cursors withy the [FILE] key.
Change the time axis scale with the [TIME/DIV] key.
Perform file-related operations
Copy the screen with the [FILE] key.
CHAPTER 3 Settings and Measurement
,
keys, move the cursor.
