2.4 How to attach the tilt stand

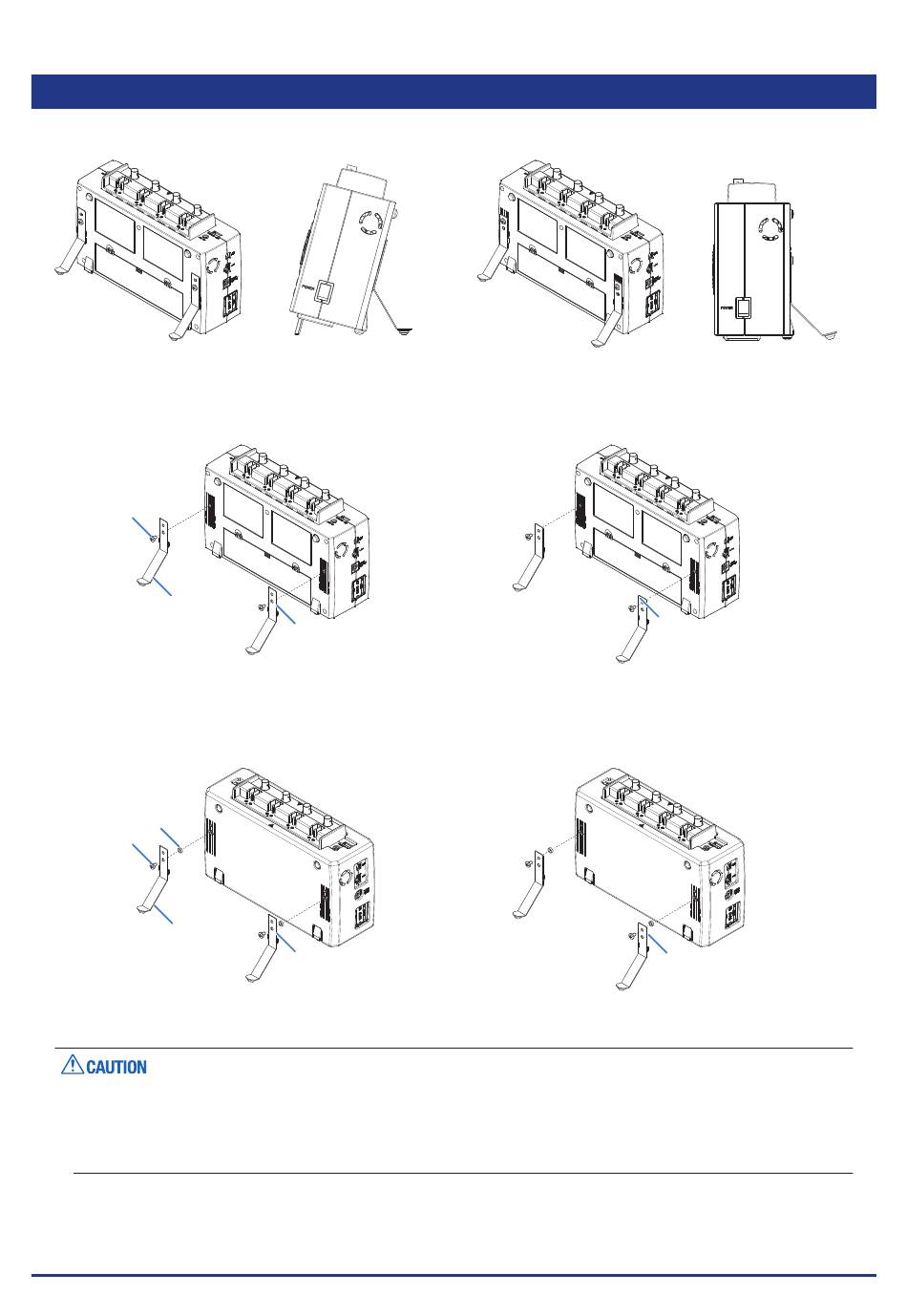

(1) Please pay attention to the mounting position and install the tilt foot.
•
Without Rubber Protector
M4 x5
Tilt stand
•
With Rubber Protector
Use M4x8 screw and spacer supplied with this device.
Spacer
M4 x 8
Tilt stand
•
To prevent possible malfunction, do not block the air vents of this device.
•
If you use this device in other position than described in the above, the measurement accuracy may not
meet the specifications.
•
To prevent possible falling, attach both tilt stand and tilt foot for this device.
2-4
When tilt foot is used
Fasten with a screw from the
lower hole.
When tilt foot is used
Fasten with a screw from the
lower hole.
When tilt foot is used
When tilt foot is not used
Fasten with a screw from the
upper hole.
When tilt foot is not used
Fasten with a screw from the
upper hole.
When tilt foot is not used
