GRAPHTEC midi LOGGER HV User Manual page 58

CHAPTER 3 Settings and Measurement

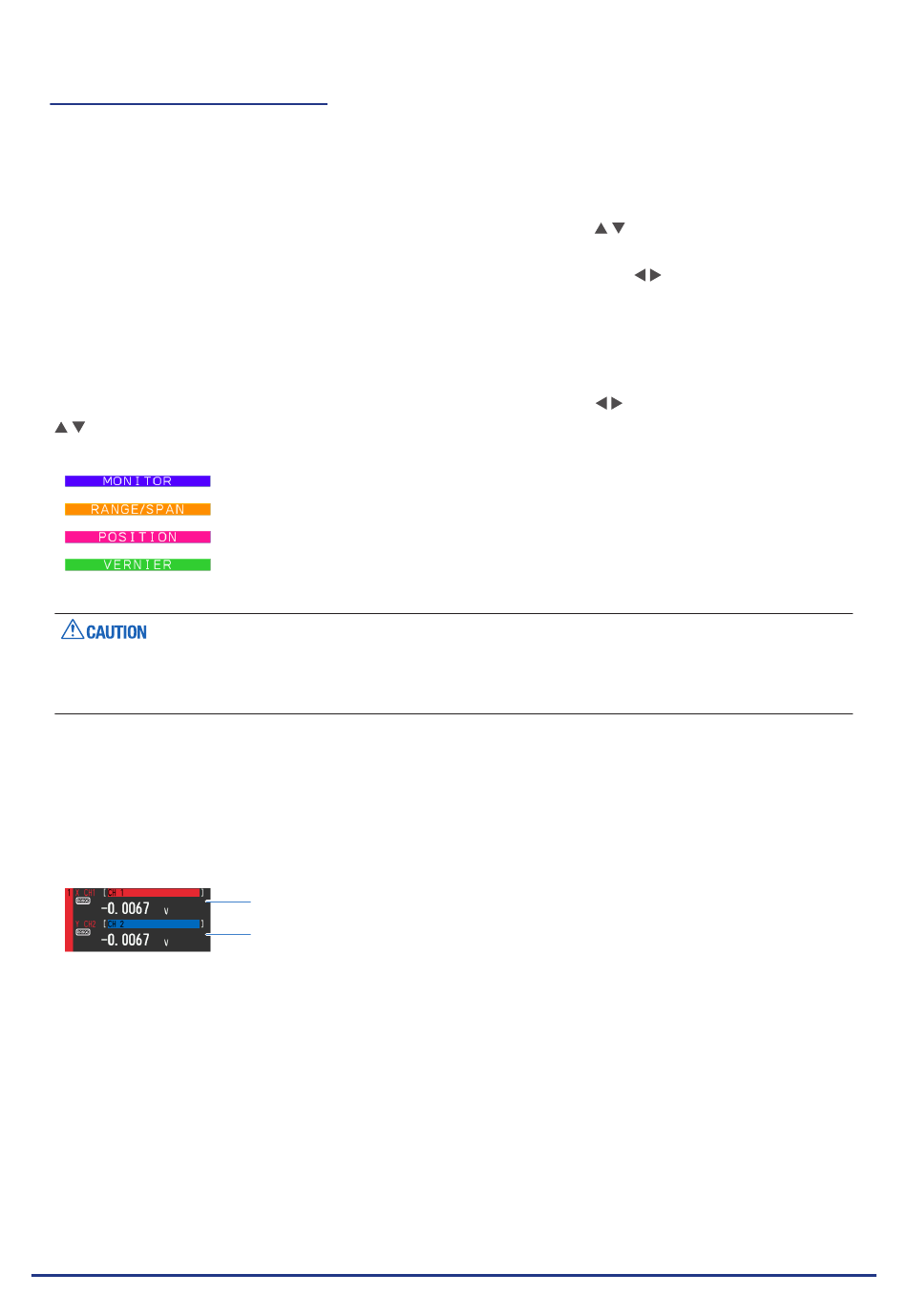

23. XY screen digital display
Displays the input value of CH set to XY-axis, /DIV display, Position, Vernier. To switch the screen use the
[SPAN/TRACE/POSITION] key.
L-R key mode:
Select the XY-CH and the axis to be activated (enlarged display) with the
addition, the waveform display of active XY-CH is shown at the top of the screen.
Change the settings of the selected axis of the selected active XY-CH with the
Cross key mode:
Select XY-CH to be active (enlarged display) with the [CH SELECT] key. In addition, for active XY-CH, the
waveform is shown at the top of the screen.
For the selected active XY-CH, change the settings of the X-axis with the
keys.
•
The settings of Range/Span, Position and Vernier belong to each analog CH.
•
When the same analog CH is assigned to another XY-CH, changing the setting of one XY-CH changes all
the XY-CH settings at the same time.
For details, refer to "3.2 Key Operation" - "(2) SPAN/TRACE/POSITION" and "3.3 Operation Modes" - "(3) XY
waveform display" - "XY digital display".
In XY-CH display, the contents of the X-axis (horizontal axis) are shown on the upper row and the contents
of the Y-axis (vertical axis) are at the lower row.
3-14
: Displays the input value.
: Changes the Range/Span of active XY-CH.
: Changes the Position of active XY-CH.
: Changes the Vernier of active XY-CH.
Contents of X-axis
Contents of Y-axis
keys or [CH SELECT] key. In
keys.
keys, and the Y-axis with the
