CHAPTER 2 Checks and Preparation

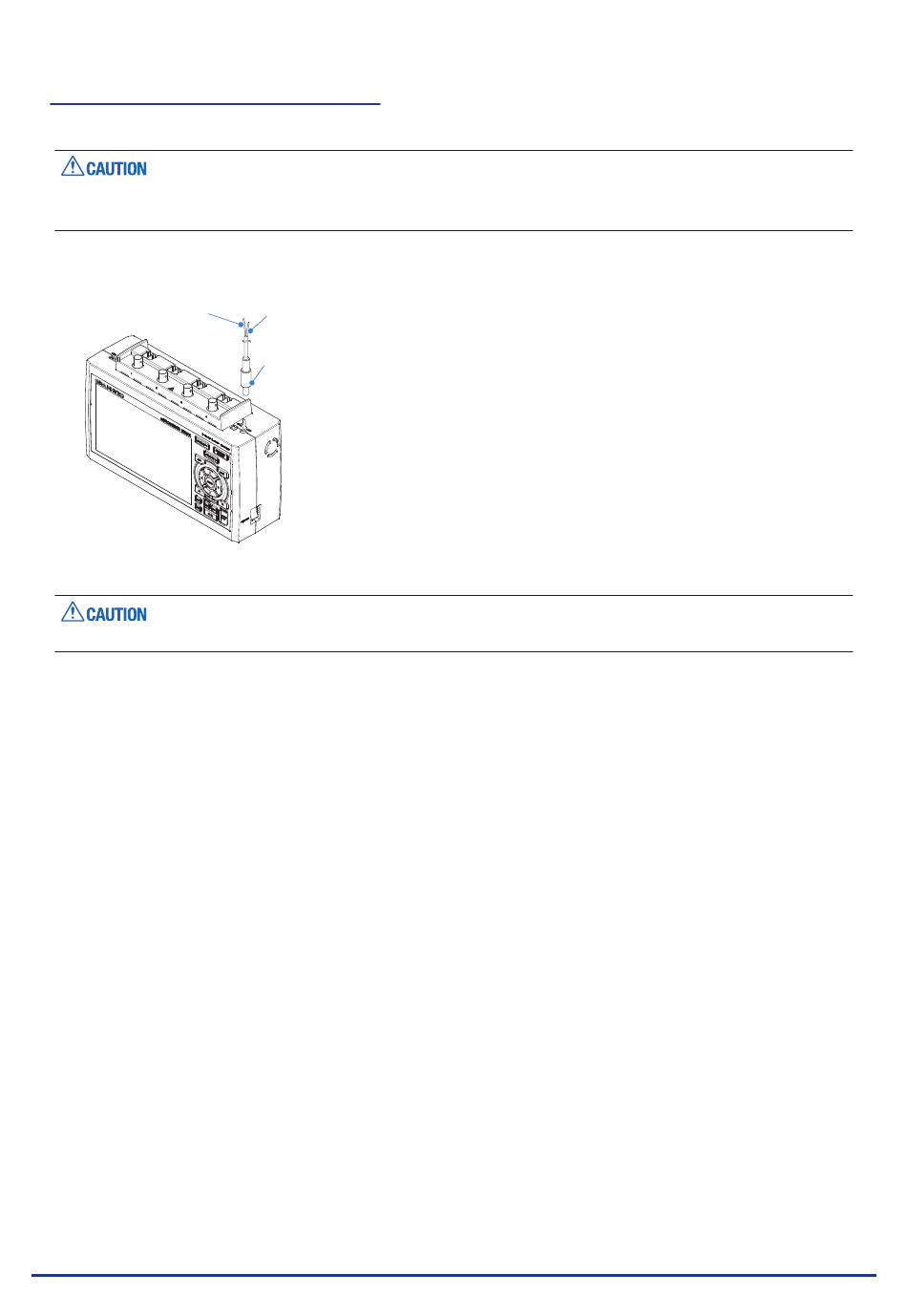

Connecting to a DC Power Supply
Use the DC drive cable (B-514: option).
•
Use a power supply within 8 .5 to 26 .4 VDC range .
•
For DC drive cable, please be sure to use B-514 power cable .
(1) Configure the tip of the DC drive cable (B-514: 2m) to connect to the DC power supply.
(2) Connect the DC output side to the power supply connector on this device.
White (+ side)
(3) Connect the DC input side to the DC power supply.
Be sure to check the polarity of the wire tips when performing wiring .
(4) Press the power switch to the ON position to start.
2-8
Shielded lead (- side)
DC drive cable
(B-514: Option)
