CHAPTER 3 Settings and Measurement

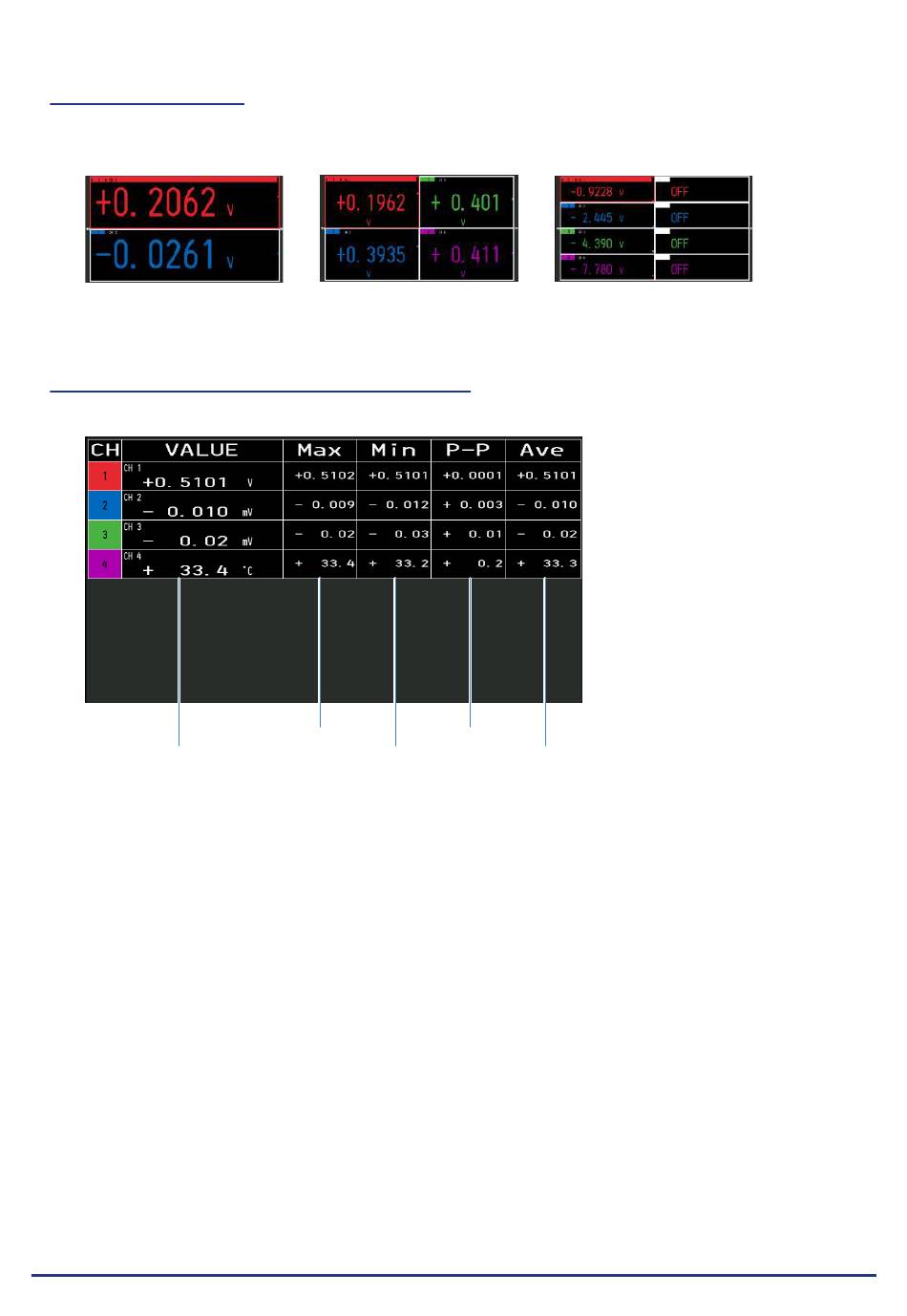

20 . Logging display
Displays the digital value of the input signal in large character.
The window can be divided into 2, 4 or 8 displays. Select from choices of analog CH, logic, or pulse CH.
2-divided
21 . Real time statistical calculations display
Displays the real time statistical calculation result (simultaneous display for 4 different calculations).
Real time value
3-12
4-divided
Maximum value P-P value
Minimum value
8-divided
Average value
