CHAPTER 3 Settings and Measurement

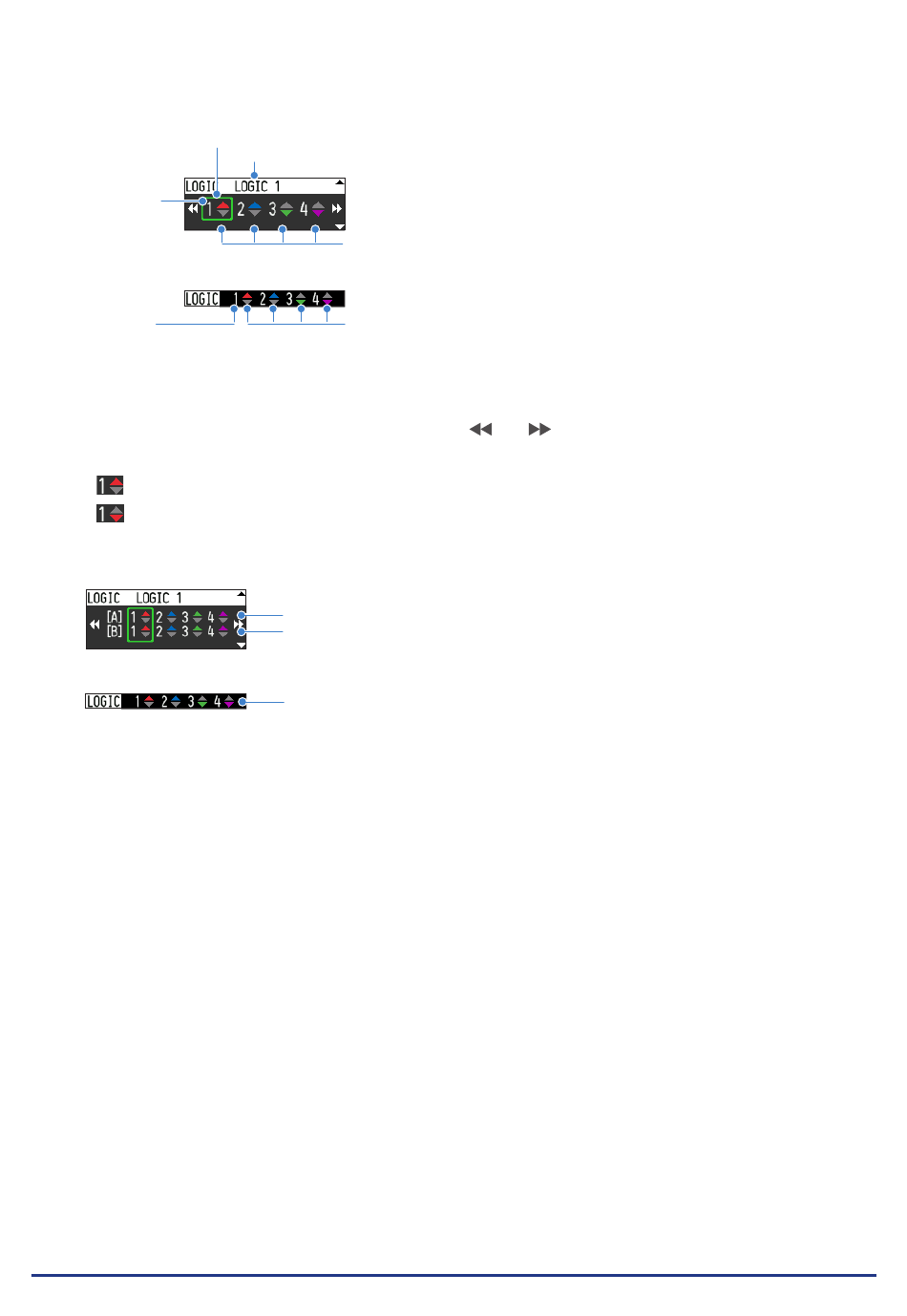

<Logic CH>
• During Free running/capturing
CH number
CH number
CH number
Logic annotation
Logic selection cursor : Select individual logic CH. Use
Measured value
• During replay
Active CH
Inactive CH
Cursor A measured value
Cursor B measured Value
Selected cursor measured value : The measured value of the data pointed to the current selected cursor is
3-34
Logic selection cursor
Logic annotation
Measured value
Active CH
Measured value
Inactive CH
: Logic CH number
: Annotation of the logic CH selected by the logic selection cursor is displayed.
: The measured value of the logic CH is displayed.
: High level
: Low level
Cursor A measured value
Cursor B measured value
Selected cursor measured value
: The measured value of the data pointed by cursor A is displayed.
: The measured value of the data pointed by cursor B is displayed.
displayed.
and keys to move on the logic CH.
