CHAPTER 3 Settings and Measurement
Thumbnail display

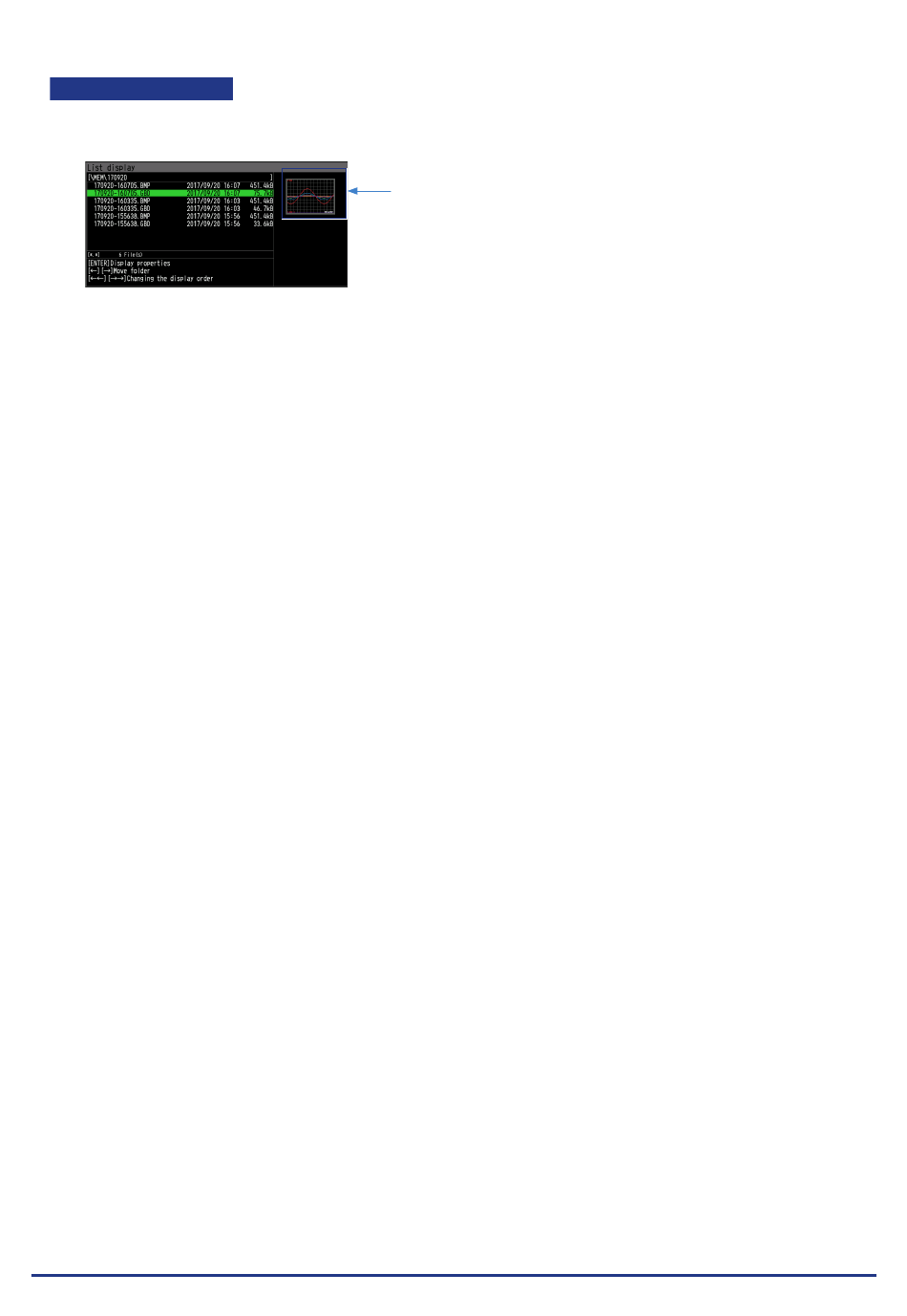

If there is a waveform screen data saved automatically when data is captured by this device, the waveform
screen data is displayed as a thumbnail when files are listed.
Thumbnail display
If there is a BMP file with the same file name as the data file, the thumbnail is displayed. (The image data for
thumbnail saved by this device are only supported.)
< Saving thumbnail images when data is captured >
When the data recording destination is the internal memory/SD card/USB memory, the screen copy of
the waveform screen displayed at the end of data capturing with the same file name as the data file is
performed.
When the recording destination is internal RAM, thumbnail files are not created.
In addition, as part of the ending process of the data capture, a copy of the waveform screen that is
displayed on the screen at this point is created. Therefore, depending on the sampling interval and Time/DIV
setting, it may not match the last waveform of the data file.
