CHAPTER 3 Settings and Measurement

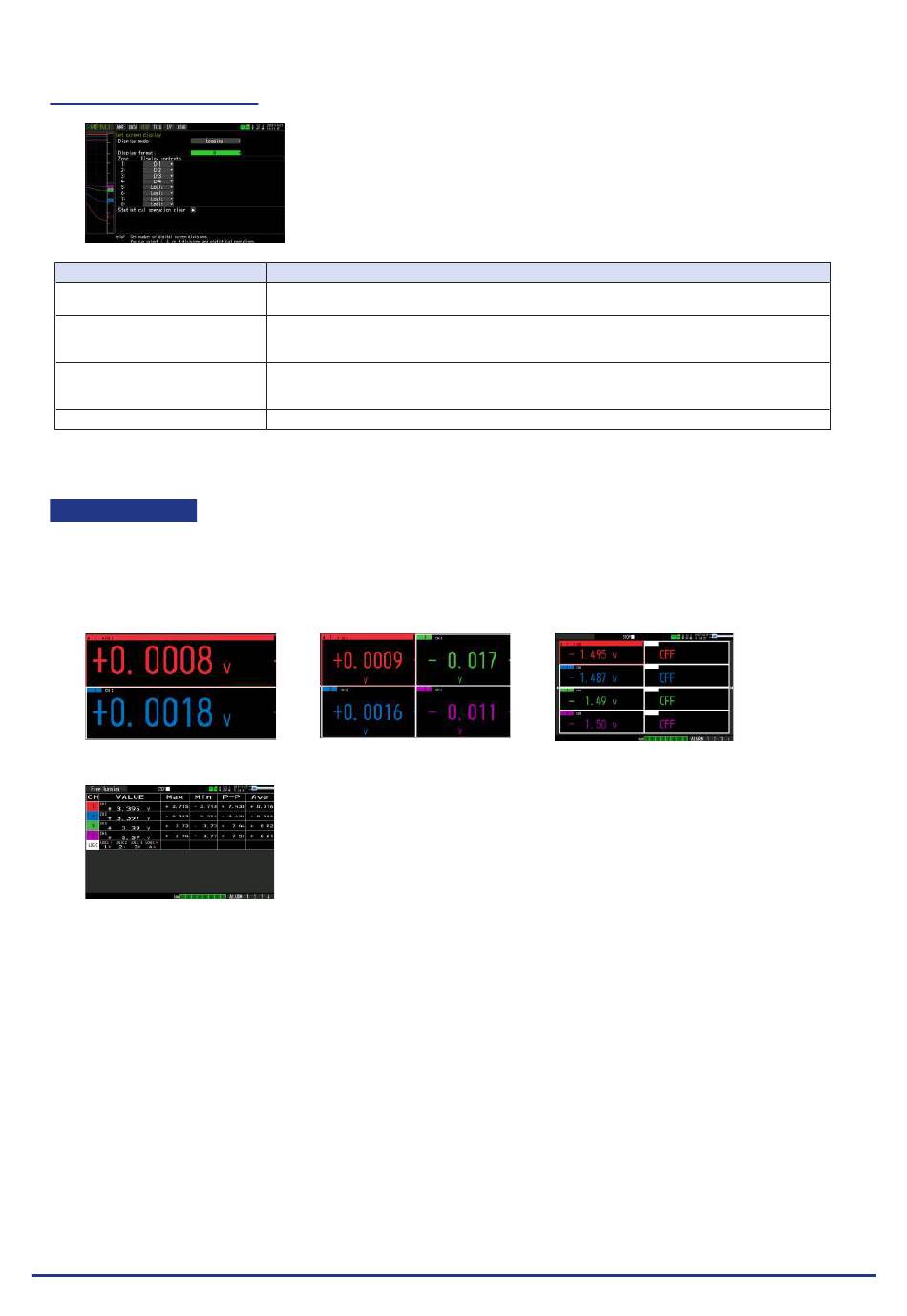

(3)-2 Logging display
Setting
Display mode
Display format
Display contents
Statistical operation clear
Display format
Set the display format of the logging screen.
When statistical calculation is selected, real time statistical calculation screen is displayed.
When other is selected, the logging screen is displayed.
< Logging screen >
< Real time statistical calculation screen >
3-86
Set the display mode of screen.
Y-T, Y-T (full screen), Logging, XY
Set the display format of the logging screen.
2-division, 4-division, 8-division, Statistical operation
* To select the real time statistics calculation screen, select the statistical operation.
Select the display contents of the logging screen.
Analog CH number can be selected.
When Logic or Pulse is selected, Logic/Pulse CH number can be selected.
Clear (initialize) real time statistical operation.
Description
