CHAPTER 3 Settings and Measurement
•
Relay Capture Function

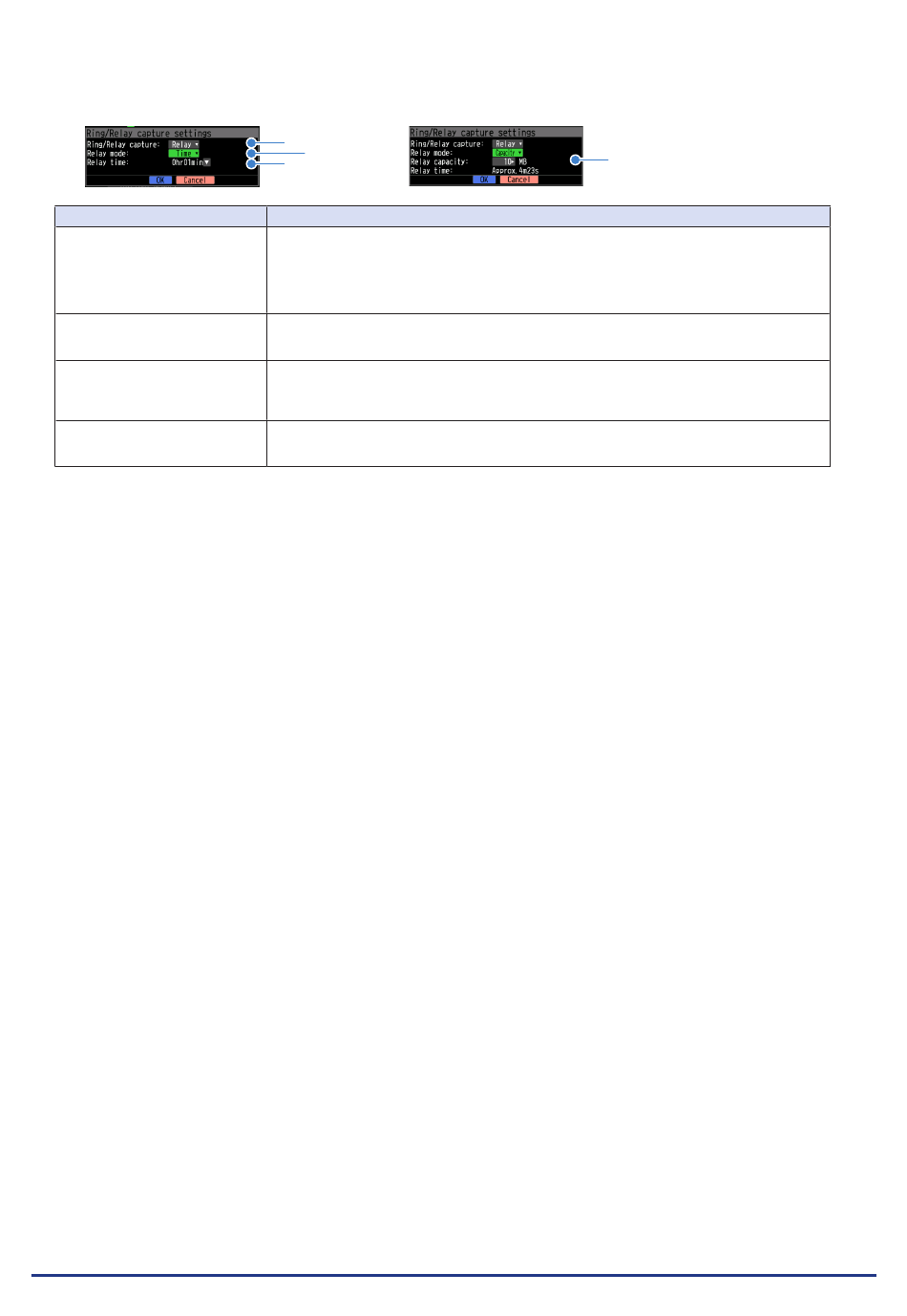

< Relay capture >
Setting
(1) Ring/Relay capture
(2) Relay mode
(3) Relay time
(4) Relay capacity
The recorded data is continuously captured by files separated in the set relay unit without losing data.
(The maximum capacity for a single file is 4GB.)
3-80
(1)
(2)
(3)
Set the capturing function.
off: Capturing function is not used.
Ring: Ring capture is performed. (For details, refer to the figure below.)
Relay: Data is captured consecutively for each file of up to 4GB continuously.
When the ring and relay functions are enabled,available sampling interval starts from 10 ms
when the CSV file format is set.
Set the mode for performing the relay processing.
Time: After the set time has elapsed, the relay processing is performed.
Capacity: When the file has reached the set file size, relay processing is performed.
Set the relay time when relay mode is set to "Time".
0 hour 1 minute to 24 hours 00 minutes
* If the file size reaches 4GB before the set time elapses, the relay processing is performed
even before the time elapses.
Set the file size when relay mode is set to "Capacity".
10MB to 4000MB
* Estimated time for capturing with the set file size is displayed as "Relay time".
(4)
Description
