(1)-9 Slope
To set the slope (direction) to count the number of pulses. This setting is available only if Pulse is selected in
(1)-6.
Selection item
H
L

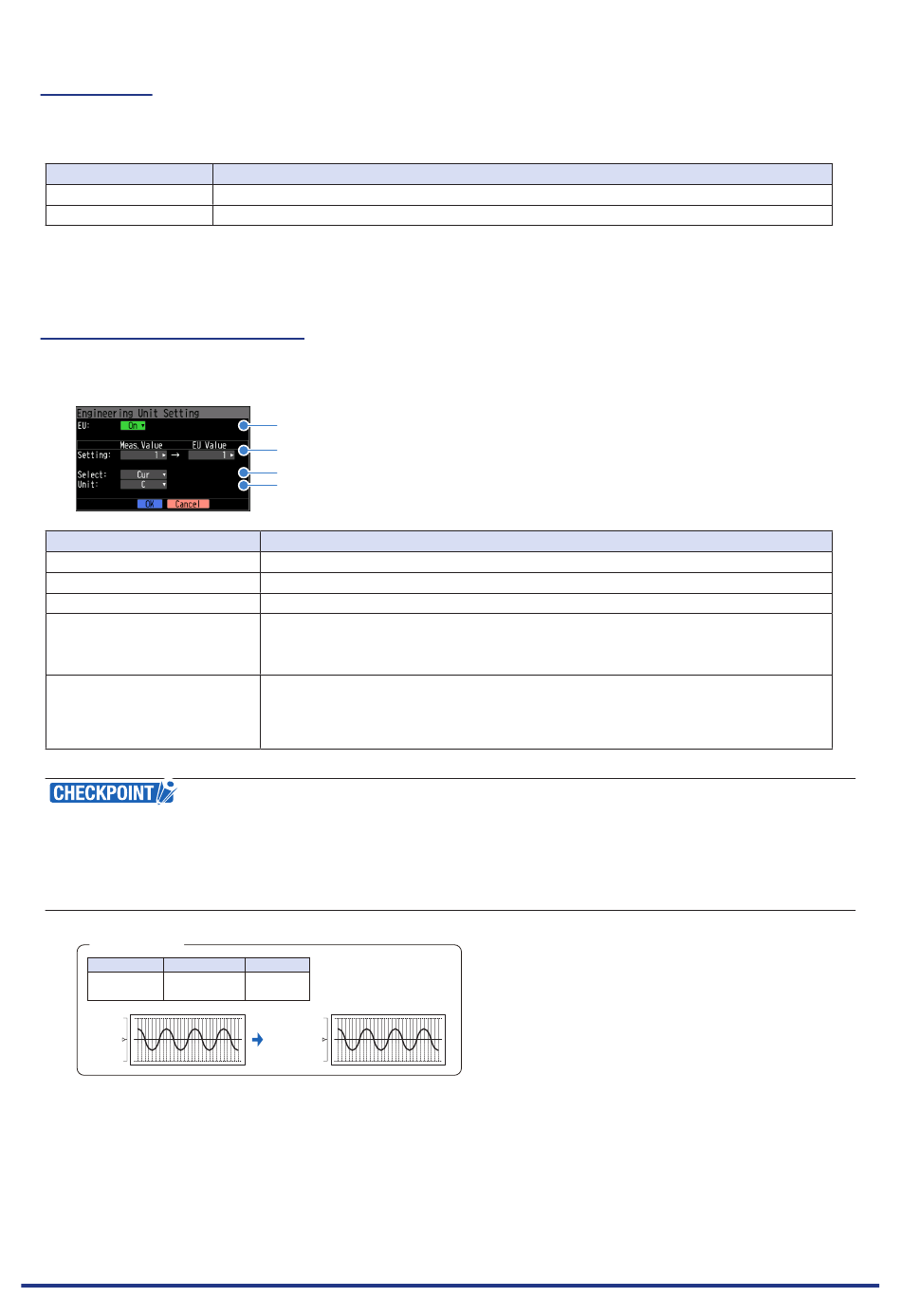

(1)-10 EU (scaling settings)
The measured signal is converted with the engineering unit. This item can be set only when pulse is selected
in (1)-6.
Setting
(1) EU
(2) Meas. Value
(3) EU Value
(4) Select
(5) Unit
•
If a message window opens, follow the instruction in the message to change the setting value .
•
The Scaling function performs calculation using a ratio of the Meas . Value and EU Output Value settings .
•
The digital display shows "++++/----" when the converted value cannot be processed by the device .
•
The span may vary depending on the scaling settings .
Setting example
Meas. Value EU Value
1000 800
1000
CH.1
0
Counts the rising edges of pulses.
Counts the falling edges of pulses.
(1)
(2) (3)
( 4 )
(5)
Set the scaling function to ON or OFF.
Set a value to be converted.
Set an output value after conversion.
Select a specific engineering unit classification. (The following are available.)
Cur, Length, Area, Volume, Velocity, Accel, Freq, Mass, Energy, Pressure, Flow, Temp,
Strain, Brightness, Concentration; Optional
You can enter arbitrary units by selecting Arbitrary.
Select a unit to be used after conversion.
A unit displayed in this field belongs to the classification selected in "Select".
To set a unit not displayed in this field, set arbitrary text in "Arbitrary unit". The setting
selected in this field is displayed in "Arbitrary unit". (Number of characters that can be
entered: Up to 8characters)
Unit
rpm
800
CH.1 Scaling 1
0
CHAPTER 3 Settings and Measurement
Description
Description
3-67
