CHAPTER 3 Settings and Measurement

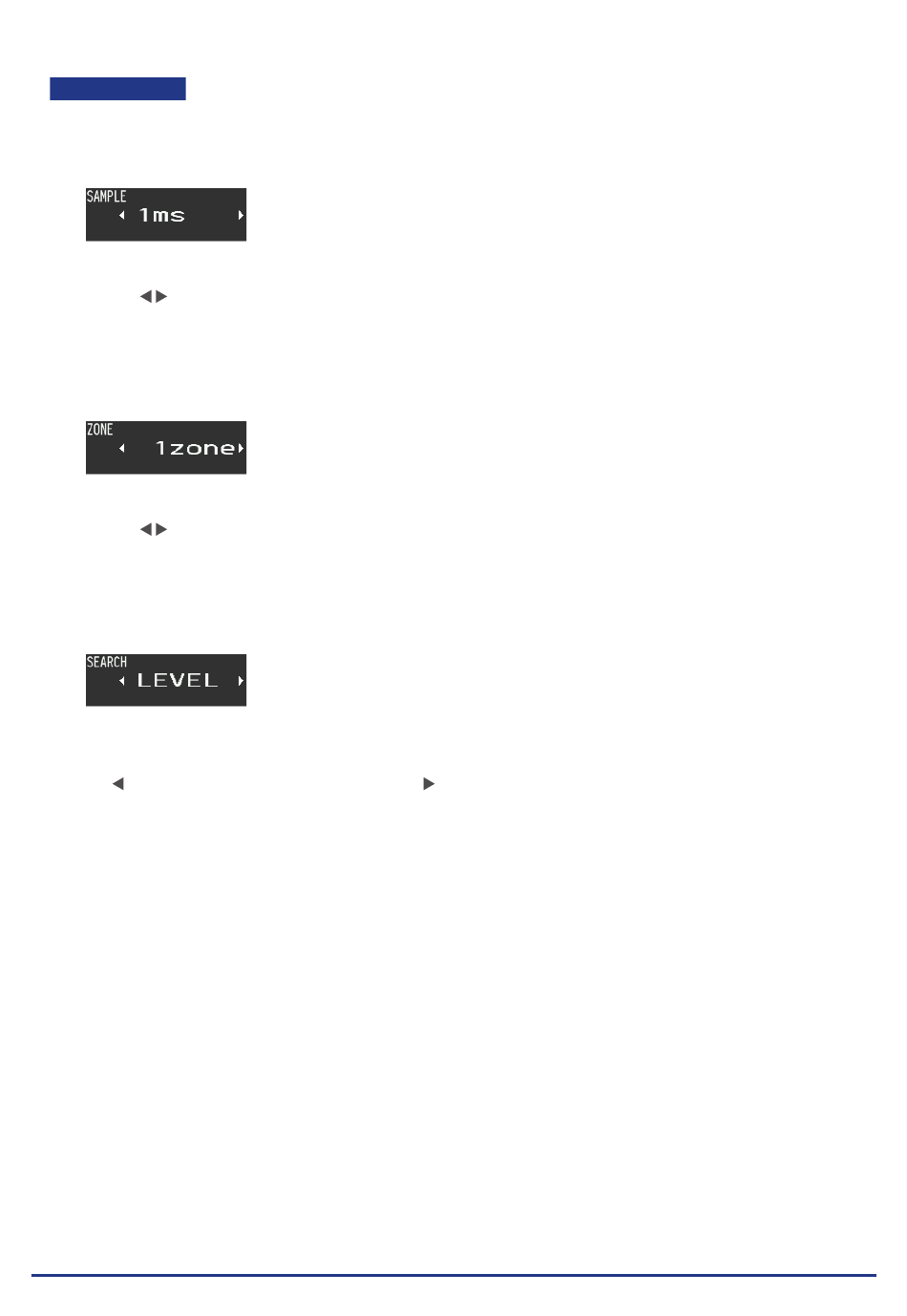

Quick setting
Quick setting is a function that you can perform the settings in the digital display without opening the setting
menu.
• Sampling interval (SAMPLE)
You can change the sampling interval setting.
Use the keys to change it. However, you can only change it only while Free running is executed. You
cannot change it during capturing. The sampling interval is not displayed during replaying.
When changing the sampling interval, the Time/DIV value may be changed depending on the limitation.
• Zone division (ZONE)
The number of zone divisions can be changed.
Use the keys to change setting. When changing the number of zone divisions, setting of CH
allocated to the zone is displayed.
You can change the number of zone divisions at any time.
• Search (SEARCH)
Performs waveform search according to the level search conditions set in the Data Replay menu during
replaying.
Use key to search the past data and use the
Before using this function, set the search level from the Data Replay menu.
3-36
key to search future data from the current set point.
