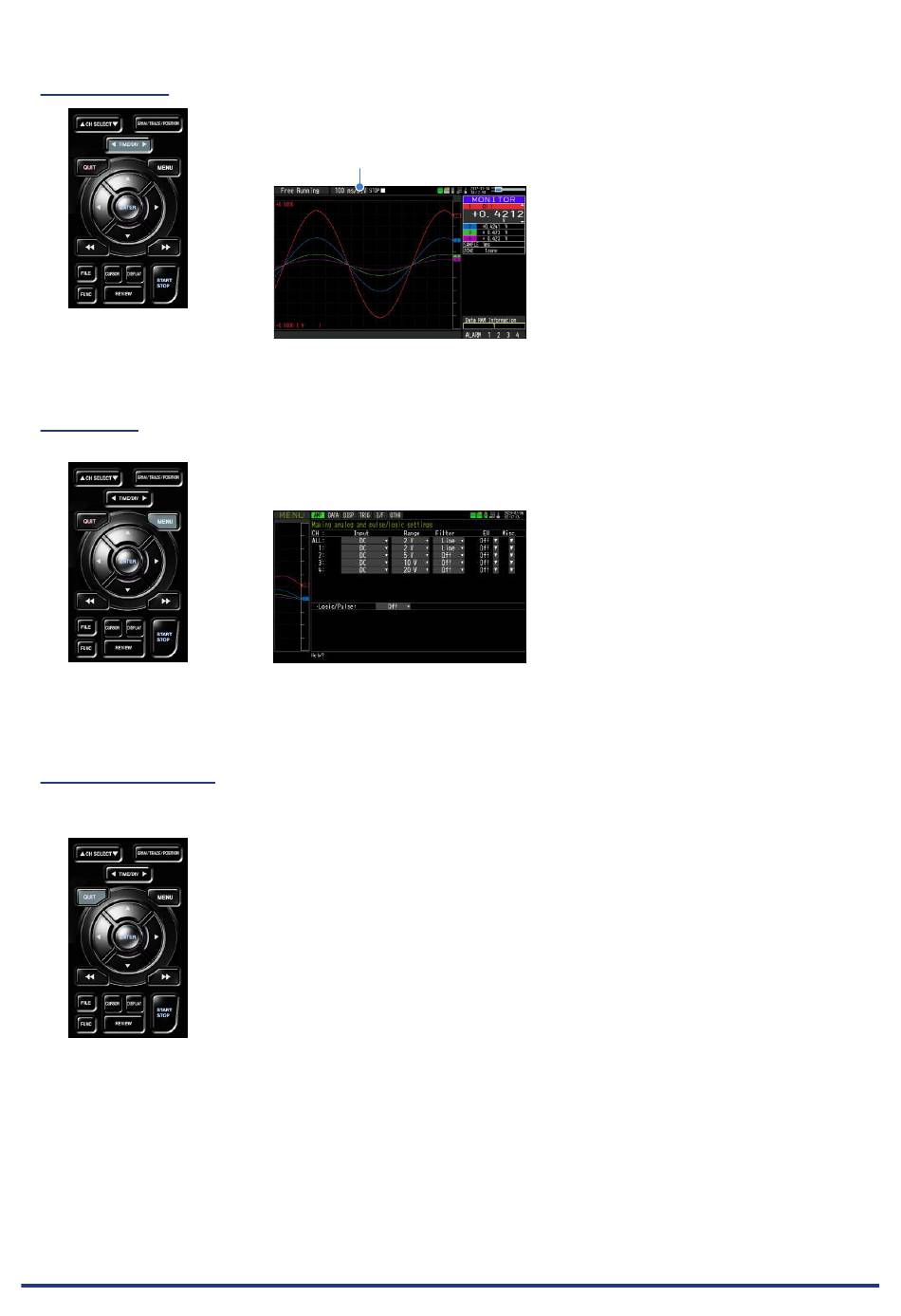

(3) TIME/DIV
(4) MENU
(5) QUIT (LOCAL)
Press the [TIME/DIV] key to change the time axis display width.
TIME/DIV display
Open the settings window to capture data. For details on settings, refer to "3.5
Setting Menus".
* For details of remote lock release function, refer to GL-Connection User's Manual.
This key is primarily used for the following operations.
• To cancel a setting during menu configuration.
• To return to the MONITOR screen when the SPAN/TRACE/POSITION screen
is displayed.
• To cancel remote status (When the keys are disabled) through interface
control.
• To close the menu screen.
• To quit data replay.
• To stop drawing the XY replay waveform.
• To clear the Real time statistical calculation. (during free running mode)
CHAPTER 3 Settings and Measurement
3-19
