22 . Pen status display
Displays the UP/DOWN status of the pen in the XY screen.
When recording starts, the display automatically puts the pen on DOWN status.

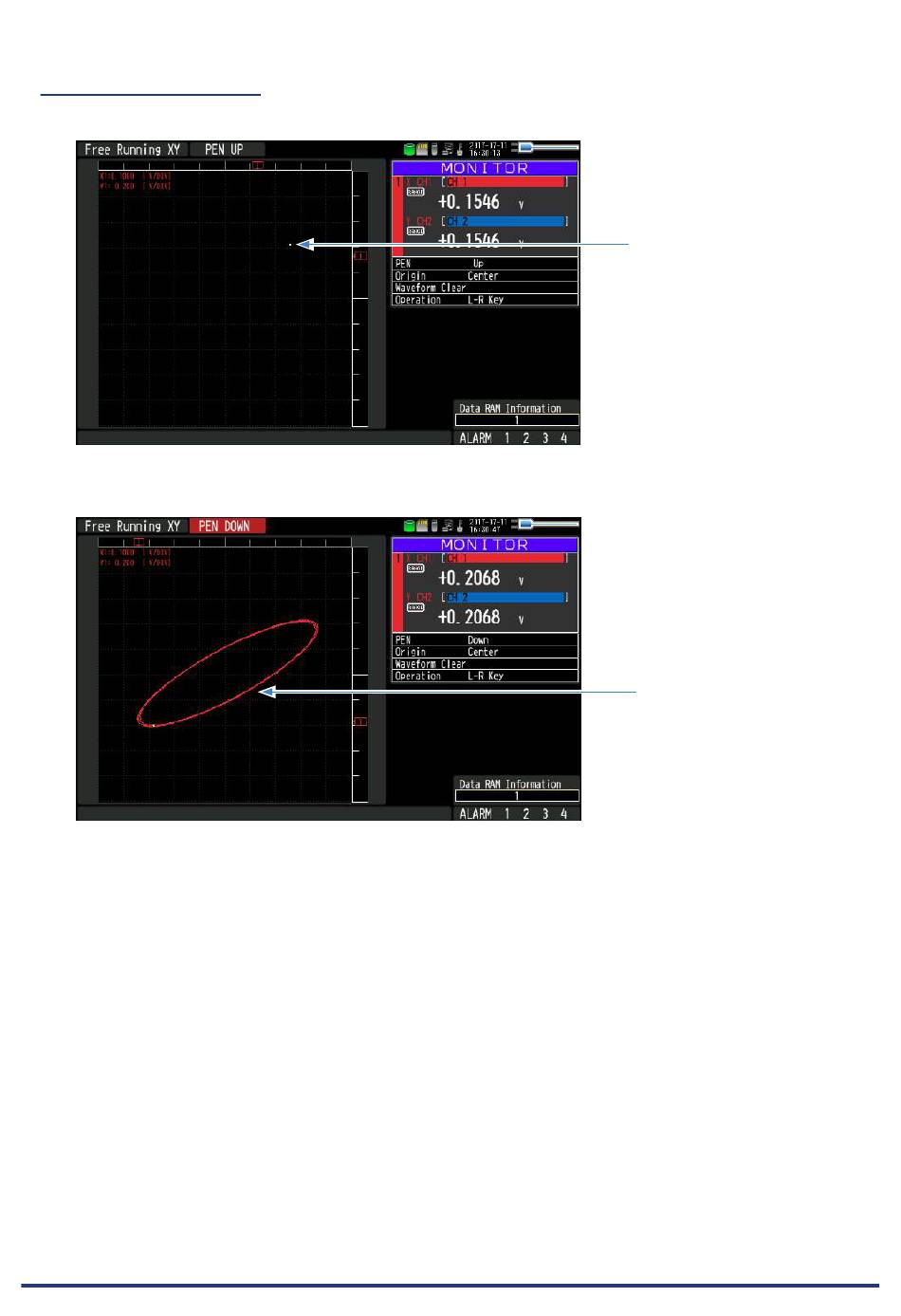

When pen is UP status
When pen is DOWN status
CHAPTER 3 Settings and Measurement
The current pen position is
drawn with a yellow dot .
The trajectory of the pen is
drawn with color used with
XY-CH .
