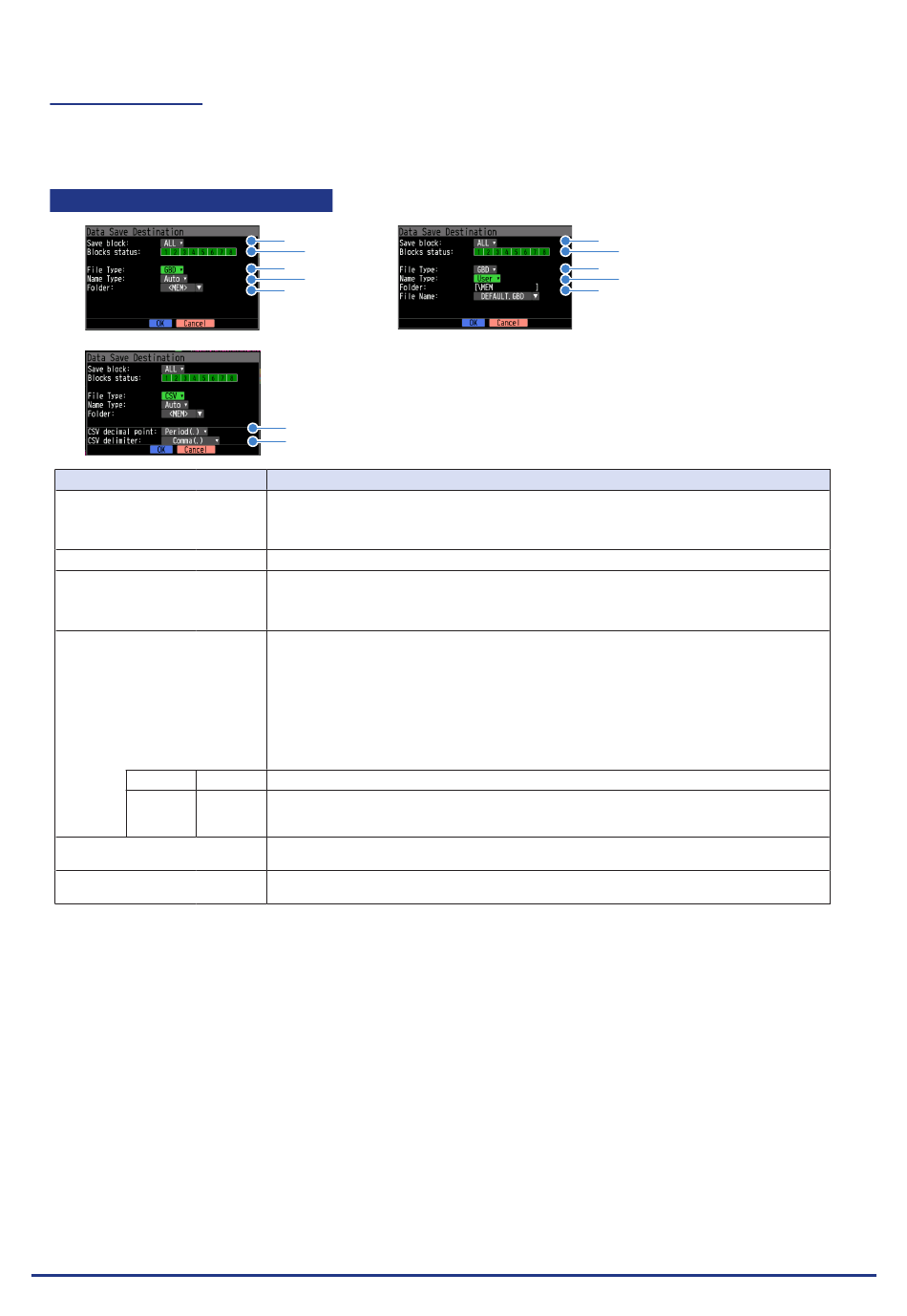

(7)-2 Data Save
Data in the internal RAM can be saved as well.
During data replay, you can save the data that is being replayed.
When saving in internal RAM
Setting
(1) Save block
(2) Blocks status
(3) File Type
(4) Name Type
[Auto]
[Arbitrary]
[Serial
number]
(6) CSV decimal point
(7) CSV delimiter
3-120
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Select the internal RAM block to be saved.
1 to 8, ALL
Numbers vary depending on the number of block divisions.
When ALL is selected, the block in which all the data exists is saved.
The status of the internal RAM is displayed.
Set the file format of data.
GBD: The data file is created in our own binary format.
* Data cannot be changed.
CSV: The data file is created in text format.
Set the naming method for the data file.
Auto: File name is appended automatically.
Example) 20170201-123456.GBD
Numbers part ..... Date and time when the file was created
GBD .................... Data format
Arbitrary: Data is captured with the file name you entered.
Serial number: File is created by indexing a serial number to the arbitrarily entered file name.
(5) Folder Set the folder of the save destination.
(5) Folder
Set the file name of the data.
File
The folder for saving the file is displayed in the Folder.
Set the decimal point character of the CSV file.
Period (.), Comma (,)
Set the delimiter of the CSV file.
Comma (,), Tab (Tab), Semicolon (;)
Description
* Example: 2017 year 2 month 1 day 12 hour 34 minute 56 second
GBD (binary data)
CSV (text format)
