2 . 1 3 Connecting the Humidity Sensor

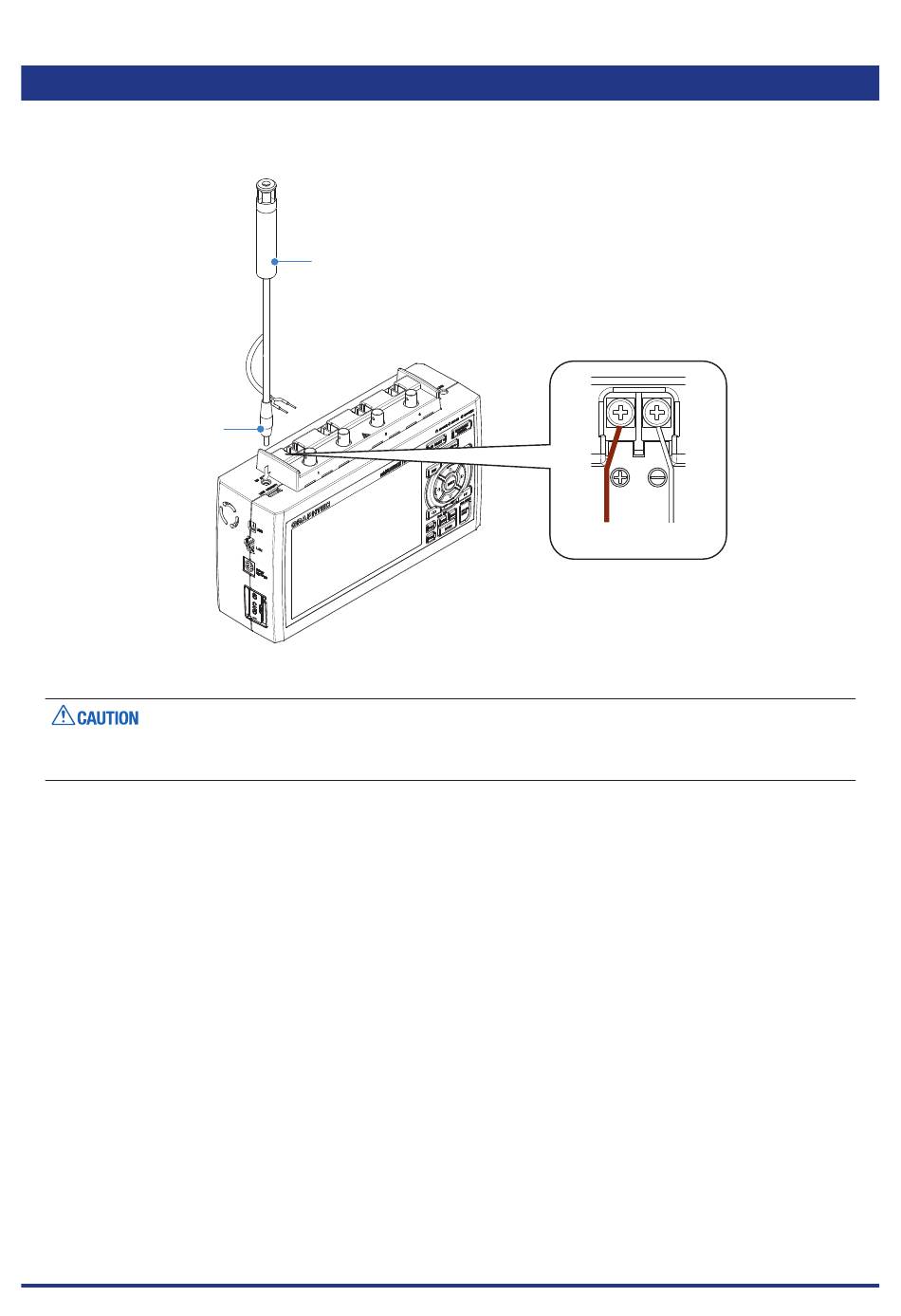

Connect the + and - lead wires of the humidity sensor (the B-530: Option) to the selected terminals, then
insert the round connector into the 5V OUT connector on this device.
Connected to the 5V
OUT connector .
•
Do not use the sensor in a strong electric field environment. Measured results may not satisfy as stated.
•
5V OUT connector on this device is available for only one humidity sensor .
Humidity sensor
(B-530: Option)
