UTM-1 Edge X and UTM-1 Edge W Installation

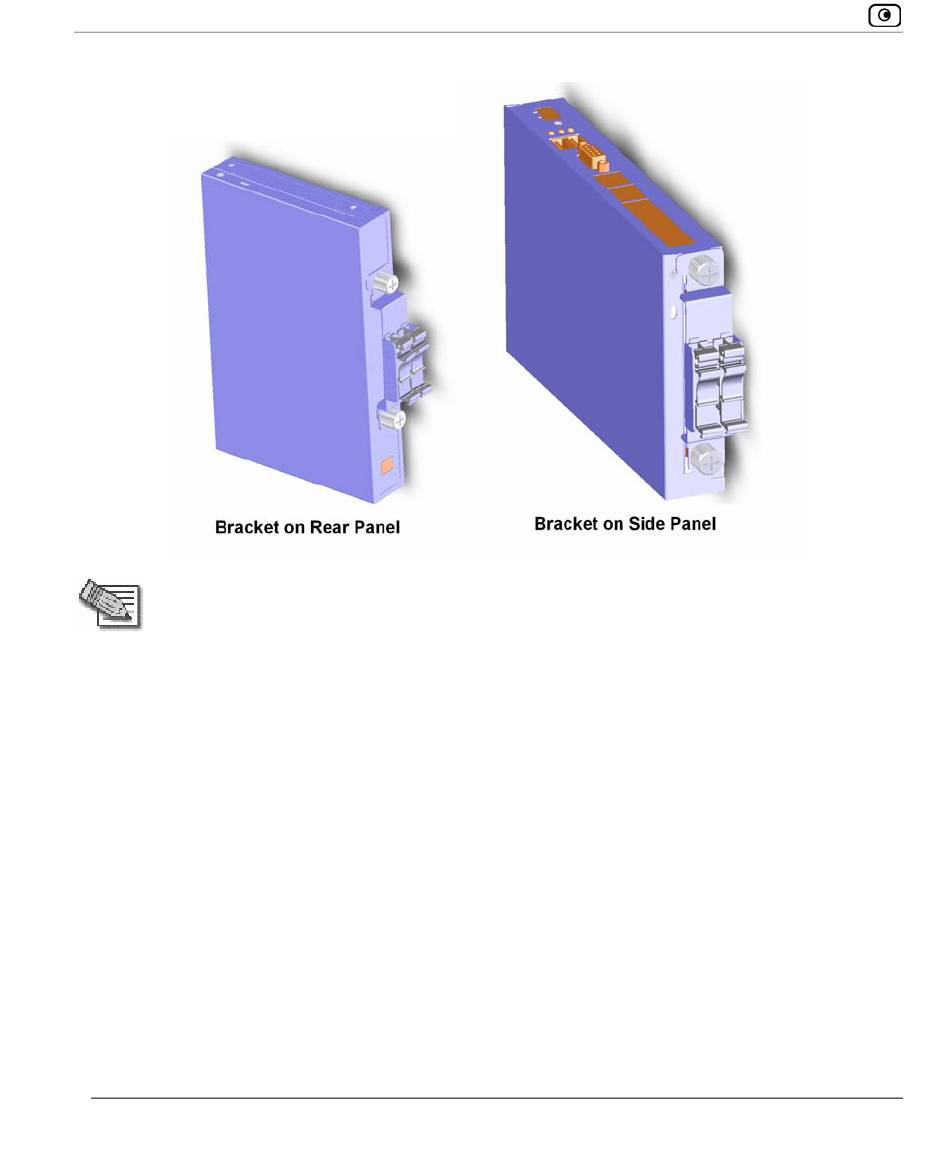

Note: To locate the appliance's right and left side panels, hold the appliance with its
front panel facing away from you. The side panel on your left is the appliance left side
panel, and the side panel on your right is the appliance's right side panel.
3. Tighten the DIN rail bracket's screws.
4. Fit the DIN rail bracket's lower groove onto the DIN rail at a slight angle.
5. Firmly push the appliance onto the DIN rail, until the DIN rail bracket's upper
groove snaps onto the DIN rail.
